UNI-T UTD2042C User Manual

7
9
Ƹ 

V namely pressure difference can be show
n
in cursor menu automaticall
y
Please refer to following figure for details
.
Note: Please set cursor type to time if onlyin
g
adopting the secondstep as above for time
measurement by cursor
.

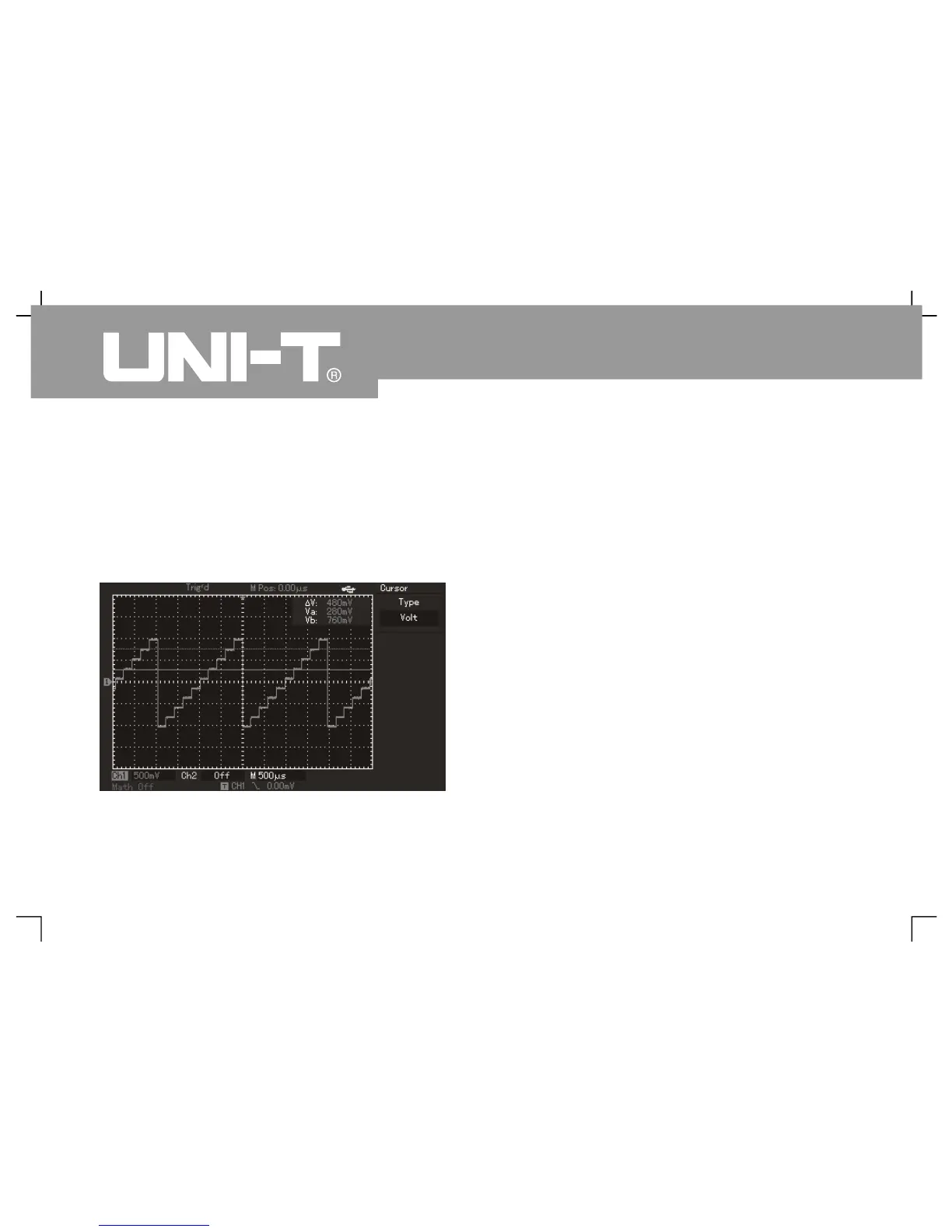

Figure 3-6 Voltage difference of signal by cursor
measurement
To review phase location difference of signals of
2
channels
.
Example: Phase location variation caused by 1
circuit for tested signals. Please connect digital
storage oscillograph to cir cuit to monitor
input/output signal of circuits. Please operate
according to following steps to review input/output
terminal of circuits by way of X-Y coordinate
diagram
.
1. To set probe menu attenuation coefficient to 10*
and s et switch on the probe to 10*
.
2. To connect CH1 probe to network input the
n
connect Ch2 probe to network output
.
3. To press CH1 and CH2 menu keys and open
2
channels if they have not been displayed
.
4. To press AUTO button
.
5. To adjust vertical scale knob for approximate
equivalent display amplitude of 2 loops of signals
.
The sixth example: Application of X-Y function
Oper ating Man ual for UTD2000/ 3000
