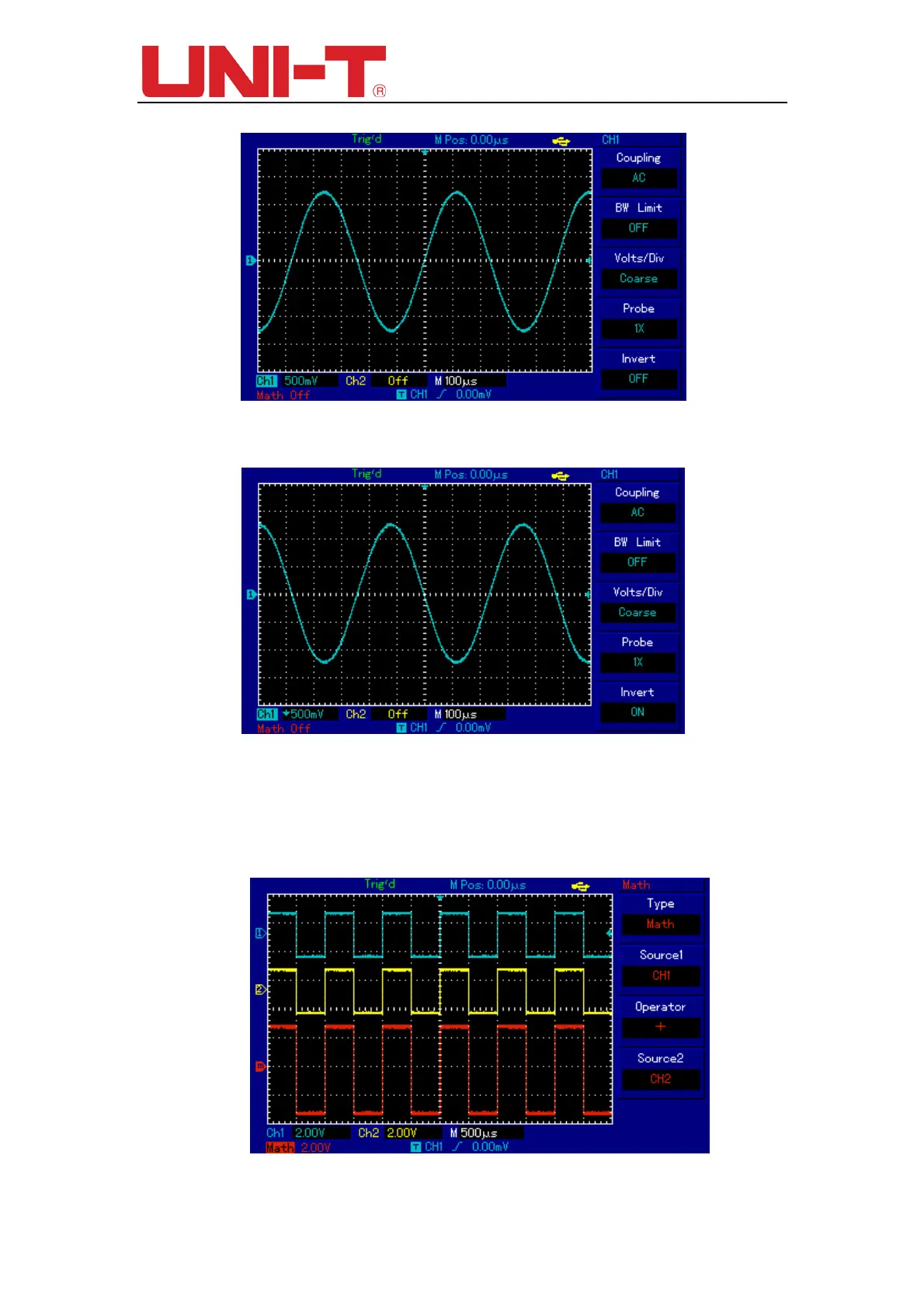

Figure 2-8 Vertical Channel Inverted Settings (Invert: OFF)
Figure 2-9 Vertical Channel Inverted Settings (Invert: ON)
2.6 Mathematical operation function
UTD2000 series DSO support mathematical operation function for the input signals.
Figure below show the match result for CH1 + CH2 as example.
Figure 2-10 Math Operation
