18
LINEAR LENGTH
DOUBLE Ø80
FROM
[m]
UP TO
[m]
0.5
(2)
25
(1) (5)

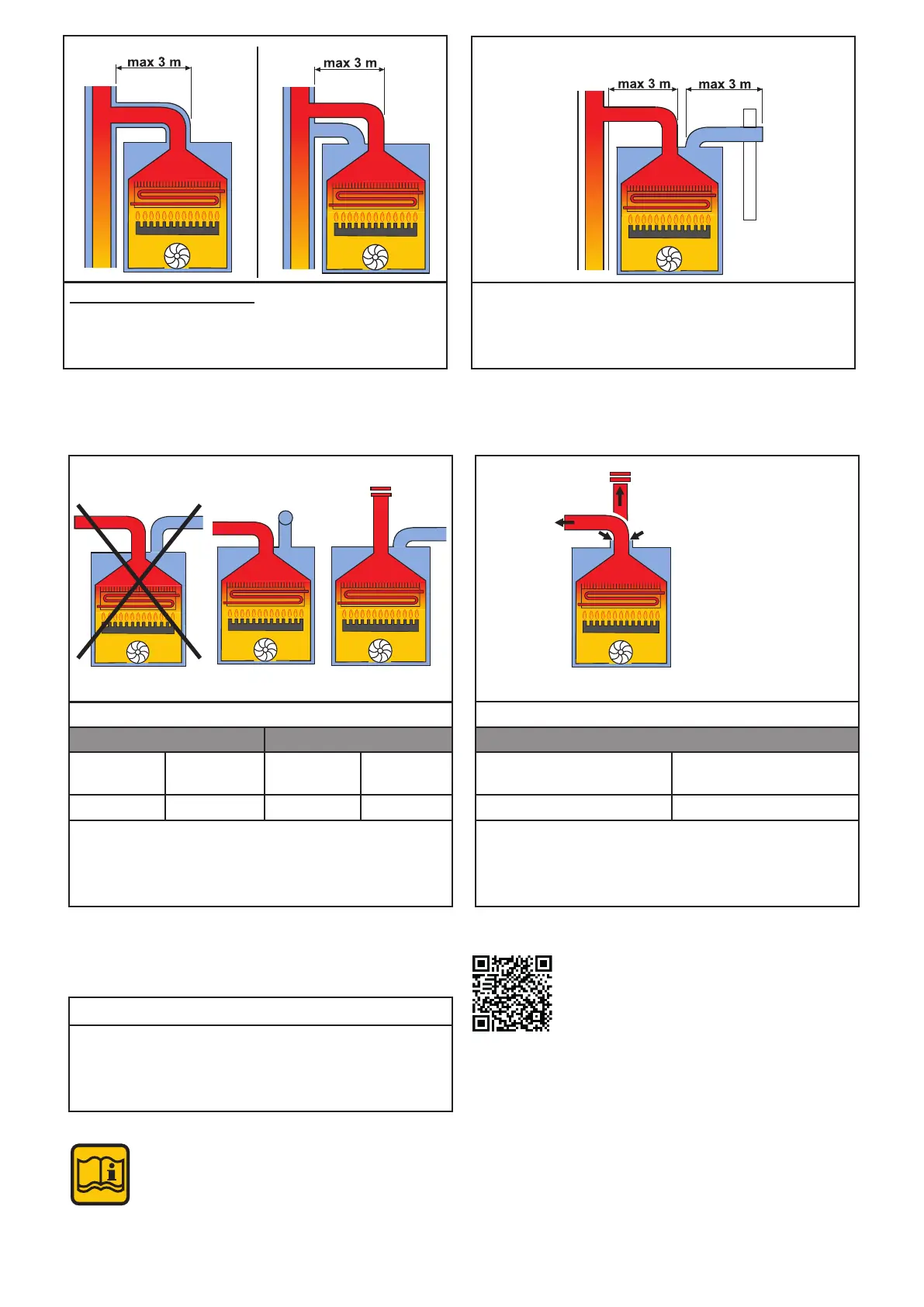

Connection to a combustion products evacuation
pipe outside the room; the combustion air is tak-
en directly from the room where the appliance is
installed.
LINEAR LENGTH
DOUBLE Ø80 DOUBLE Ø60
FROM
[m]
(2)
UP TO
[m]
FROM
[m]
(2)
UP TO
[m]
0.5 - 0.5 46
(1) (3)
0.5 - 0.5 29
(1) (4)
Separate combustion air intake and combustion
products evacuation pipes.
These pipes can discharge into areas with different
pressure.
C53
B23
ATTENTION:
The ue must comply with standards
in force.
C63
Boiler intended for connection to a combustion
air intake and combustion products evacuation
system, approved and sold separately.
ATTENTION
for this type of con-
nection the room
follows the same in-
stallation rules for
boilers with natural
draught.
NOTE!
Further details in the section
‘Technical Information’’ on the
boiler page of the www.unicalag.it
website
Collective chimney ue system, consisting of two
pipes, one for combustion air intake and the other
one for combustion products evacuation, coaxial
or double.
C43
Connection to a terminal for combustion air intake
and ue gas exhaust via a single or collective
chimney.
C83
