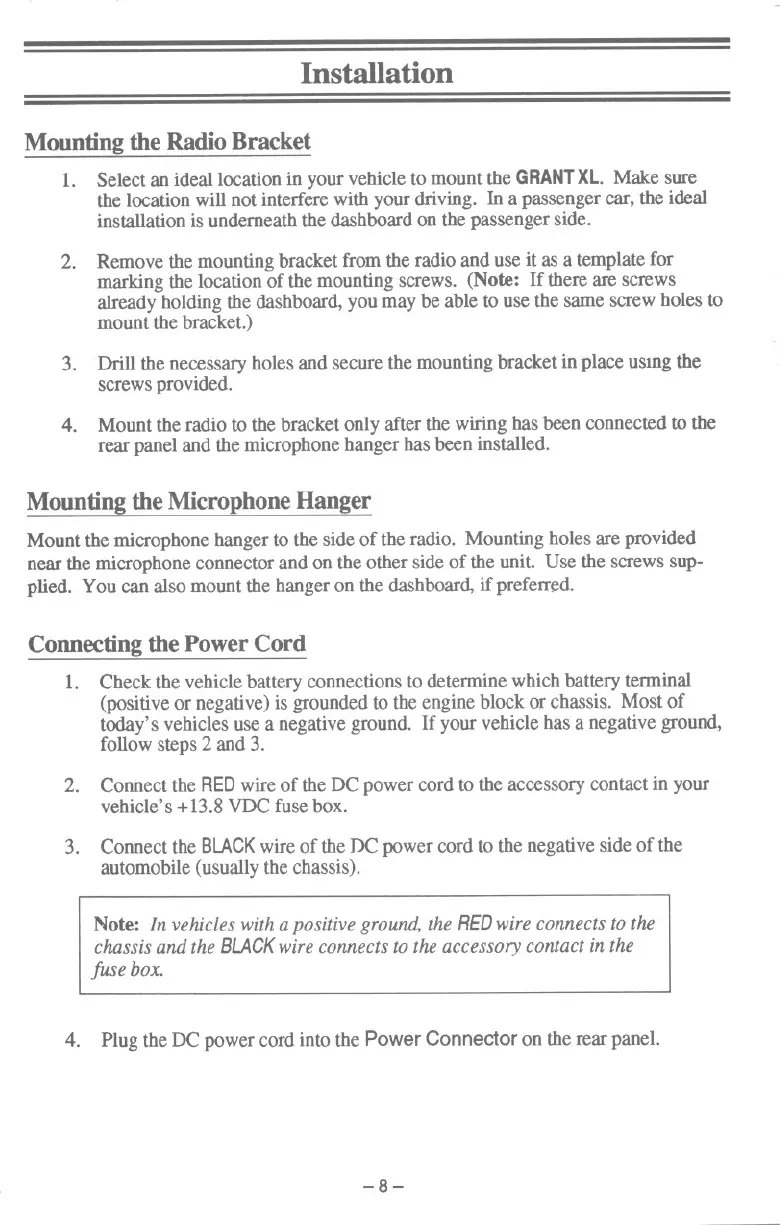

Installation
Mounting the Radio Bracket
1. Select an ideal location in your vehicle to mount the GRANTXL. Make sure
the location will not interfere with your driving. In a passenger car, the ideal
installation is underneath the dashboard on the passenger side.
2. Remove the mounting bracket from the radio and use it as a template for
marking the location of the mounting screws. (Note: If there are screws
already holding the dashboard, you may be able to use the same screw holes to
mount the bracket.)
3. Drill the necessary holes and secure the mounting bracket in place usmg the
screwsprovided.
4. Mount the radio to thebracket only after the wiring has been connected to the
rear panel and the microphone hanger has been installed.
Mounting theMicrophoneHanger
Mount the microphone hanger to the side of the radio. Mounting holes are provided
near the microphone connector and on the other side of the unit. Use the screws sup-
plied. You can also mount the hanger on the dashboard, if preferred.
Connectingthe PowerCord
1. Check the vehicle battery connections to detennine which battery tenninal
(positive or negative) is grounded to the engine block or chassis. Most of
today's vehicles use a negative ground. If your vehicle has a negative ground,
follow steps 2 and 3.
2. Connect the REDwire of the DC power cord to the accessory contact in your
vehicle's +13.8 VDC fuse box.
3. Connectthe BLACKwire of the DC power cord to the negative sideof the
automobile (usually the chassis).
Note: In vehicles with a positive ground, the RED wire connects to the
chassis and the BLACKwire connects to the accessory contact in the
fuse box.
4. Plug the DC power cord into the Power Connector on the rear panel.
-8-
--
