Uniden GRANT XL User Manual

I
-.= ~
-
-..-

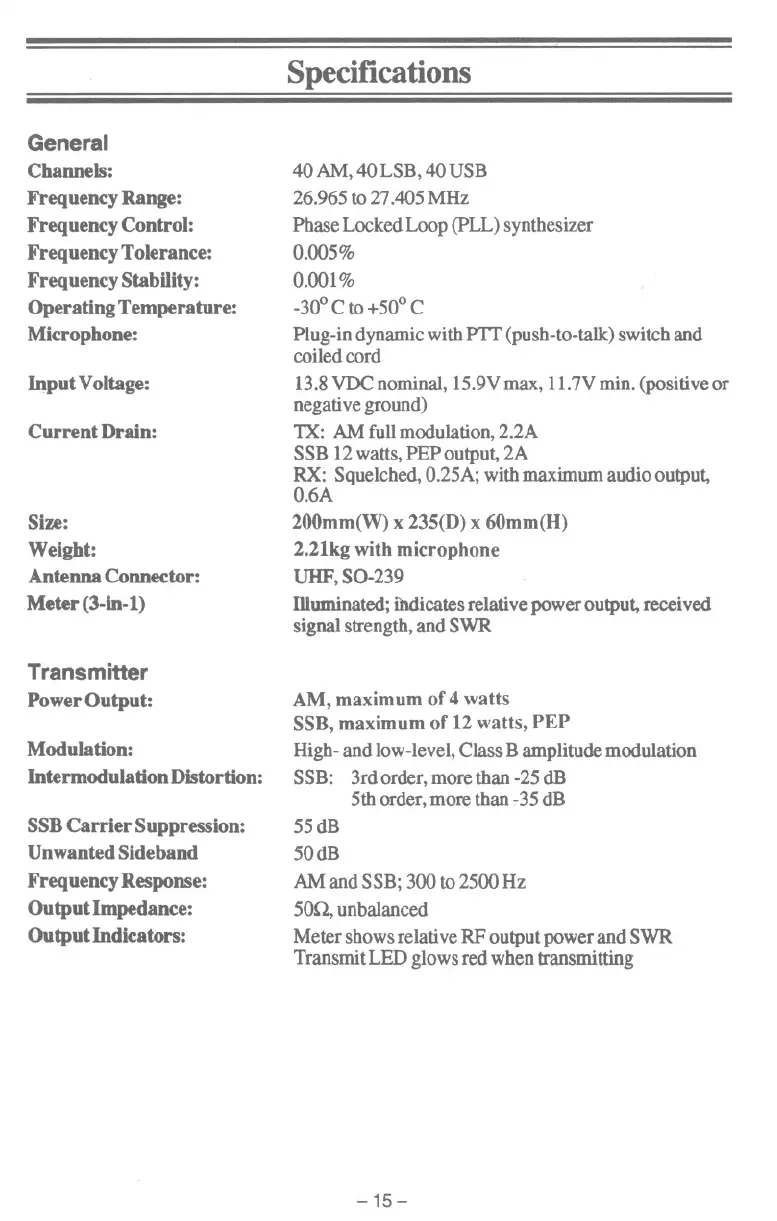

Specifications
40 AM, 40 LSB, 40 USB
26.965 to 27.405 MHz
Phase Locked Loop (PLL) synthesizer
0.005%
0.001%
-300Cto+500C
Plug-indynamicwithPIT (push-to-talk)switchand
coiledcord
13.8VDCnominal, 15.9Vmax, 11.7Vmin. (positiveor
negativeground)
TX: AM fullmodulation, 2.2A
SSB 12watts,PEP output, 2A
RX: Squelched,0.25A;with maximumaudio output,
0.6A
200mm(W) x 235(D) x 60mm(H)
2.21kg with microphone
UHF, SO-239
muminated; indicatesrelative poweroutput, received
signalstrength,and SWR
AM, maximum of 4 watts
SSB, maximum of 12 watts, PEP
High-and low-level,ClassB amplitudemodulation
SSB: 3rd order, more than -25dB
5thorder, morethan~35dB
55dB
50dB
AM and SSB; 300 to 2500 Hz
50Q, unbalanced
Meter shows relative RP output power and SWR
Transmit LED glows red when transmitting
-15-
General
Channels:
Frequency Range:
Frequency Control:
Frequency Tolerance:
FrequencyStabUky:
Operating Temperature:
Microphone:
In.put Voltage:
Current Drain:
Size:
Weight:
AntennaConnector:
Meter(3.in.l)
Transmitter
Power Output:
Modulation:
IntermodulationDistortion:
SSBCarrier Suppression:
Unwanted Sideband
Frequency Response:
Output Impedance:
Output Indicators:

Uniden GRANT XL Specifications

General

Channels	40
Receiver Sensitivity	0.5 μV for 10 dB S/N
Image Rejection	60 dB
Spurious Response Rejection	60 dB
Antenna Impedance	50 ohms
Power Supply	13.8 V DC
Type	Citizen Band Transceiver
Frequency Range	26.965 MHz - 27.405 MHz
Power Output	4 Watts
Modes	AM
Microphone	Dynamic Microphone
Modulation Type	AM
