Uniden GRANT XL User Manual

I'
---=0

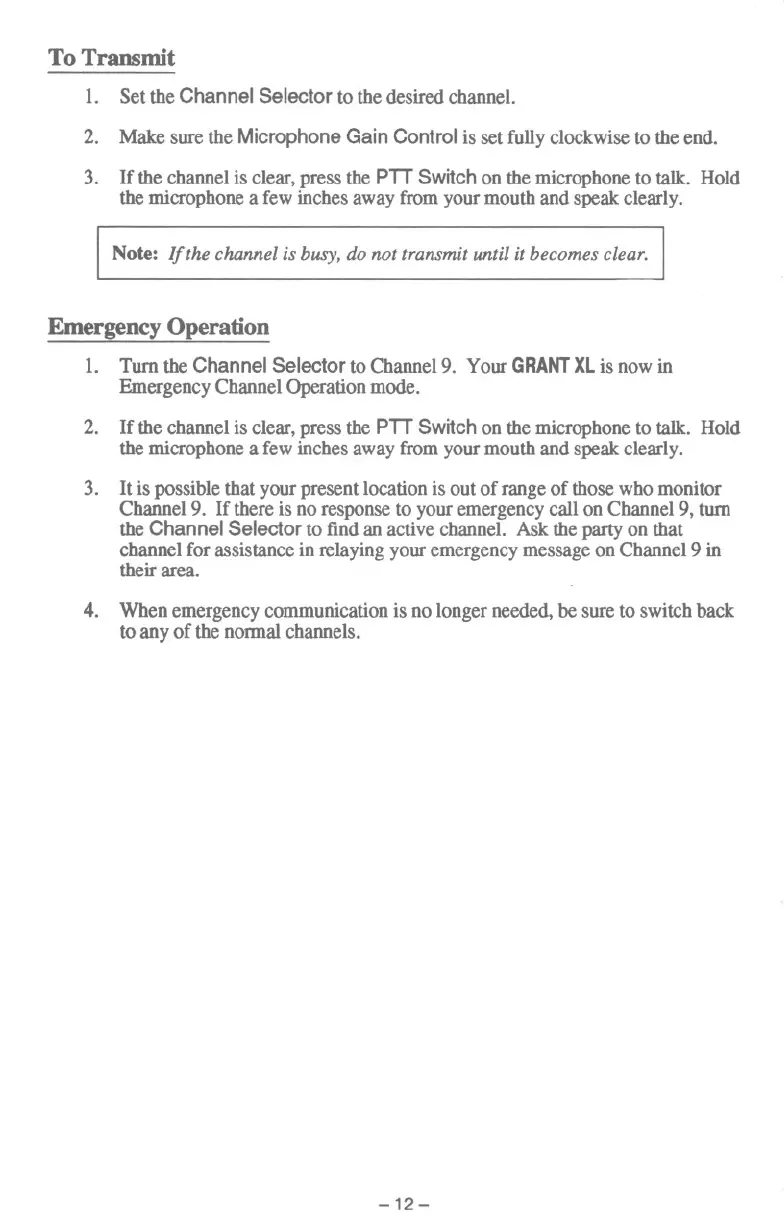

To Transmit
1. Set the Channel Selector to the desired channel.
2. Make surethe Microphone Gain Control is setfully clockwise to the end.
3. If the channel is clear, press the PTT Switch on the microphone to talk. Hold
the microphone a few inchesaway from your mouth and speakclearly.
Note: If the channel is busy, do not transmit until it becomes clear.
Emergency Operation
1. Turn the Channel Selector to Channel 9. Your GRANTXL is now in
Emergency Channel Operation mode.
2. If the channel is clear, pressthe PTT Switch on the microphone to talk. Hold
the microphone a few inchesaway from your mouth and speakclearly.
3. It is possible that your
present location is out of range of those whomonitor
Channel 9. If there is no response to your emergency call on Channel 9, turn
the Channel Selector to find an active channel. Ask the party on that
channel
for assistance in relaying your emergency message on Channel 9 in
theirarea.
4. When emergency communication is no longer needed, be sure to switch back
to any of the nonnal channels.
-
T-
t
-12-
-

Uniden GRANT XL Specifications

General

Channels	40
Receiver Sensitivity	0.5 μV for 10 dB S/N
Image Rejection	60 dB
Spurious Response Rejection	60 dB
Antenna Impedance	50 ohms
Power Supply	13.8 V DC
Type	Citizen Band Transceiver
Frequency Range	26.965 MHz - 27.405 MHz
Power Output	4 Watts
Modes	AM
Microphone	Dynamic Microphone
Modulation Type	AM
