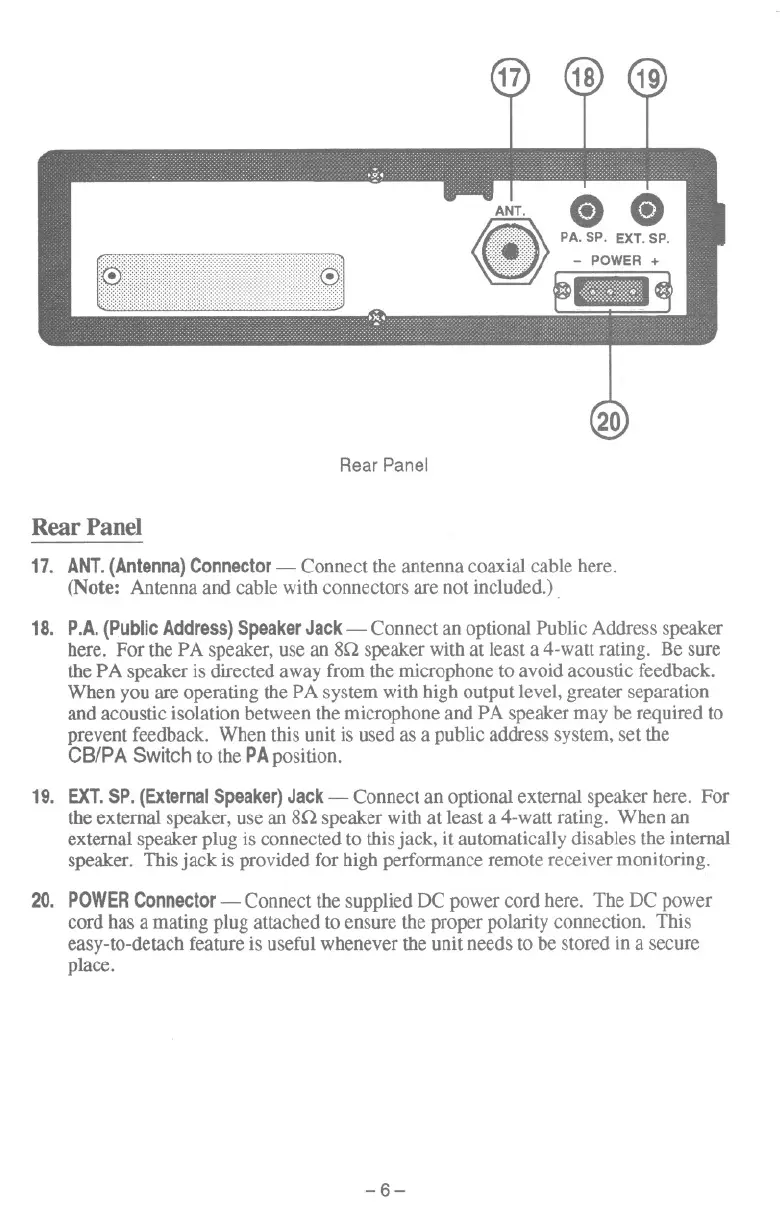

Rear Panel
Rear Panel
17. ANT.(Antenna)Connector- Connect the antenna coaxial cable here.
(Note: Antenna and cable with connectors are not included.) -
18. P.A.(PublicAddress)SpeakerJack- Connect an optional Public Address speaker
here. For the PA speaker, use an 80 speaker with at least a 4-watt rating. Be sure
the PA speaker is directed away from the microphone to avoid acoustic feedback.
When you are operating the PA system with high output level, greater separation
and acoustic isolation between the microphone and PA speaker may be required to
prevent feedback. When this unit is used as a public address system, set the
CB/PA Switch to the PA position.
19. EXT.SP.(External
Speaker)Jack- Connect an optional external speakerhere. For
the external speaker, use an 80 speaker with at least a 4-watt rating. When an
external speaker plug is connected to this jack, it automatically disables the internal
speaker. This jack is provided for high performance remote receiver monitoring.
20. POWERConnector-
Connect the suppliedDC power cord here. The DC power
cord has a mating plug attached to ensure the proper polarity connection. This
easy-to-detach feature is useful whenever the unit needs to be stored in a secure
place.
