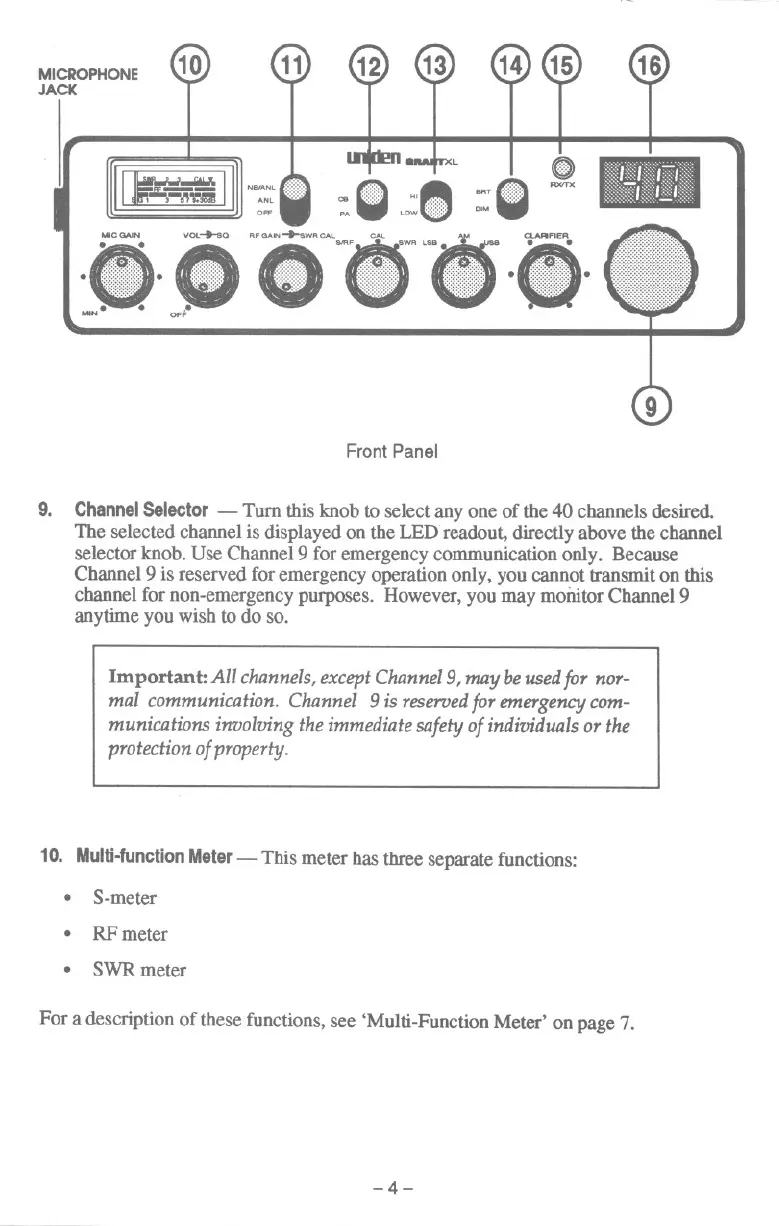

Front Panel
9. Channel Selector - Turn this knob to select anyone of tbe 40 channels desired
The selected cbannel is displayed on tbe LED readout, directly above the cbannel
selector knob. Use Cbannel9 for emergency communication only. Because
Cbannel 9 is reserved for emergency operation only, you cannot transmit on this
channel for non-emergency purposes. However, you may momtor Cbannel 9
anytime you wisb to do so.
Important: All channels, except Channel 9, may be used for nor-
mal communication. Channel 9 is reserved for emergency com-
munications involving the immediate safety of individuals or the
protection of property.
10. Multi-function Meter
- Tbis meter bas three separate functions:
. S-meter
. RPmeter
. SWR meter
For a description of tbese functions, see 'Multi-Function Meter' on page 7.
