10
1. I NTRODUCTION
1.1 Overview
Unimax+ HSPA Ethernet Router performs data communication functions between wired-
LAN (Local Area Network) and wireless WAN (Wide Area Network) using HSPA cellular
station wirelessly. Unimax+ has various input voltage range that can support from 9~30
[VDC] which provides compatibility for platforms utilizing various industrial applications.
1.2 Features
! HSPA Wireless Module MC8705 PCI (21.1 Mbps downlink, 5.76 Mbps uplink)
! Frequency Bands - WCDMA 850/900/1900/2100 MHz
! 10/100Mbps Ethernet Port
! Supports 10/100MHz Auto-Sensing
! 32-bit RISC Network System on Chip
! System clock 250MHz (CPU) and 125MHz (BUS)
! 3-Status LEDs indicator for device status
! External Antenna (FME Male)
! Periodic Reset
! Diagnostic Port
! Digital Inputs (Support 5V)
! Digital Outputs (Support 3.3V)
! L2TP/IPSec VPN
! Wide Range input Voltage range from 9 to 30[VDC]
CPU
NOR
Flash
(8MB)
SDRAM
(32MB)
USB 2.0
MODEM
Debug
Port
(14 Pin)
WAN
UART
EJTAG
Ethernet
Port
&
Debug
JTAG
Cable
Mini PCI
Express
&
70pin
Connector
USB2.0
Switcher
GPIO
Interrupt
Digital Input
Module
(Support 5V)
GPIO
Digital Output Module
(Changed Ext signal?)
Ext Connector
(Molex 5268)
GPIO
Status
LED
(2Ea)
SIM
Socket
Memory
BUS
Push S/W
(Factory reset)
GPIO
Status
LED
(1Ea)

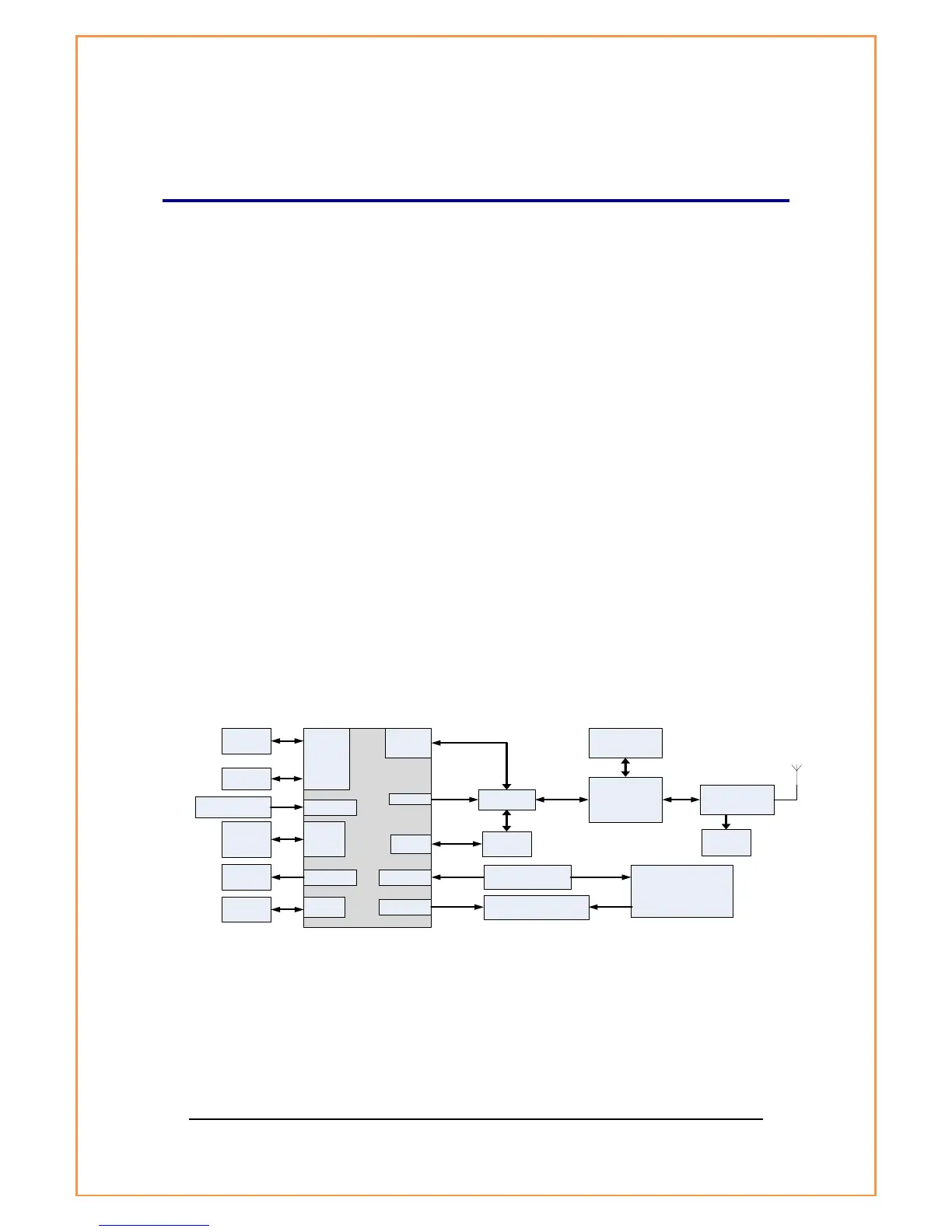

[Figure 1: System Block diagram]
