UNIRAC EcoFoot2+ - System Installation Steps; Step 1 & 2: Placement and Clamping

INSTALLATION GUIDE
PAGE
8
10-DEGREE BALLASTED RACKING SYSTEM
EcoFoot2+ Installation Instructions
STEP 1: Chalk lines on roof denoting two outside edges of the EcoFoot2+®
according to project drawing. Place EcoFoot2+® Bases (A) in position.
TIPS
• Ensure lines are square using 3-4-5 principle.
• As you build the array, panels will space Bases. Roughly place a few rows of
Bases at a time so that they are within reach of nal location.
• If installation requires 2 blocks or fewer on the north row, north row Bases
can be turned around 180 degrees and tucked under the panel.
• If installation requires butyl, then butyl will be pre-installed on the bottom
of the Base with protective tape. Ensure these butyl components are placed
where specied in project drawing.
CAUTION
Remove protective tape after Step 6

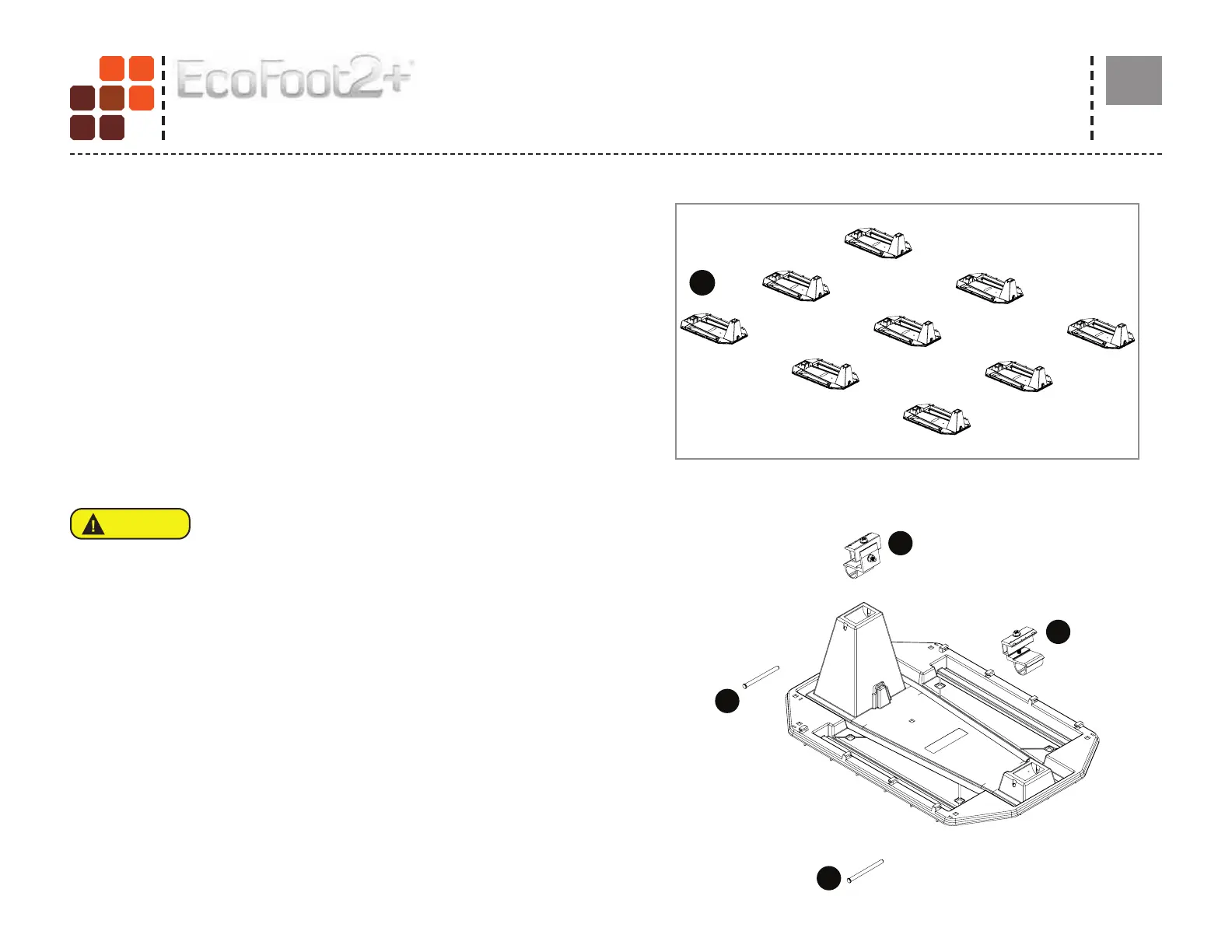

STEP 2: Place Lower Clamp (B) and Upper Clamp (C) into EcoFoot2+ Base (A) as
shown. Push Clevis Pin (D) completely into EcoFoot2+® Base(A) to secure Rocker.
TIP
Only install Clamps where modules will rest. Refer to diagram below for correct
placement and orientation of Clamps.
A
D
D
B
C
SYSTEM INSTALLATION STEPS
