UNIRAC EcoFoot2+ - Step 3 & 4: Module Mounting and Ballast

INSTALLATION GUIDE
PAGE
9
10-DEGREE BALLASTED RACKING SYSTEM

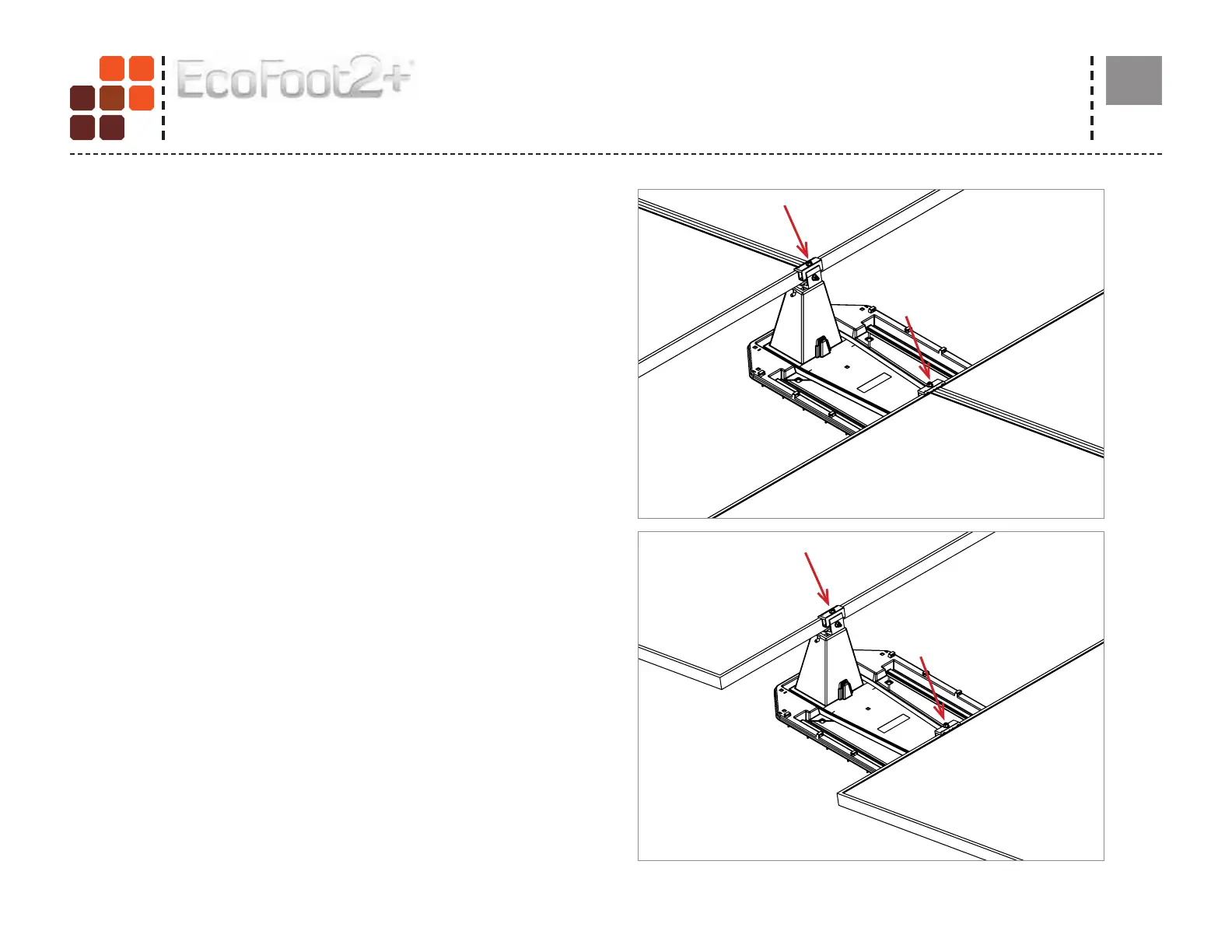

STEP 3: Place module onto EcoFoot2+® Base (A). Using a 1/2" deep socket,
Torque nuts (F). Space modules 1/2“ apart using the alignment marks on
the Clamps.
Torque Nuts (F) to 14 ft-lbs.
SYSTEM INSTALLATION STEPS
