UNIRAC EcoFoot2+ - OMG Roof Attachment Steps (Steps 15-17)

INSTALLATION GUIDE
PAGE
20
10-DEGREE BALLASTED RACKING SYSTEM

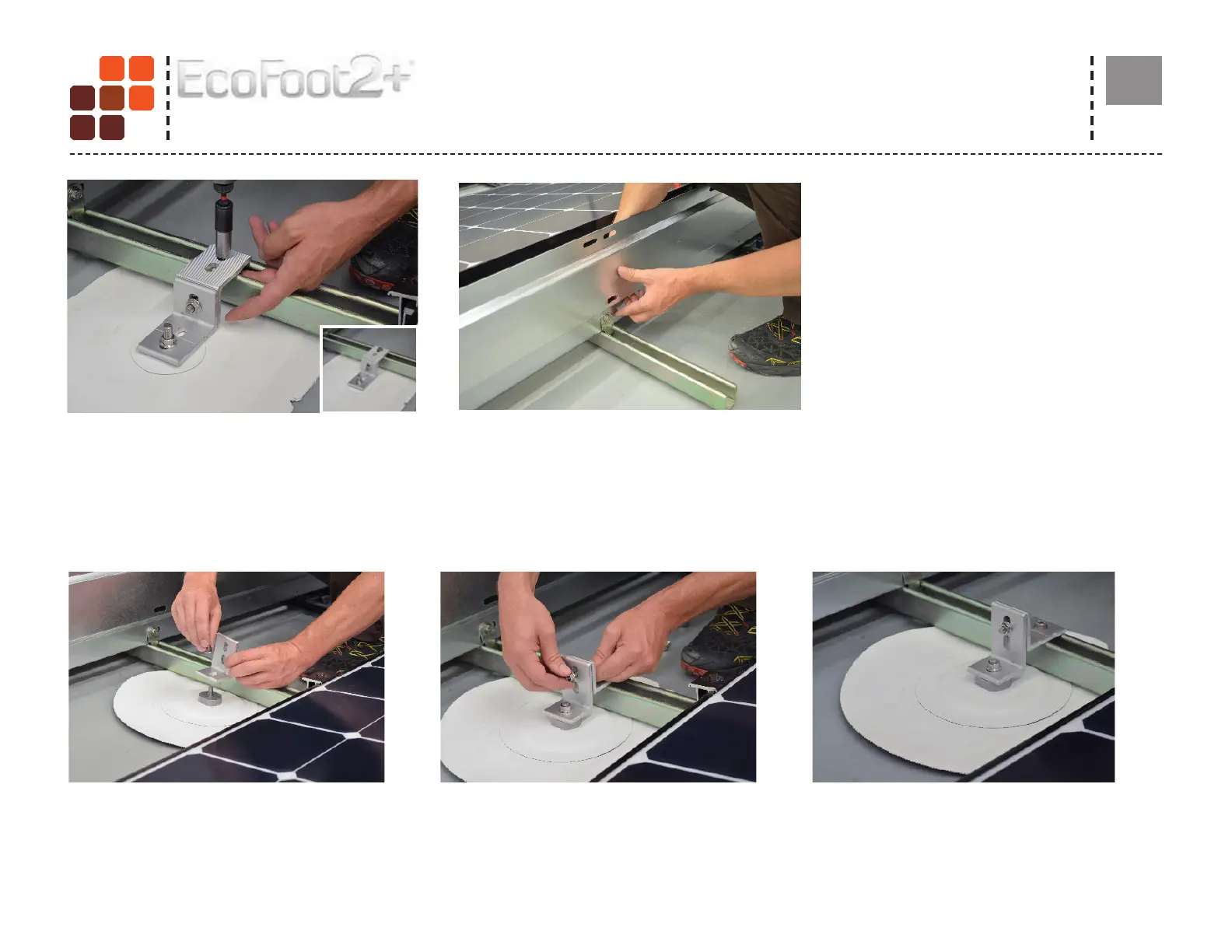

STEP 13:
Attach L-Bracket 2 to Strut.
Place L-Bracket 2 on Strut and secure with L-Bracket
Bolt.
STEP 15:
Attach L-Bracket 1 to Roof Attachment.
Place short side of L-Bracket on Roof Attachment
and secure L-Bracket 1 to Roof Attachment
with Bolt.
STEP 16:
Attach L-Bracket 2 to L-Bracket 1 by butting at
sides and bolting together. Use included L-Bracket
Bolt to secure two L-Feet together.
STEP 17:
Attach L-Bracket 2 to Strut. Place L-Bracket 2 on
Strut and secure with L-Bracket Bolt.
STEP 14:
Repeat steps 9 and 10 as needed to attach North
row Wind Deector to Strut.
Torque all bolts to 14 ft-lbs
NOTE:
When using U-Anchor Roof Attachment, the short
side of L-Bracket 2 butts to the short side of L-Bracket
1, as shown in step 13.
If you are using OMG Roof Attachment, see guidelines
below for correct installation of L-Bracket 2.
INSTALLATION STEPS FOR OMG ROOF ATTACHMENT
ROOF ATTACHMENT WITH STRUT
