Unitronics UniStream PLC Series User Manual

UniStream
®
PLC

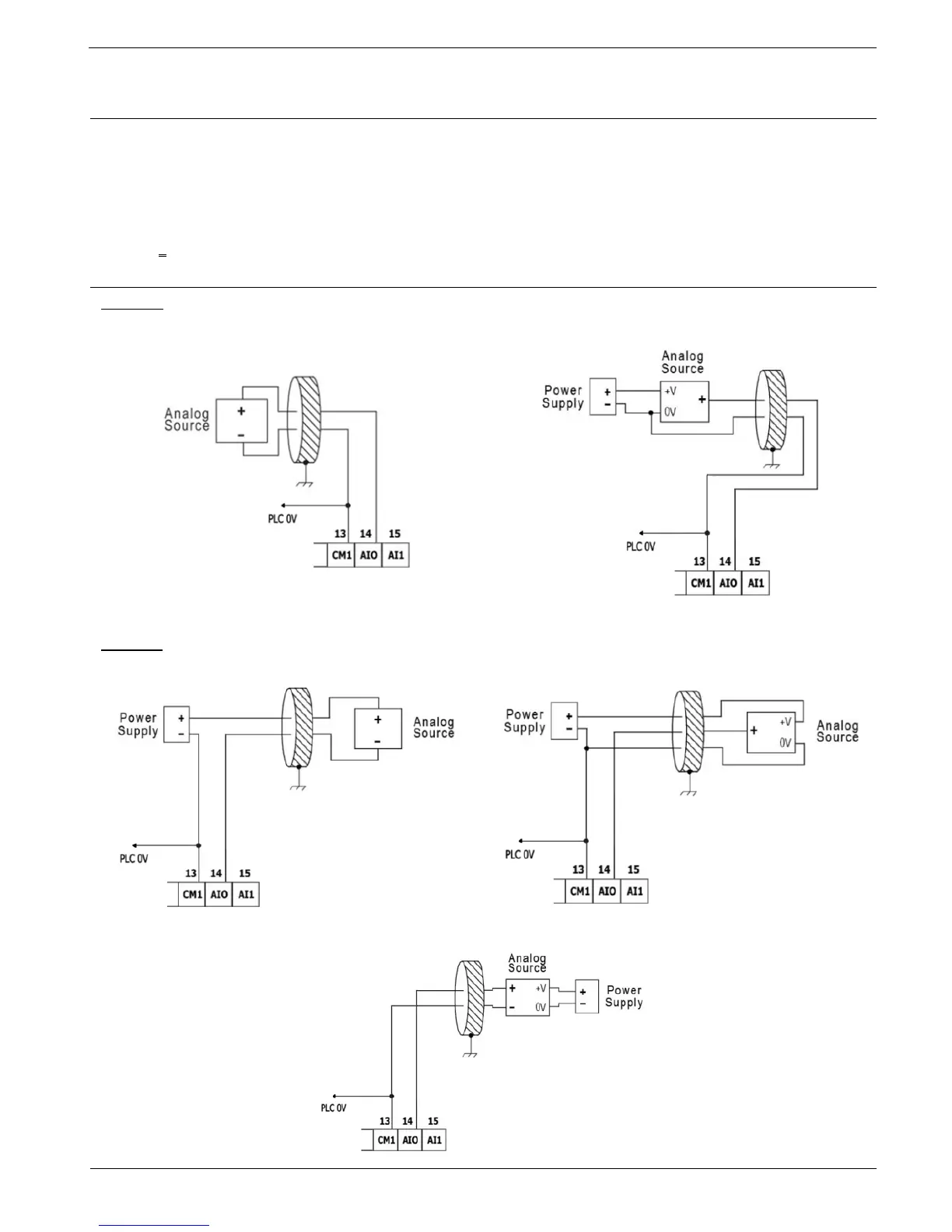

Wiring the Analog Inputs
Both inputs share the common point CM1.
NOTE
 The inputs are not isolated.
 Each input offers two modes: voltage or current. You can set each input
independently.
 The mode is determined by the hardware configuration within the software
application.
 Note that if, for example, you wire the input to current, you must also set it to
current in the software application.
Voltage
Differential
Single-ended
Current
2-wire
3-wire
4-wire
Unitronics 11

Unitronics UniStream PLC Series Specifications

General

Brand	Unitronics
Model	UniStream PLC Series
Category	Controller
Language	English
