Unitronics UniStream PLC Series User Manual

UniStream
®
PLC

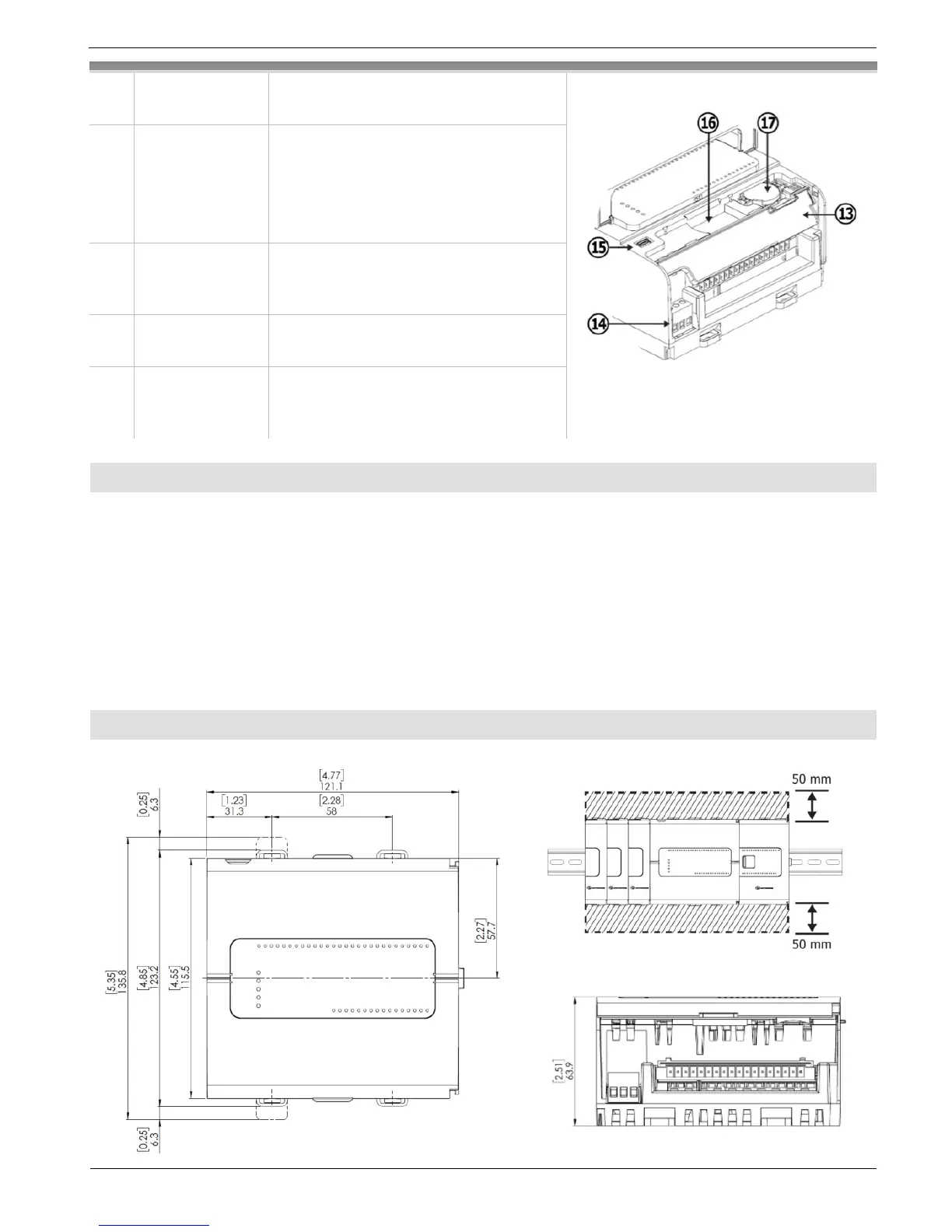

13 Internal
Door, open
Open this to access the battery
+ microSD slot.
Bottom View
14 Power
Supply Input
Connection point for the
controller power source.
Connect the Terminal Block
supplied with the kit to the
power cable.
15 USB Device
port
Use for application download
and direct PC-UniStream
communication.
16 microSD Slot Supports standard microSD
cards.
17 Battery
Holder
The battery is supplied installed;
the user must remove the pull
tab during installation.
* These are available by separate order.
Installation Space Considerations
Allocate space for:
 The controller
 I/O wiring
 Access to ports, jacks, and the microSD card slot
 Any modules that will be installed; ensure you allow space to install/uninstall modules
Module dimensions and installation instructions are in the modules’ specifications.
For exact dimensions, please refer to the Mechanical Dimensions shown below.
Mechanical Dimensions
Front View
Bottom View
Unitronics 5
