Unitronics Vision V120 User Manual

Installation Guide

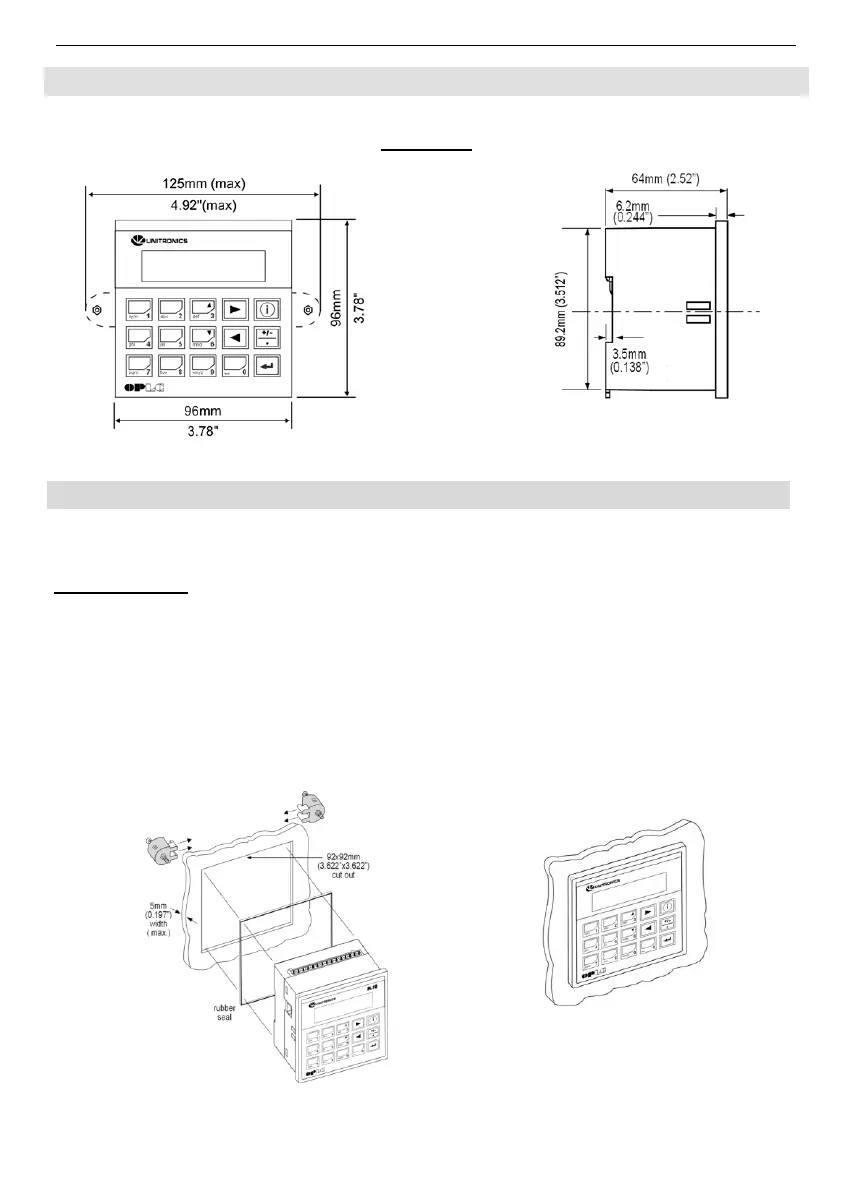

Mounting
Note that figures are for illustrative purposes only.
Dimensions
Model
Cut-out
View area
V120
92x92 mm (3.622”x3.622”)
57.5x30.5mm (2.26"x1.2")
M91
92x92 mm (3.622”x3.622”)
62x15.7mm (2.44"x0.61")
Panel Mounting
Before you begin, note that the mounting panel cannot be more than 5 mm thick.
1. Make a panel cut-out of the appropriate size:
2. Slide the controller into the cut-out, ensuring that the rubber seal is in place.
3. Push the mounting brackets into their slots on the sides of the panel as shown in the figure below.
4. Tighten the bracket’s screws against the panel. Hold the bracket securely against the unit while
tightening the screw.
5. When properly mounted, the controller is squarely situated in the panel cut-out as shown in the
accompanying figures.
2
