Universal Audio Apollo Twin - Connect to Input Sources and Monitor System

Apollo Twin Hardware Manual Chapter 2: Quick Start 15
Connect to Input Sources and Monitor System
One typical Apollo Twin setup is illustrated below. For complete details about all of
Apollo Twin's connectors and controls, see Chapter 3: Controls & Connectors.

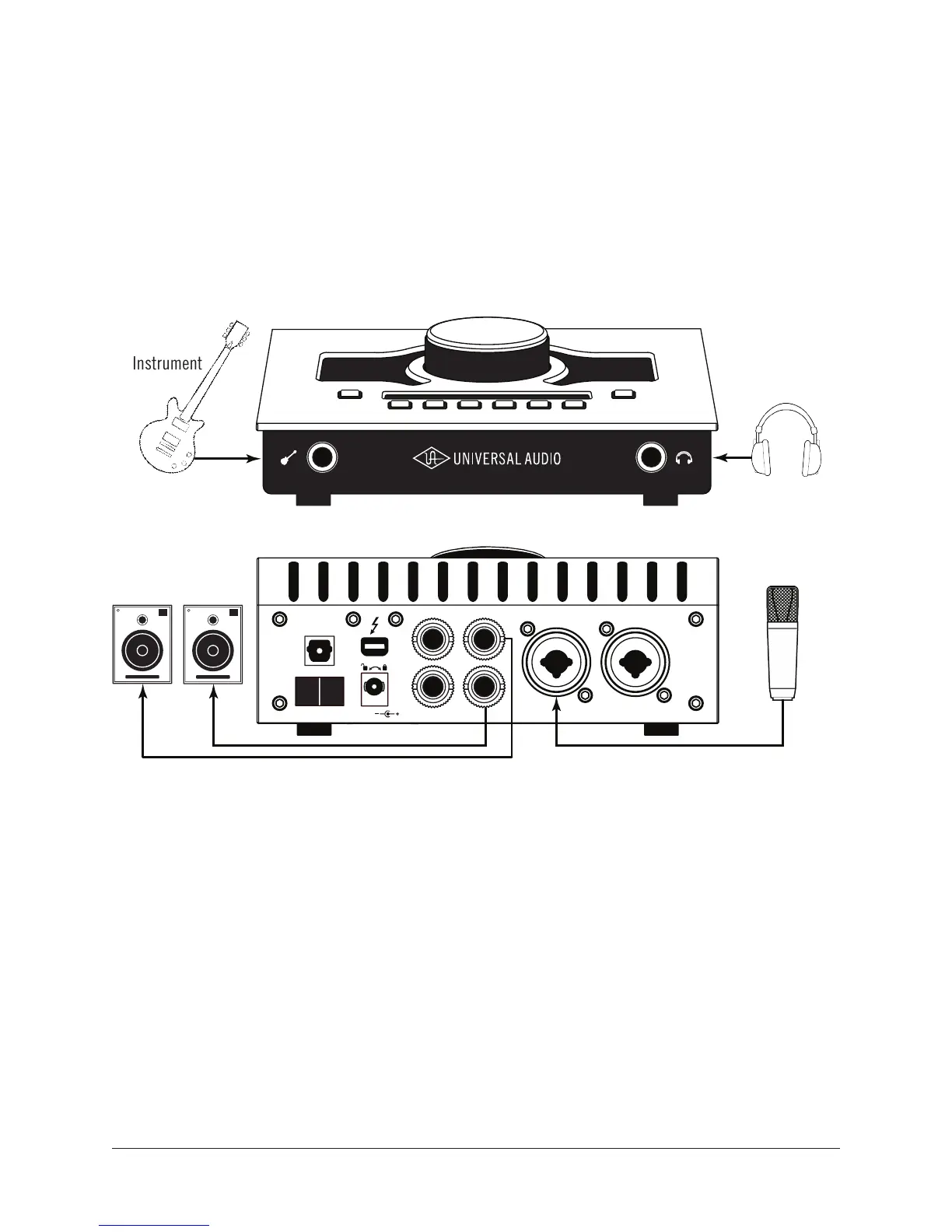

Typical Apollo Twin setup connections
MIC/LINE 1 MIC/LINE 2
3 L
4 R
LINE OUT MONITOR
OPTICAL IN
OFF ON
12VDC
POWER
Speaker
System
Instrument
Headphones
Microphone
