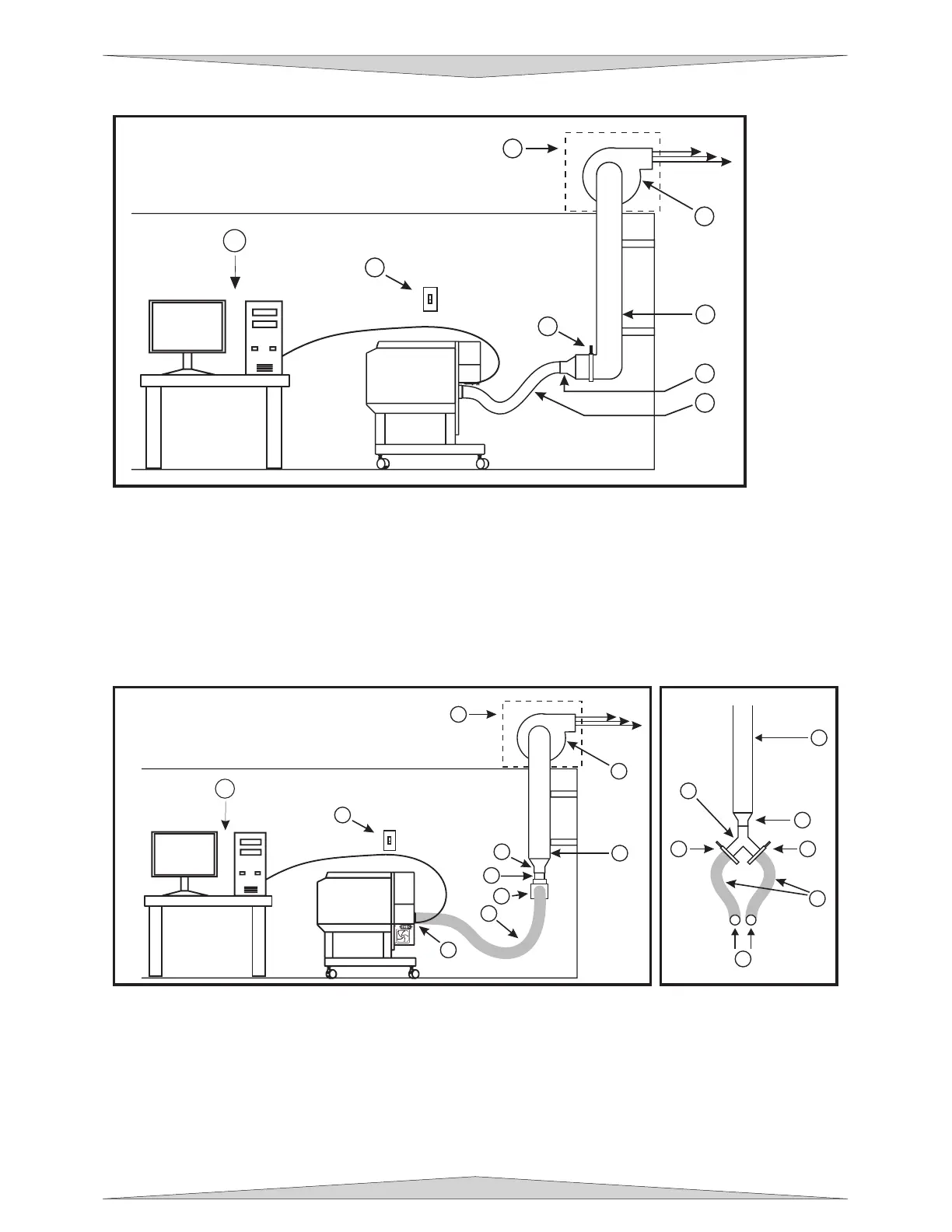

INSTALLATION
Section 2-5
PLS3.75 and PLS4.75
1
2
3
4
5
6
7
8
(1) Exhaust blower mounted outside.
(2) Weatherproof shield
(3) Rigid ducting matching the diameter of the blower inlet
(4) Shut-off or air-flow gate
(5) Reducer to 4 inches
(6) Flexible, wire-reinforced, industrial grade rubber hose
(7) On/Off switch
(8) Computer (user supplied)
PLS6.
75 and PLS6.150D
1
2
3
4
5
6
9
8
3
4
5
6
7
6
8
7
10
(1) Exhaust blower mounted outside.
(2) Weatherproof shield
(3) Rigid ducting matching the diameter of the blower inlet
(4) Reducer to 4 inches
(5) Y-pipe
(6) Shut-off or air-flow gate(s)
(7) Flexible, wire-reinforced, industrial grade rubber hose
(8) Connection to laser
(9) On/Off switch
(10) Computer (user supplied)
