Section 4
Assembling the PLS
Depending on what model PLS you have purchased assembly of your laser system maybe required.
Once the system has been assembled it is necessary to install the laser tube on the back of the machine
and perform a beam alignment check. DO NOT power up your laser system until the final step,
“Checking Beam Alignment”.
CARE SHOULD BE TAKEN WHEN MOVING OR LIFTING THIS
DEVICE. Obtain assistance from 3 or 4 additional people when
lifting or carrying (secure motion system and doors). Severe bodily
injury may occur if improper lifting techniques are applied or the
system is dropped.

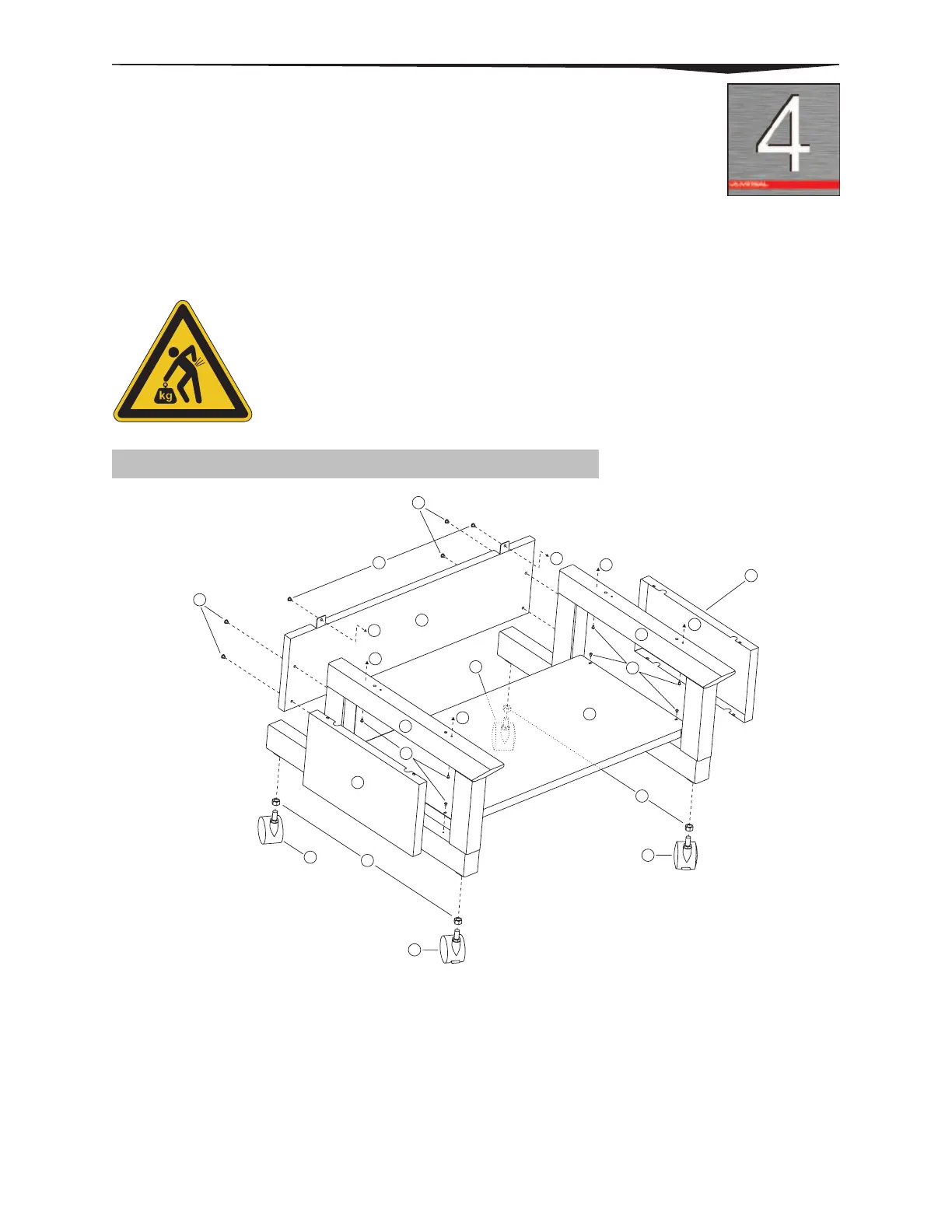

System Assembly - PLS3.75 and PLS4.75
1
2
2
3
3
4
9
5
5
6
6
5
5
10
10
10
10
10
10
7
8
7
8
Cart
(1) Back panel
(2) Legs (both are identical)
(3) Side Panels (2)
(4) Shelf Panel
(5) 1/4-20 x ½, socket head screws with lock and flat washers
(6) Nuts (4)
(7) Non-locking casters
(8) Locking casters
(9) 10-32 x 3/8 socket head screws with lock and flat washers
(10) Connect to main enclosure
