Universal Laser Systems ULS-25 - Section 4: Laser System Operation; General System Overview and Components

29
SECTION 4 - LASER SYSTEM OPERATION

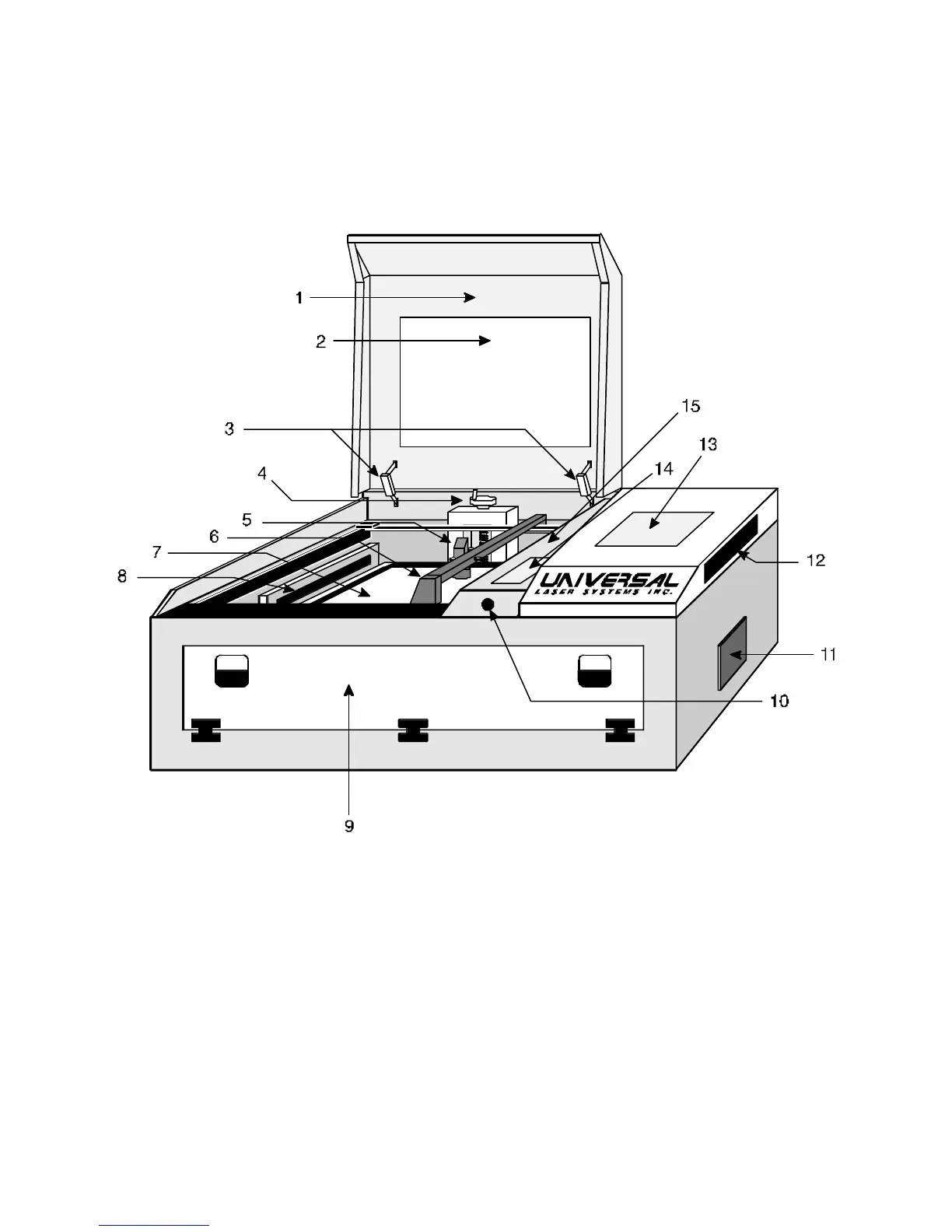

4.1 GENERAL SYSTEM OVERVIEW
1. Top Door 9. Front Door
2. Top Door Window 10. Interlock Defeat Tool Socket
3. Top Door Counterbalances 11 Air Intake Filter
4. Engraving Table Adjustment Knob 12. Parallel and Serial Connectors, On/Off
5. Focus Lens Holder Assembly Switch, Power Cord Inlet
6. Motion System Y-Axis Arm 13. Main Control Panel
7. Engraving Table 14. Motion System Control Panel
8. Exhaust 15. Motion System Protective Overhang
