3. Observe the top of the focusing tool. Now raise the engraving table until the focusing tool just
starts to tilt away from the lens holder as shown in the diagram below. Back the engraving table
down again slightly so the focusing tool again sets flat against the side of the lens holder. The point
in which the focusing tool just starts to tilt away is the optimal focus distance.
NOTE: The focal length of the optional high resolution focus lens is 1.5 inches. A high resolution
focus tool must be used with this lens.

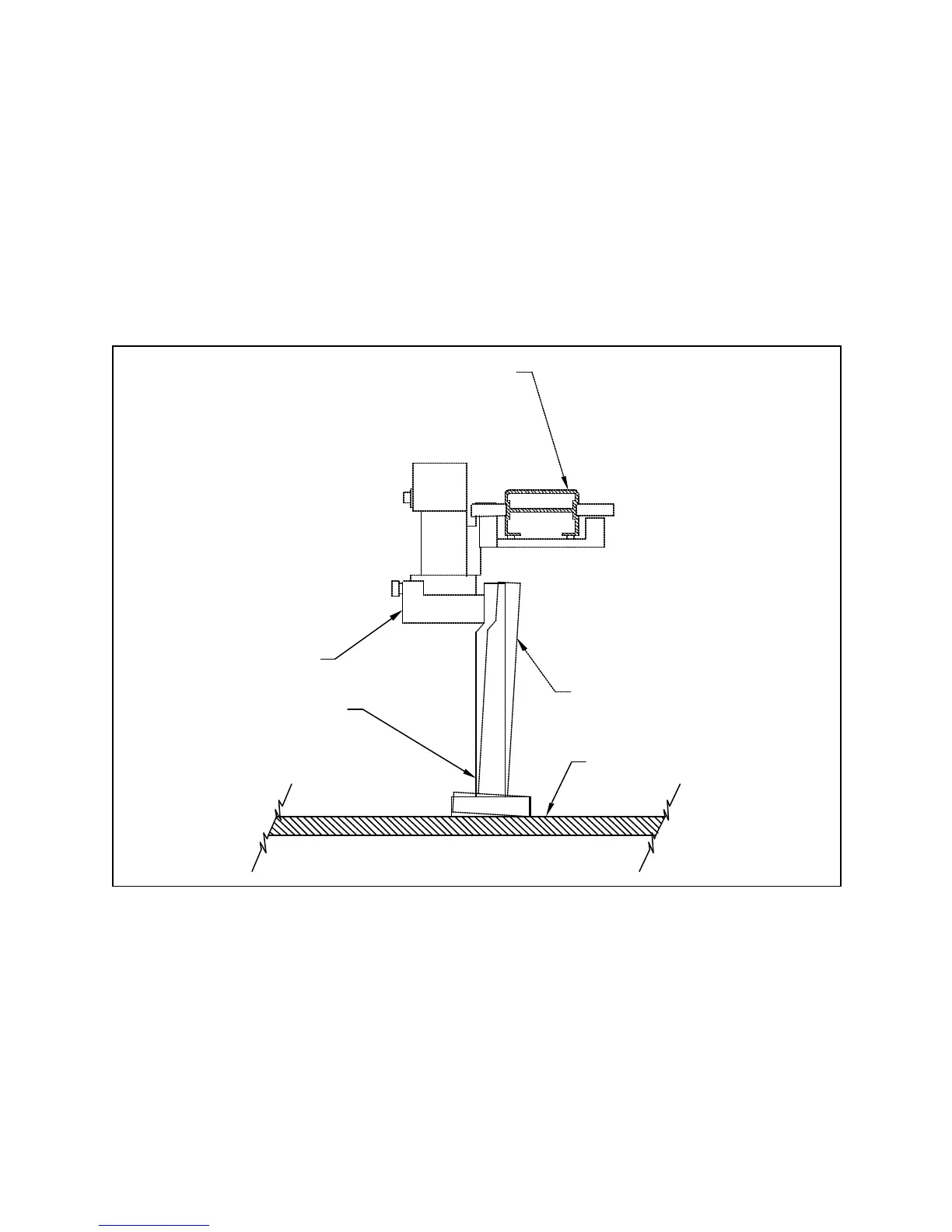

LENS HOLDER
FOCUSING TOOL TILTED
(TILT EXAGERATED)
FOCUSING TOOL
MATERIAL SURFACE
MOTION SYSTEM ARM
(FRONT VIEW)
