IMPORTANT: Before making electrical connections, check the specifications on the data plate,
(located on the rear access panel), to assure they agree with those of your electrical service.
WARNING: Whenever maintenance is being performed or whenever the top cover or rear access
panel have been removed, DISCONNECT the electrical power cord and place a tag on it indicating the
mixer is being worked on.
Page 10.3

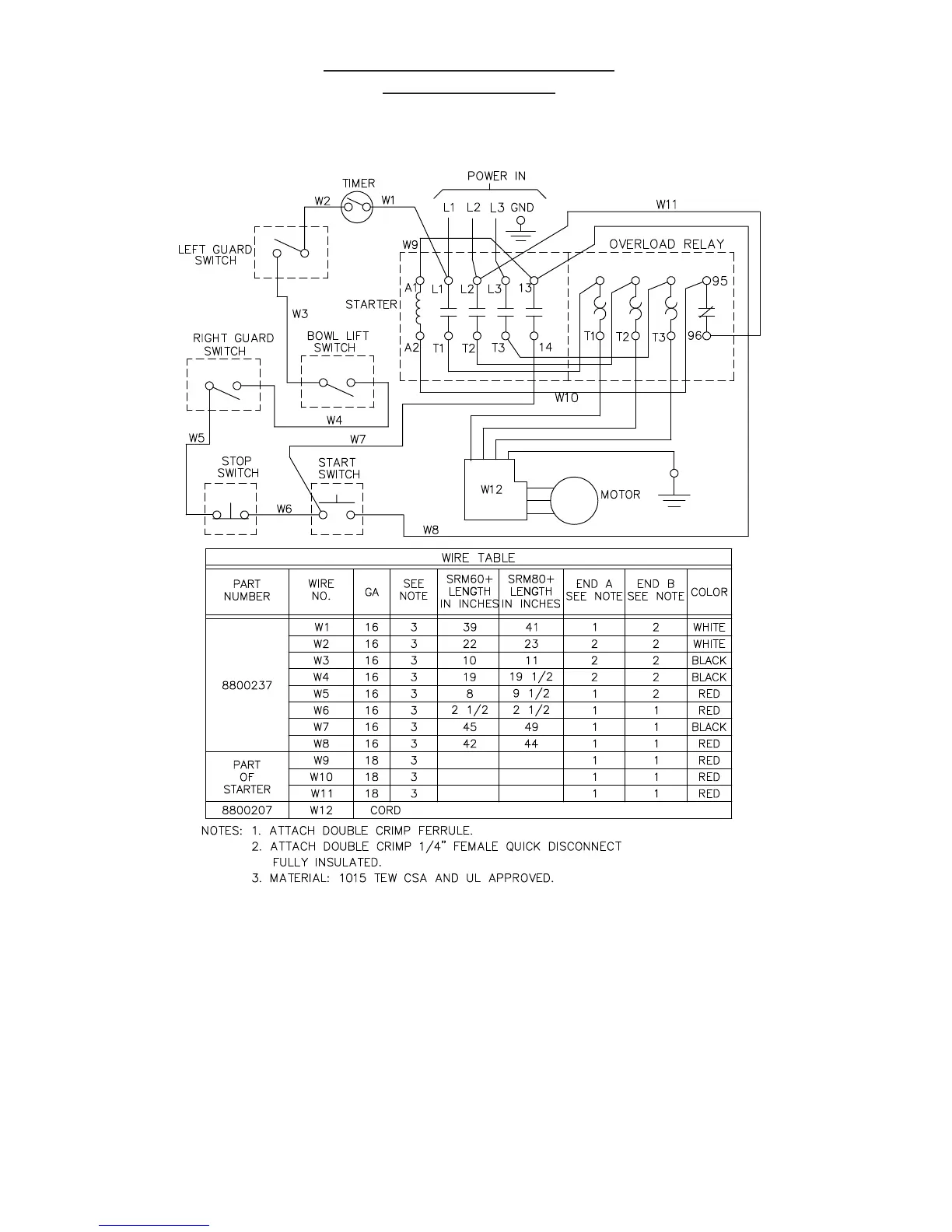

SCHEMATIC 208-230V, 60HZ, 3PH
220-240V, 50HZ, 3PH
FIGURE 16B
