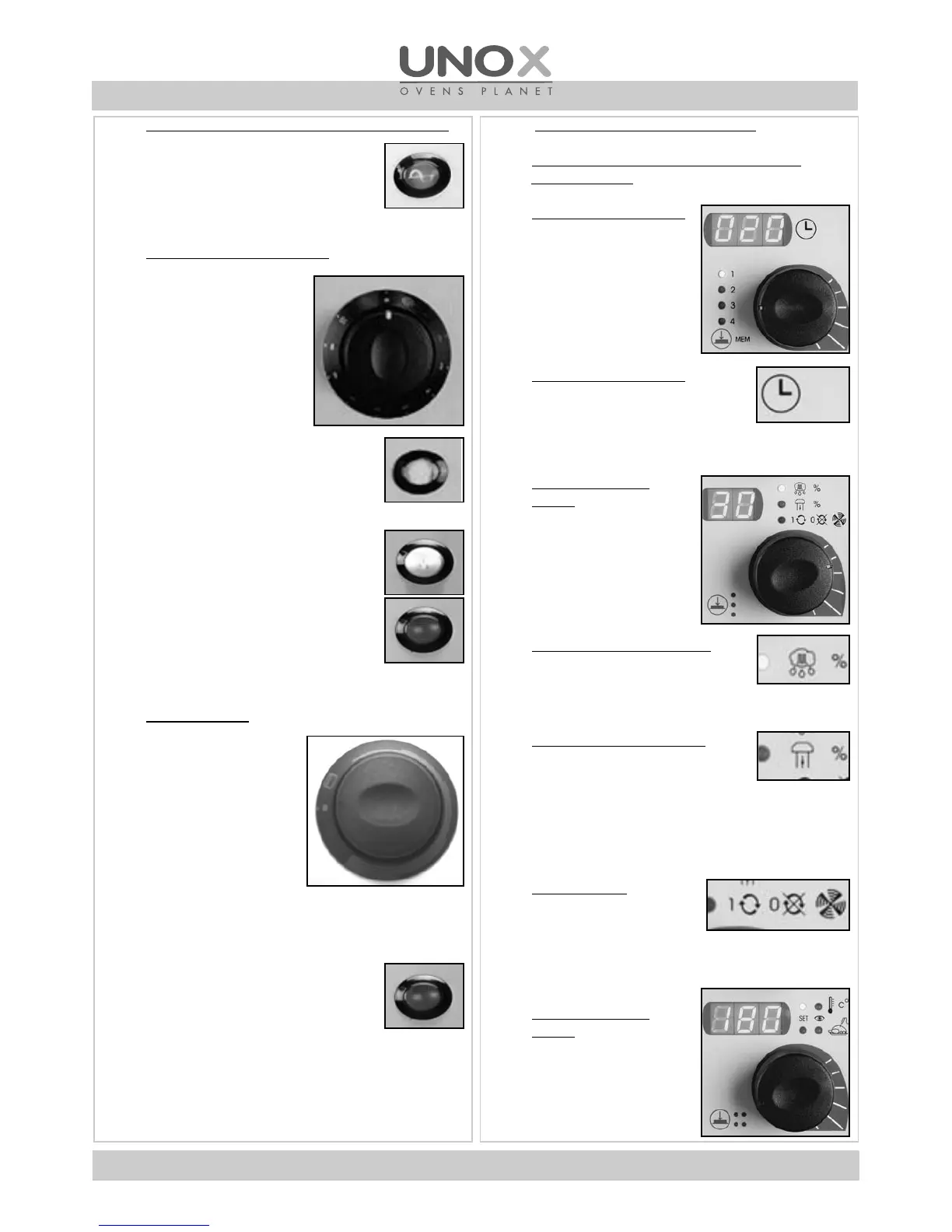

5. OVENS WITH ELECTRONIC CONTROL
5.1 DESCRIPTION AND USE OF THE ELECTRONIC
CONTROL PANEL
COOKING TIME CONTROL
» COOKING TIME CONTROL
Indicated in minutes, it can be pro-
grammed into 4 basic periods.
It regulates the cooking time up to a
maximum of 999 minutes for each of 4 basic period.
MUL
TI - FUNCTION
KNOB :
» STEAM / HUMIDITY CONTROL
It regulates the quantity of steam pro-
duced in the baking chamber.
It is indicated in percentage from a minimum of 5%
to a maximum of 95%.
» PRODUCT DRYING CONTROL
It regulates the quantity of humidity
that it is needed to be estracted from
the baking chamber. It is effectuated through the intro-
duction of dry air inside the chamber, opening the
Venturi System.
It is indicated in percentage from a minimum of 10%
to a maximum of 90%.
» FANS CONTROL
It activates or stop the rota-
tion of fans, it is used for the
product rising inside the baking chamber.
- the display indicates 01 : FANS ARE IN FUNCTION
- the display indicates 00 : FANS ARE STOPPED
MUL
TI - FUNCTION
KNOB :
The buzzer will turn off automatically in 15 seconds.
Ignition Pilot Light
- ON : appliance is on
- OFF : appliance is off
» STEAM / HUMIDITY CONTROL
Steam Knob
It regulates the quantity of
steam produced in the bak-
ing chamber.
Rotate the steam knob
clockwise and set the
steam quantity from 1 up
to 10.
Steam Pilot Light
- ON : there is steam production
- OFF : there is no steam production
Humidity Push-Button (grey)
It injectes humidity inside the baking cham-
ber by manual pulses. In a 20 minutes cook-
ing process pulses must not be given longer
than 3 minutes.
Humidity Pilot Light
- ON : there is humidity injection
- OFF : there is no humidity injection
» GRILL FUNCTION
Grill Power Regulation
Knob
The grill function allows to
grill and to gratinate the-
food and make it a golden
colour after normal cook-
ing.
The grill power can be
adjusted by rotating the
knob clockwise from a minimum (intermittent opera-
tion) to a maximum (continuous operation).
To adjust the grill strength, increase or decrease the
grill power.
Grill Pilot Light
- ON : the grill is in function
- OFF : the grill is not in function
