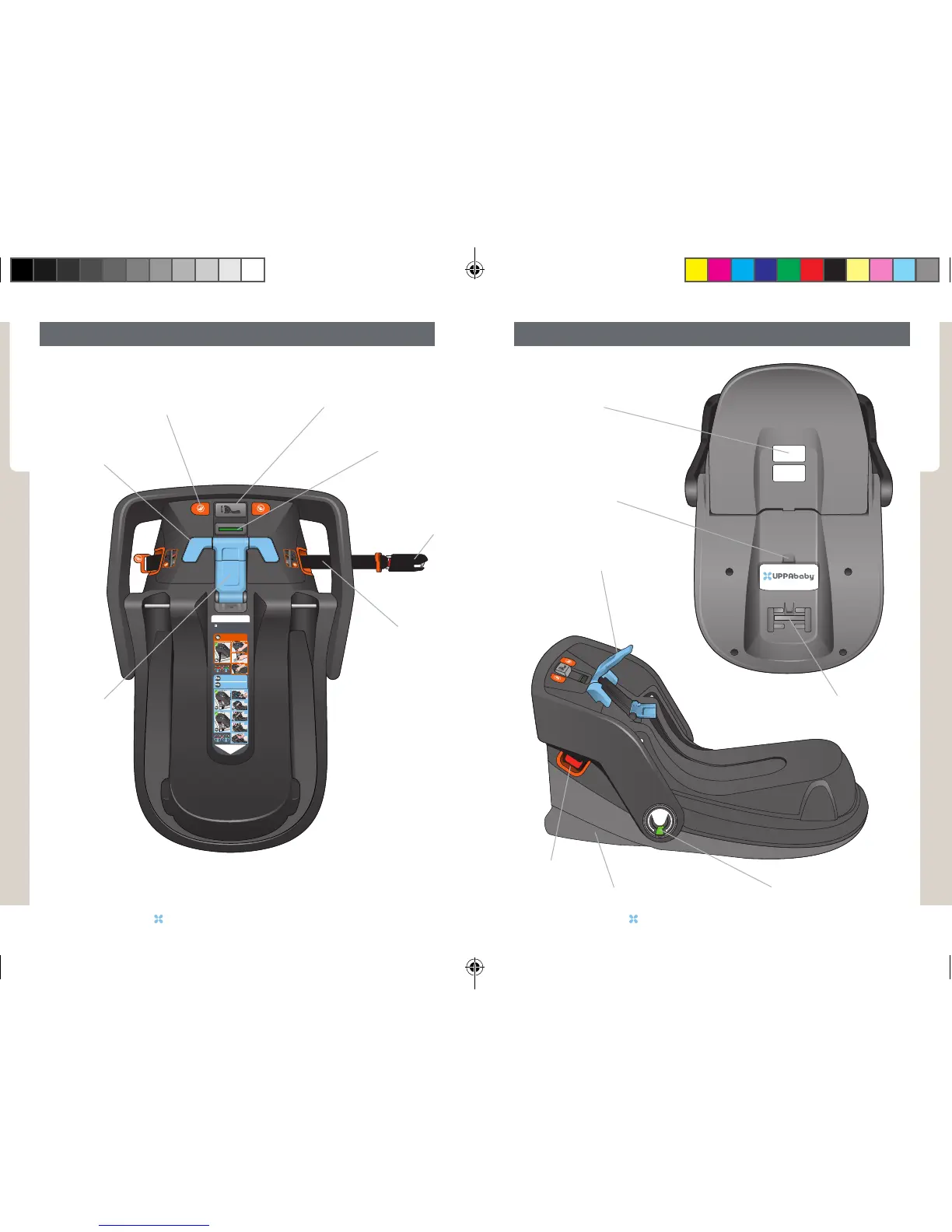

OVERVIEW OF BASE
REAR-FACING SEAT FEATURES
OVERVIEW OF BASE
LEVEL WHEN
NO RED
VISIBLE
REFER TO INSTRUCTION BOOK
CONSULTAR EL MANUAL DE INSTRUCCIONES
FRONT OF VEHICLE
FRENTE DEL
VEHÍCULO
Lap/Shoulder Belt (page/páge 22)
Cinterón de Regazo y Hombra
Lap Belt Only
(page/páge 22)
Cinturón de Regazo Solamente
5
LEVEL WHEN
NO RED
VISIBLE
LEVEL WHEN
NO RED
VISIBLE
LEVEL WHEN
NO RED
VISIBLE
LEVEL WHEN
NO RED
VISIBLE
LATCH (page/páge 19)
LATCH
1
2
3
3
2
1
4
To view installation videos, visit:
Para ver los vídeos de instalación, visite:
http://uppababy.com/mesainstall
LEVEL ADJUST
BUTTON
TIGHTNESS
INDICATOR
LOWER
ANCHOR
CONNECTORS
LOWER
ANCHOR
CONNECTOR
WEBBING
VEHICLE BELT
GUIDES (2)
VEHICLE BELT
LOCK-OFF
(CLOSED)
LOWER ANCHOR CONNECTOR
RELEASE BUTTONS (2)
LEVELWHEN
NORED
VISIBLE
LOWER
ANCHOR
CONNECTOR
STORAGE
VEHICLE BELT
LOCK OFF (OPEN)
MANUFACTURED/
EXPIRATION DATE
INSTRUCTION BOOK
STORAGE
LOCKING CLIP
ADJUSTMENT
FOOT
LEVEL ANGLE
INDICATORS (2)
REAR-FACING SEAT FEATURES
