Upright MX Series User Manual

92 “Translation of the original instruction”

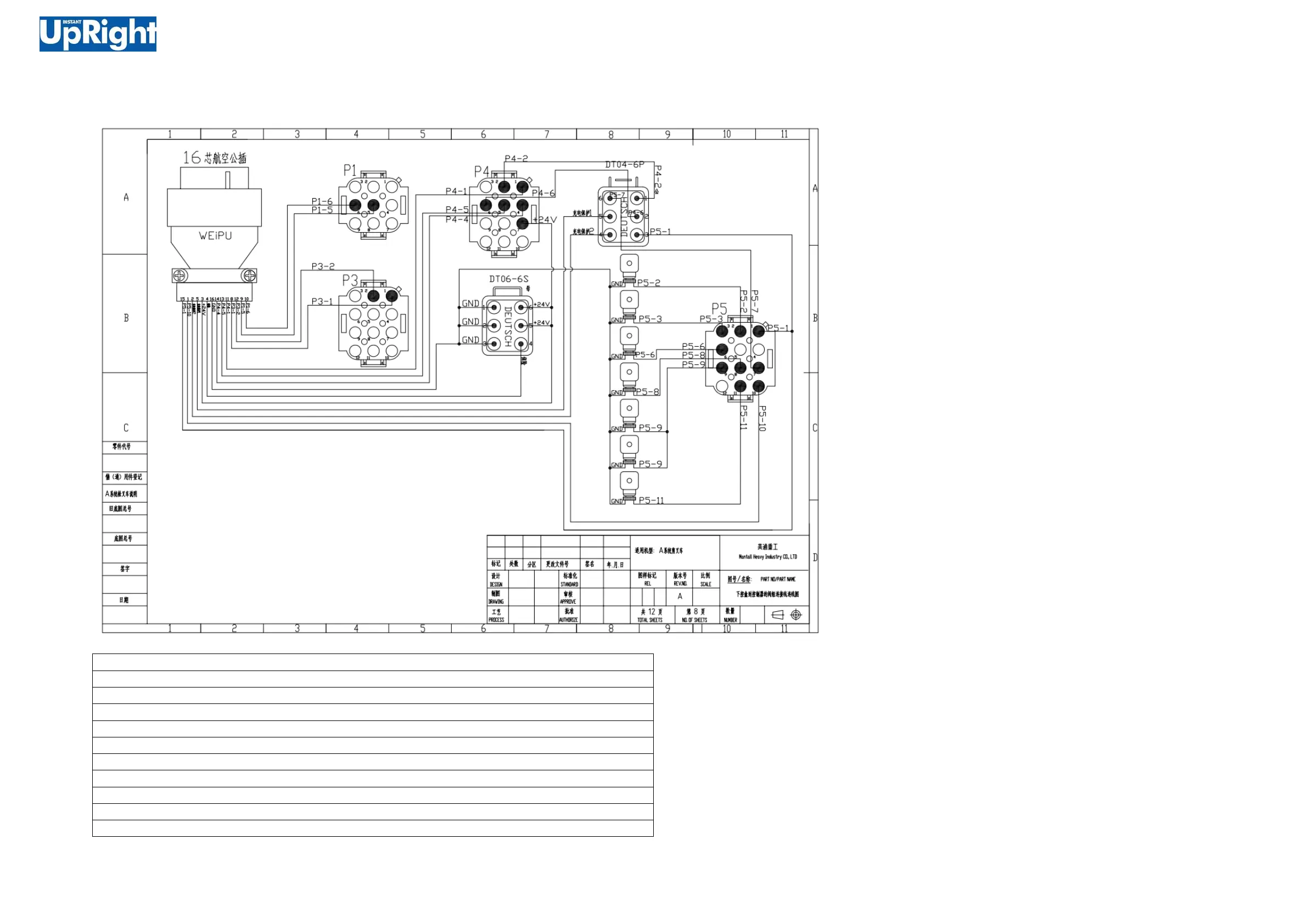

7.1.10 Wiring diagram of the valve group connection line of the lower control box to the controller of Hydraulic drive A system
Pic.10(Some same as Pic.1)
16 core male plug
male plug
Female Plug
Charger Protection 1
Charger Protection 2
Insurance
Totally 12 pages
The Eighth Page
The Wiring Connected Ground Control and Valve of Controller
Qty.

Upright MX Series Specifications

General

Lift Capacity	500 lbs
Weight Capacity	500 lbs
Platform Width	30 in
Overall Width	36 in
Overall Length	8 ft
Stowed Length	8 ft
Stowed Width	36 in
