Section 4 - Schematics Electric
113101-000 MX15 / MX19 | Service Manual Page 4-7
Figure 4-6:

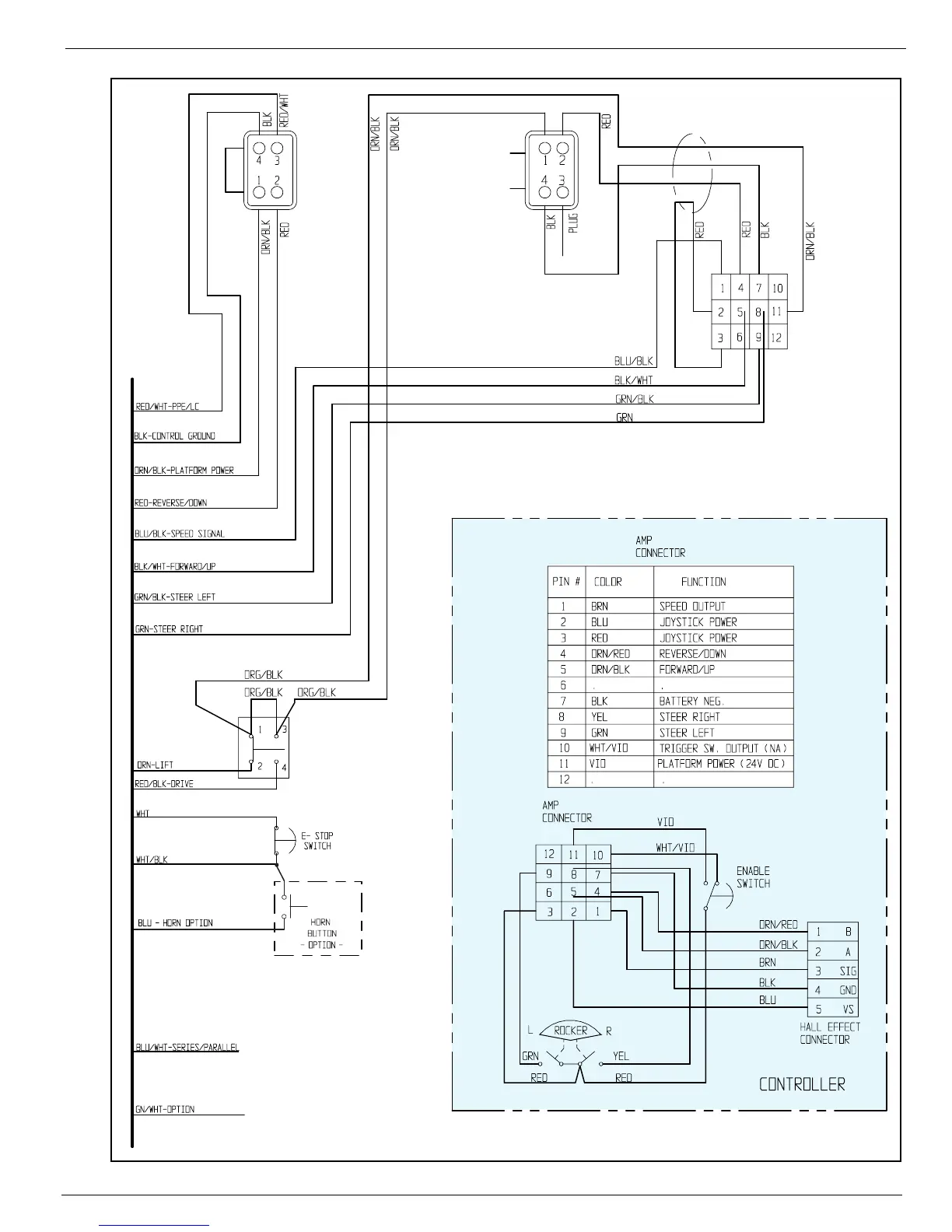

Upper Controls Wiring
S8
S7
S4
S10
S12
