Upright X20W Service & Parts Manual

2-2 X-Series Work Platform
Machine Preparation
Section
2.3 Transporting Work Platform
BY FORKLIFT
NOTE: Forklifting is for transporting only.
See specifications for weight of work
platform and be certain that forklift is of
adequate capacity to lift platform.
Forklift from the rear of the machine using the forklift
pockets provided (figure 2-3). If necessary, the machine
may be forklifted from the side by lifting under the
Chassis Modules.
BY CRANE
1. Secure straps to Chassis Lifting Lugs only
(Figure 2-2 & 2-3).
BY TRUCK
1. Maneuver the work platform into transport position
and chock wheels.
2. Secure the work platform to the transport vehicle
with chains or straps of adequate load capacity
attached to the chassis tie down lugs
(Figure 2-2 & 2-3).
Front tie down lugs are not to be used to
lift work platform.
Overtightening of chains or straps through
tie down lugs may result in damage to
work platform.
2.4 Storage
No preparation is required for normal storage. Regular
maintenance per Table 4-1 should be performed. If the
work platform is to be placed in long term storage (dead
storage) use the following preservation procedure.
PRESERVATION
1. Clean painted surfaces. If the paint surface is dam-
aged, repaint.
2. Check the level of the hydraulic oil with the plat-
form
fully lowered. Open the Right Module and
remove the reservoir cap, oil should be at the lower
line on the dipstick. Add ISO #46 hydraulic oil if
necessary.
3. Coat all exposed unpainted metal surfaces with
preservative.
BATTERIES
1. Disconnect the Battery ground cable terminal and
secure to the chassis.
2. Disconnect the remaining battery leads and secure
to the chassis.
3. Remove the batteries and place in alternate service.
2.6

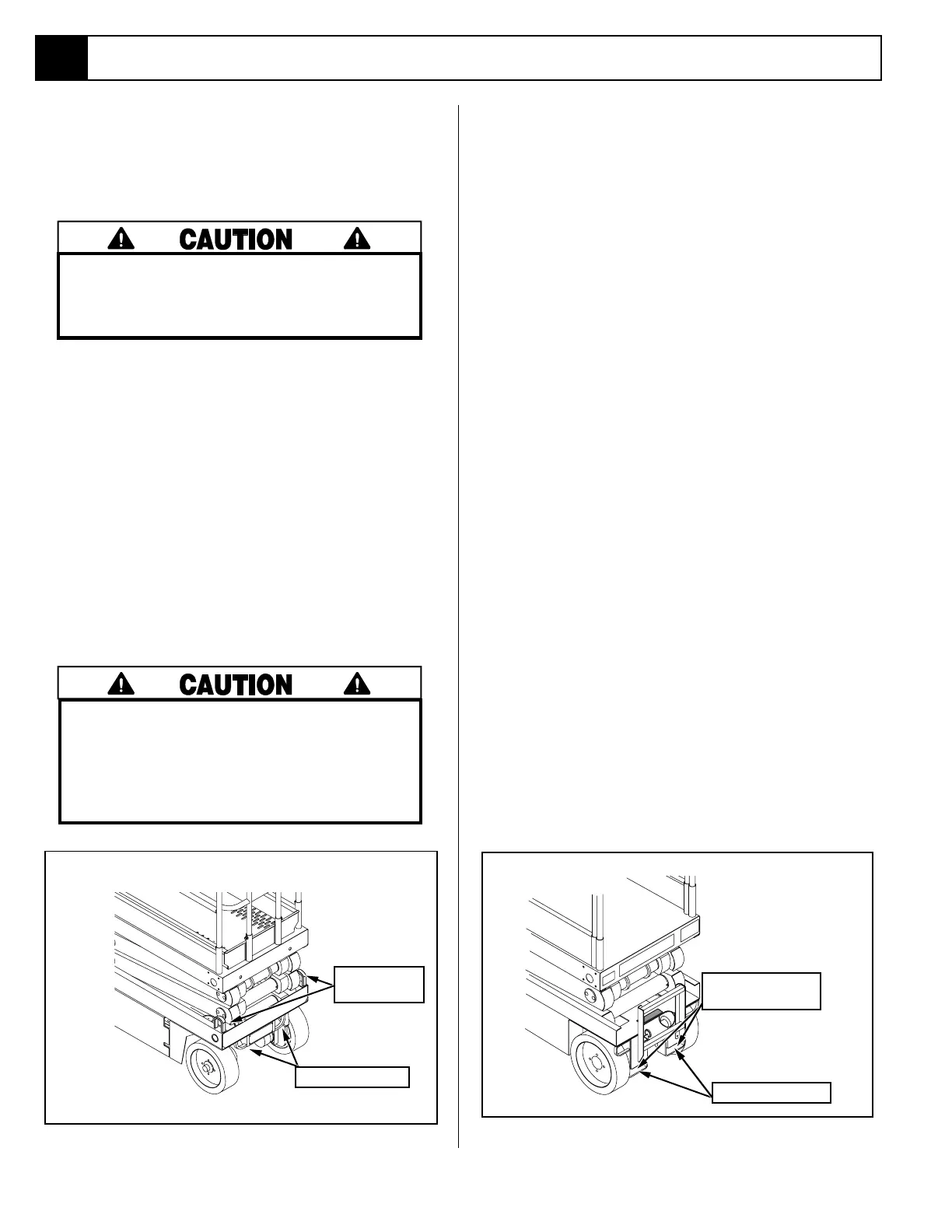

Figure 2-2: Transporting machine Figure 2-3: Transporting machine
Front Lifting
Points
Front Tie Down
Forklift Pockets
Rear Tie Down /
Lifting Points
