6
DS1717-056
ENGLISH
The IP video door phone Ref.1717/4x is a device dedicated to Ipercom system.
For trouble-free operation, the device requires a LAN/POE-type connection.

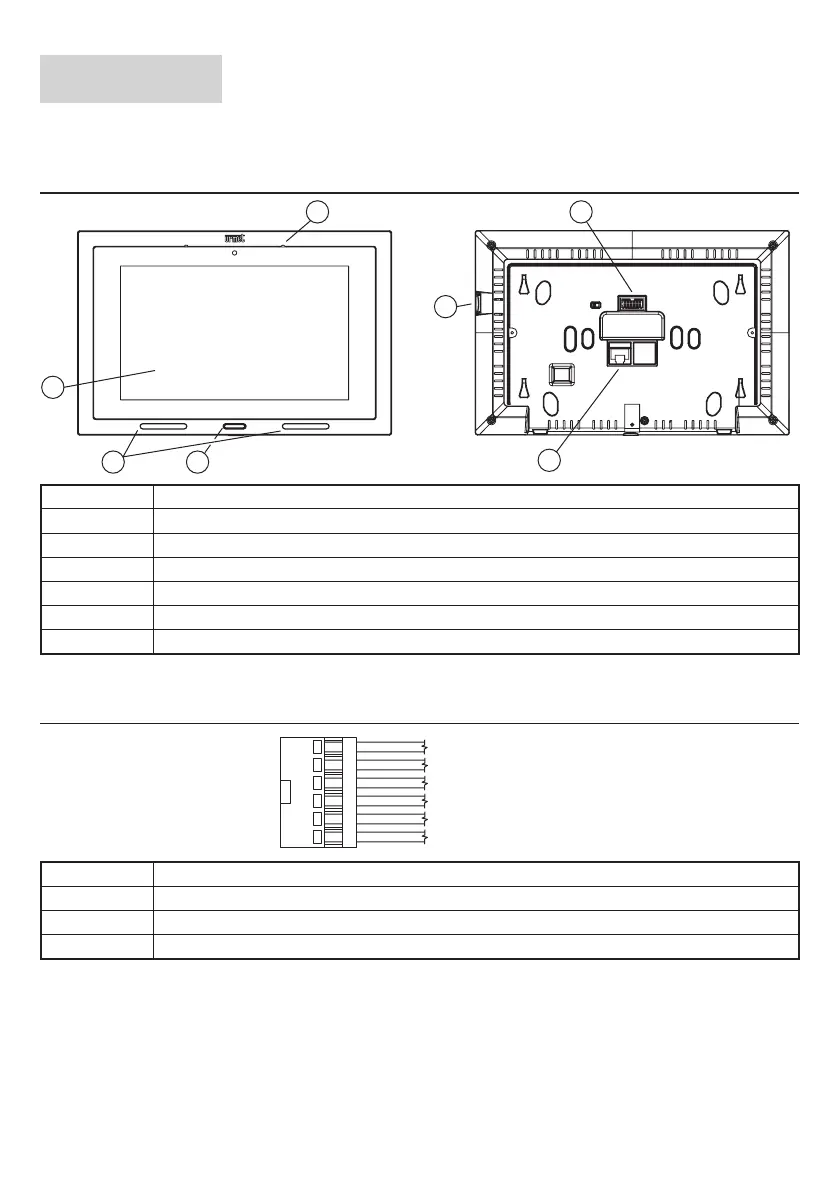

DESCRIPTION OF COMPONENTS AND CHARACTERISTICS
6
1
5
4 3
2
7
1
Display touchscreen 7”
2
Microphone
3
Backlit blue Home button
4
Speakers
5
Micro SD card
6
12-way connector for connection to the system
7
LAN connector with POE power supply (DOORPHONE POE PORT)
DESCRIPTION OF THE WIRES FOR CONNECTION TO THE
SYSTEM
Purple wire
Purple wire
Yellow wire
Yellow wire
Brown wire
Orange wire
9 - 11
Panic Alarm: purple colour wire (PANIC)
10 - 12
Floor Call: yellow colour wire (FC)
4
Additional ringtone: brown colour wire (S-)
3
Additional ringtone: orange colour wire (S+)
