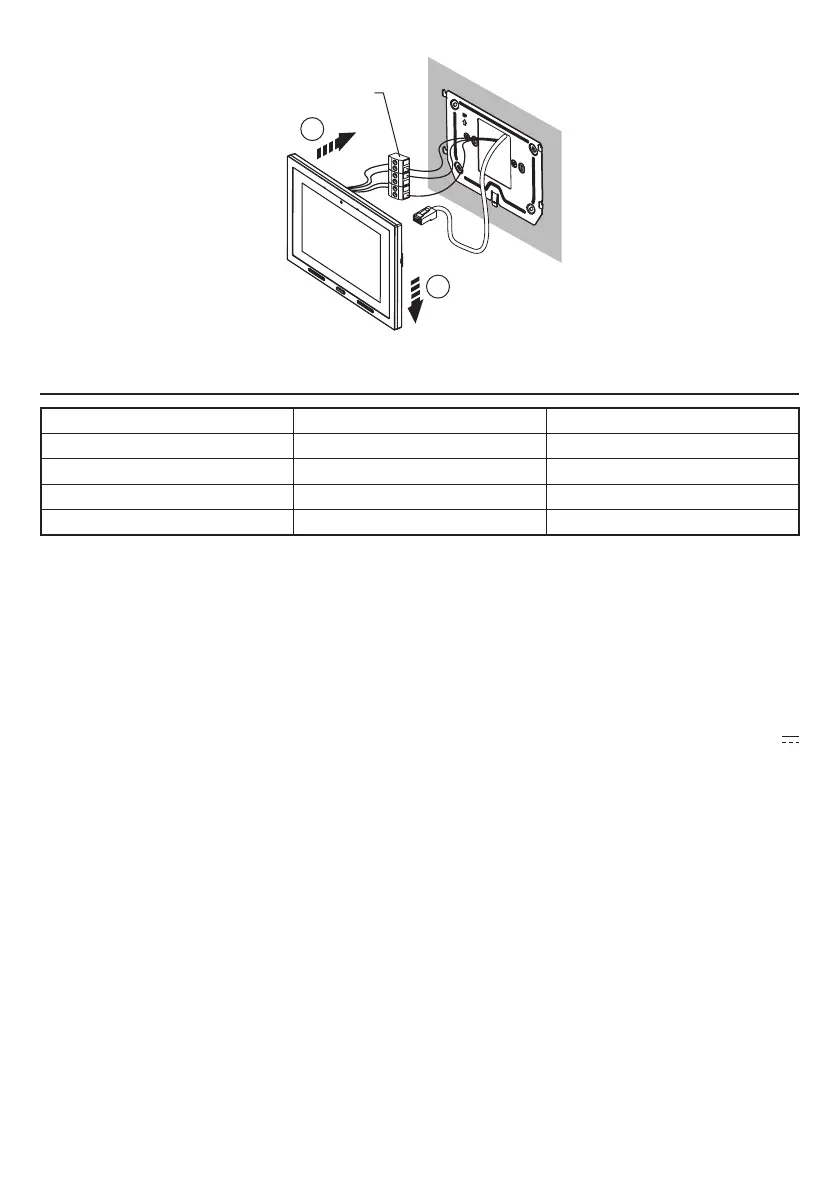

8
DS1717-056
1
Not supplied
2
DISTANCES, SECTIONS, CABLES AND TECH SPECS
Type of connection Max distance Min - max cross section
Call to fl oor level 30 m 0,5 - 1 mm
2
Panic Alarm 30 m 0,5 - 1 mm
2
Call repeating 30 m 0,5 - 1 mm
2
LAN 100 m CAT5e (*)
(*) To ensure longest-range video door phone operation, the cable must be a class 5e device and the
twisted pairs’ cross section must be AWG24.
The maximum resistance of the individual wires must not exceed 10ohm/100m.
The cable must be up to the following standards:
- EIA/TIA 568-B.2 or EIA/TIA 568-C.2
- EN50288 3-1
- IEC 61156-5
The connection between the video door phone and POE switch must be ensured by a single cable
without any extra patch cords.
POE input voltage: ..........................................................................................................................48-54 V
Max consumption: ....................................................................................................................................12 W
Display: .................................................................................................................................................. 7” TFT
Touchscreen: .................................................................................................................................. Capacitive
Resolution: ................................................................................................................................ 1024 x 600 px
Brightness: ...................................................................................................................................... 350 cd/m
2
Viewing Angle (H/V): ....................................................................................................................... 106° / 160°
Operating Temperature: .................................................................................................................. -5 to 45°C
Max number of video door phones on the POE ports of switch 1039/44: ..................................................... 2
