± 1/16
.XX=±.06
.XXX=±.03
.XXXX=±.005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
01/17/2013
TITLE
SIZE
D
DWG NO
File Name:18-01-0072B - Manual.dft
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
18-01-0072

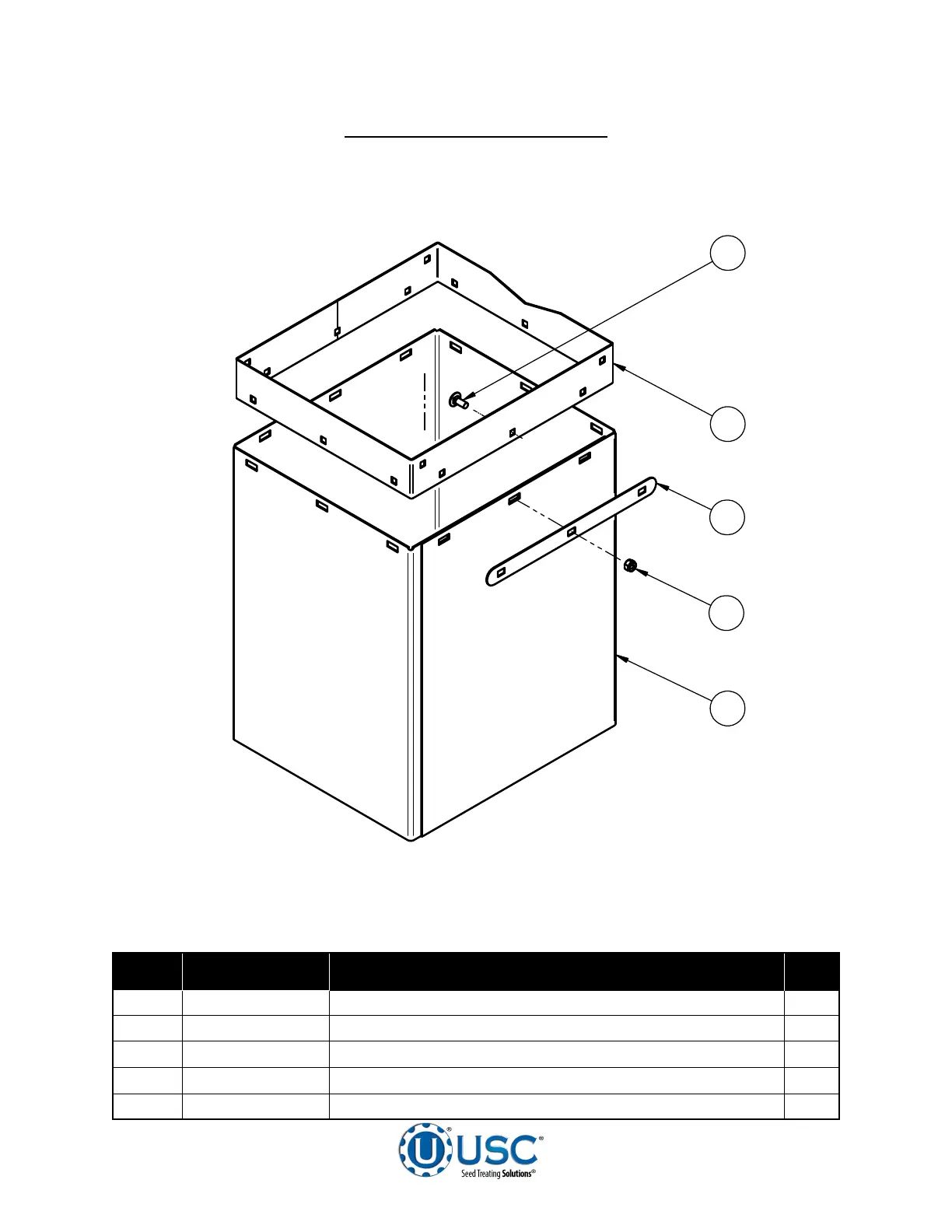

ASSY END CHUTE EXT LPX
Printed 01/22/13 at 9:14
B
REV
± 1/16
.XX=±.06
.XXX=±.03
.XXXX=±.005
±0.50°
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
01/17/2013
TITLE
SIZE
D
DWG NO
File Name:18-01-0072B - Manual.dft
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
18-01-0072
ASSY END CHUTE EXT LPX
Printed 01/22/13 at 9:14
B
REV
REVISION HISTORY
REV DESCRIPTION DATE BY
A INITIAL DRAWING 5-24-11 MLH
B CHANGED CHUTE MATERIAL 7-20-12 MLH
Item # Part # Rev Title Material Qty Length Width
1 05-10-3400 A PLT DSCHG TRTR 11-03-0053 16ga CS GALV 4 12.000 in 1.000 in
2 05-10-3886 B SKIRT DSCHG TRTR LPX2000 11-02-0098 BELT BLK 2PLY 100 RMV X FS 1 67.121 18.000
3 06-01-0171 A BOLT CRG .3125-18X.750 ZP SHORT NECK 21817 FASTENAL 12
4 06-03-0002 A NUT NYL LOCK .313-18 ZP GR5 06-03-0002 37021 FASTENAL 12
5 101FB5 A ADPT END CHUTE EXT LPX2000 11-03-0053 16ga CS GALV 1 53.355 in 2.375 in
14.25
14 1/4"
INSIDE
12.38
12 3/8"
INSIDE
17.00
17"
19.38
19 3/8"
2
3
1
5
4
Item # Part # Rev Title Qty
1 05-10-3400 A PLT DSCHG TRTR 4
2 05-10-3886 B SKIRT DSCHG TRTR LPX2000 1
3 06-01-0171 A BOLT CRG .3125-18X.750 ZP SHORT NECK 12
4 06-03-0002 A NUT NYL LOCK .313-18 ZP GR5 12
5 101FB5 A ADPT END CHUTE EXT LPX2000 1
