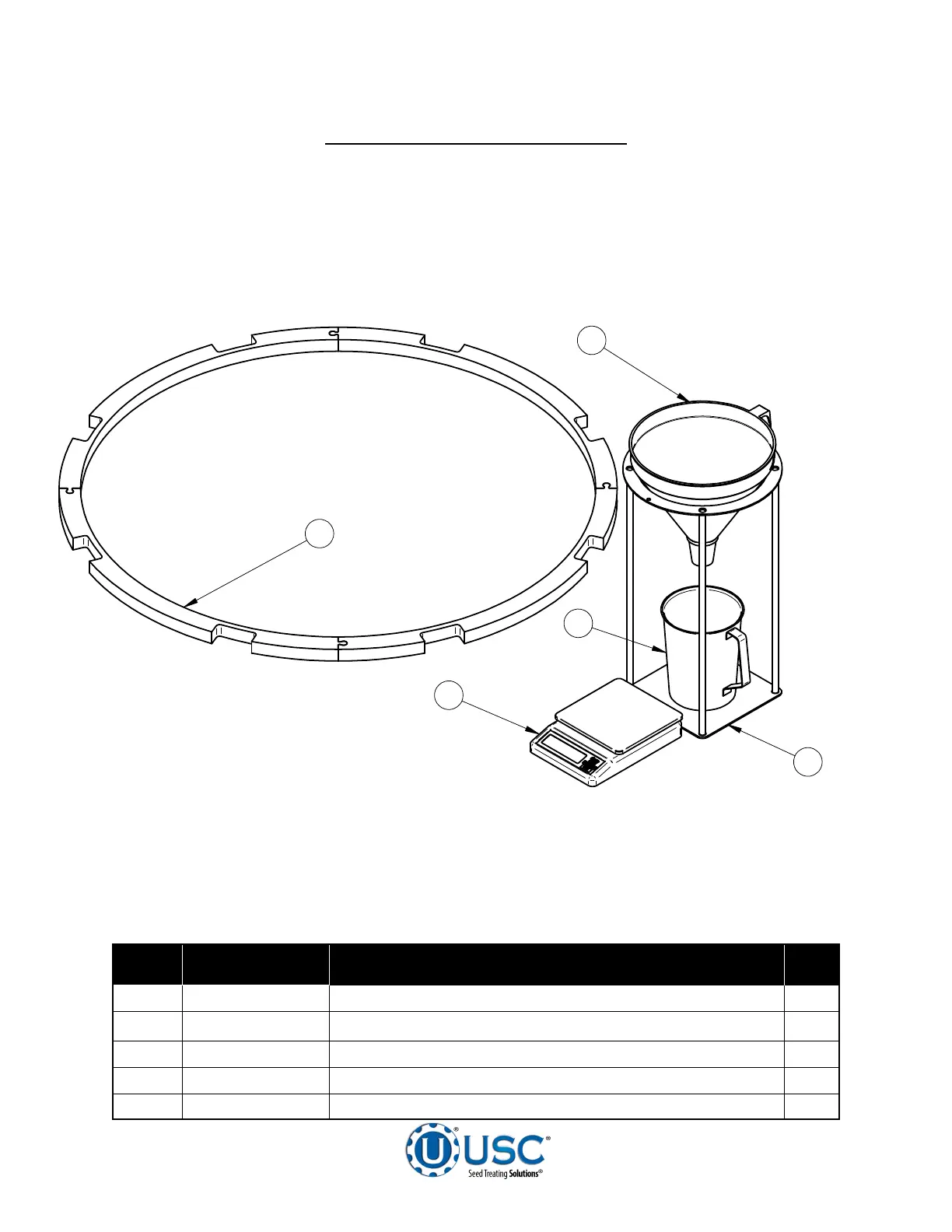

LPX SEED TREATER
Seed Wheel Scale Kit (13-04-0058)
Item # Part #
Description Qty
1 03-19-0051
SCALE, CARDINAL 6.89 X 6.5 11 LBS 1
2 05-03-0248 WDMT CAL CUP FILL FR 1
3 05-10-2463 SEAL BETWEEN FLANGES SMW TO TRTR 4
4 05-11-0123 FUNNEL SMW CALB CUP FILL 1
5 07-02-0008 CUP MEASURE 64OZ SS GRADUATED 1
