Page 119
LPX SEED TREATER

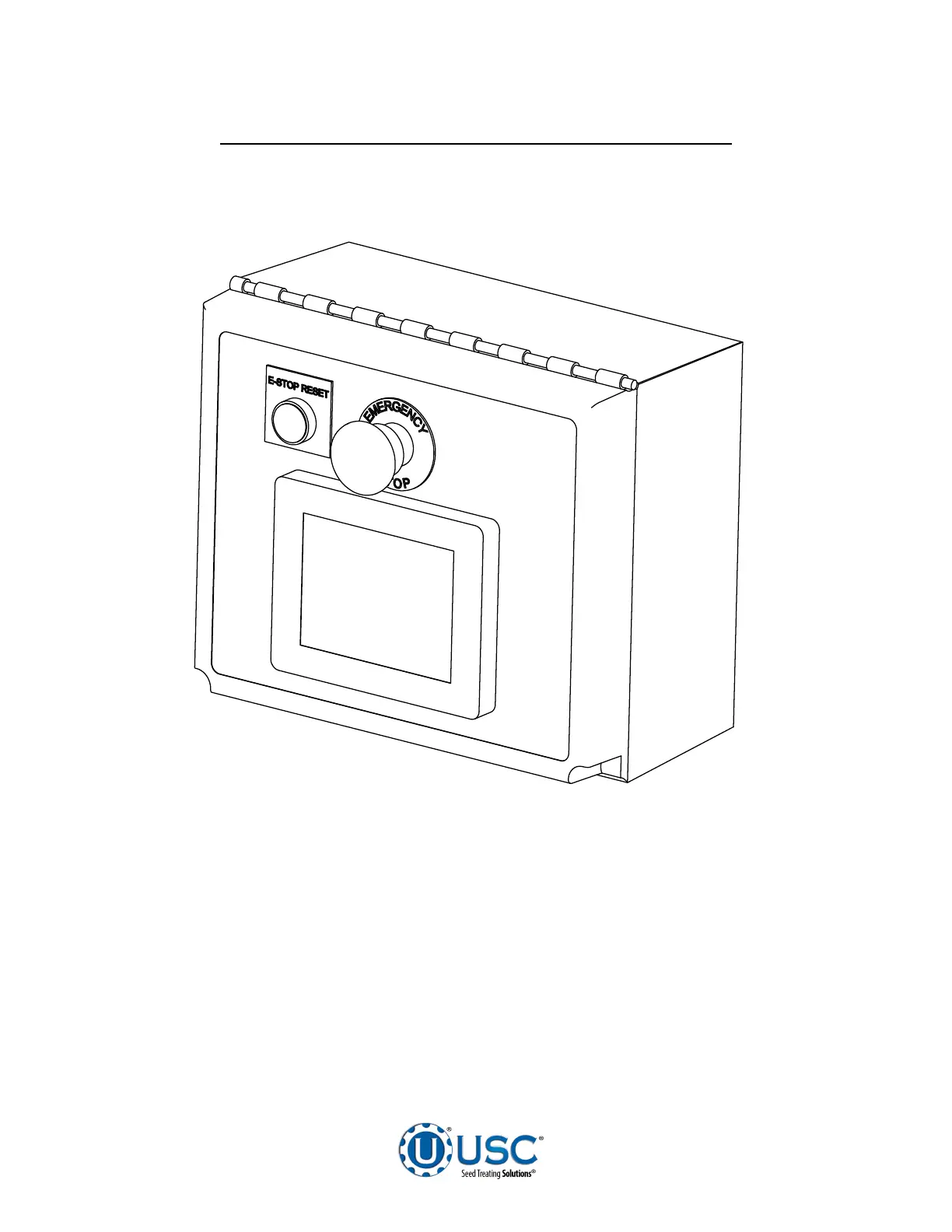

OPTIONAL REMOTE HMI PANEL ASSEMBLY (03-12-0225)
There is an optional remote LPX Manual Treater Control Panel. It allows the operator
to run the treater from up to 25 feet away. If it is ordered with the treater, it will come
with the HMI operation screen already installed. If it is added later as an upgrade, the
HMI will be removed from the original Control Panel and installed in the remote panel.
A plug is included in the kit to plug the hole in the main panel after the HMI is removed.
The remote panel comes with a 10 foot power cord.
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
08/05/2013
TITLE
SIZE
D
DWG NO
File Name:03-12-0225 LPX MAN TRTR (Remote).dft
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
± 1/32
.XX=±.03
.XXX=±.005
.XXXX=±.0005
±0.50°
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
Printed 08/05/13 at 15:54
Material:
Rev
REVISION HISTORY
REV DESCRIPTION DATE BY
A INITIAL DRAWING
