LPX SEED TREATER

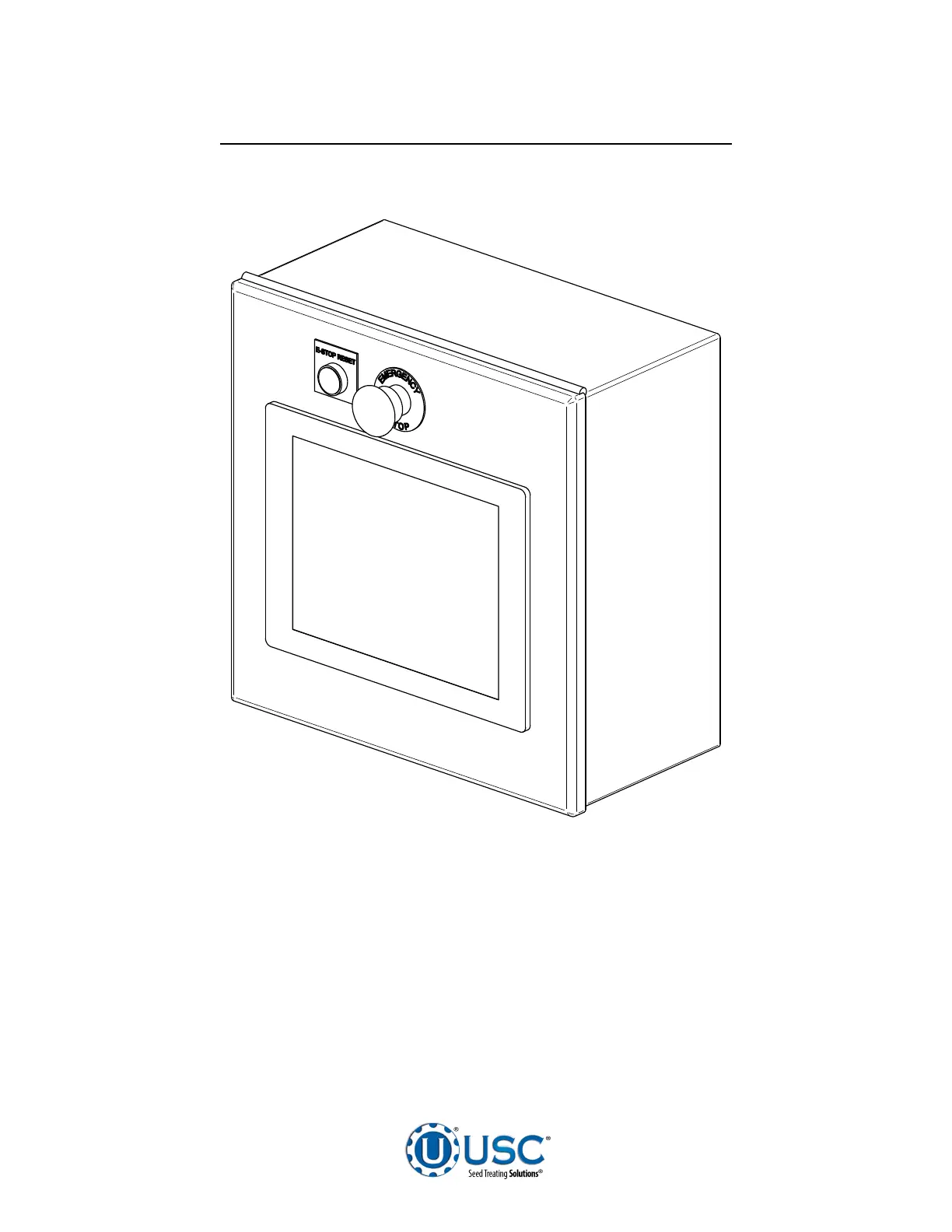

OPTIONAL REMOTE HMI PANEL ASSEMBLY (03-12-0340)
There is an optional remote LPX Automated Treater Control Panel. It allows the
operator to run the treater from up to 25 feet away. If it is ordered with the treater,
it will come with the HMI operation screen already installed. If it is added later as an
upgrade, the HMI will be removed from the original Control Panel and installed in the
remote panel. A plug is included in the kit to plug the hole in the main panel after the
HMI is removed. The remote panel comes with a 10 foot power cord.
