Page 121
LPX SEED TREATER

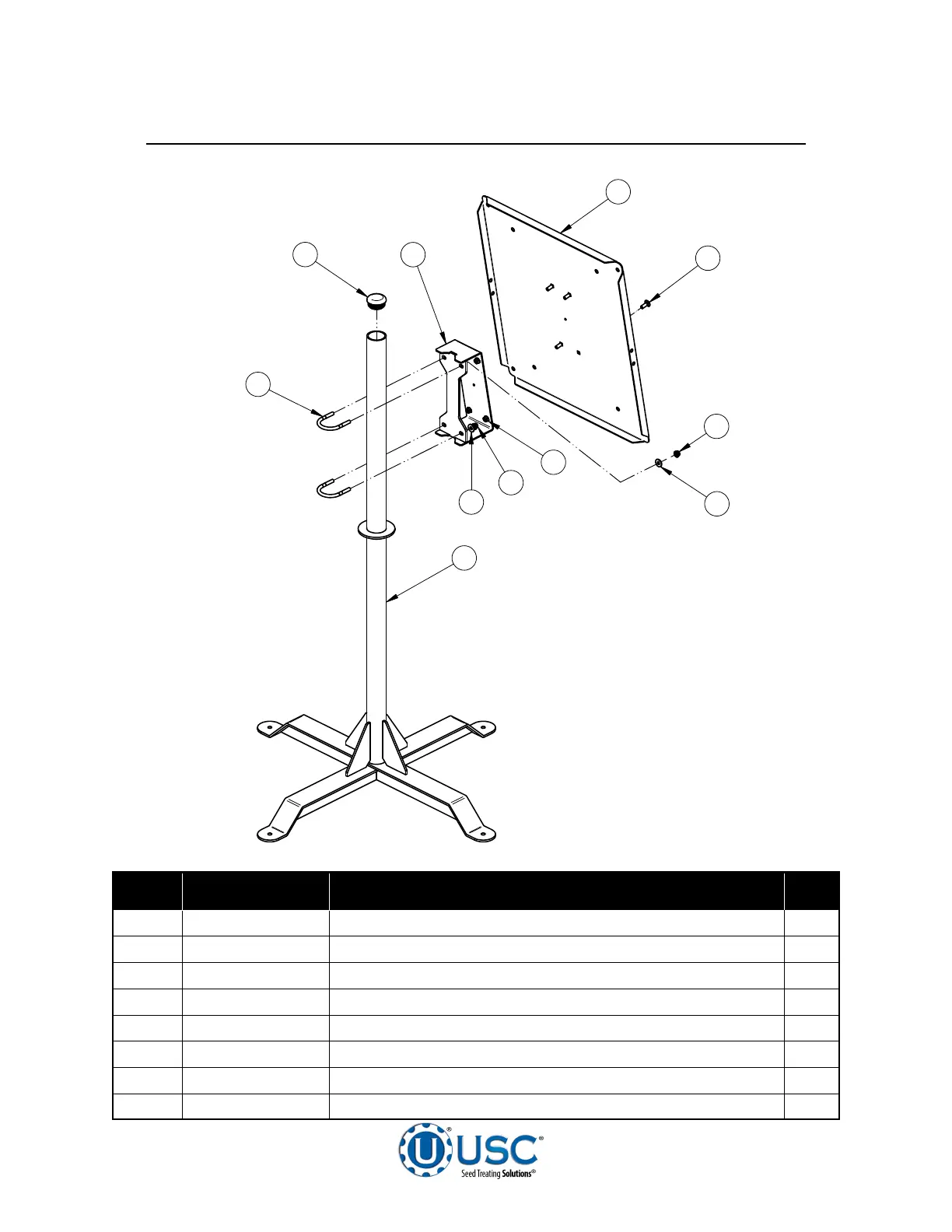

ADJUSTABLE STAND - MAIN CONTROL PANEL ASSEEMBLY (05-03-1471)
Item # Part #
Description Qty
1 05-03-1479
WDMT PNL ADJ 1
2 05-03-1545 WDMT PANEL STAND 1
3 06-01-0115 BOLT CRG .375-16 X 1.00 ZP GR5 4
4 06-01-0287 BOLT U .375-16 X 2.50 X 3.125 ZP 2
5 06-03-0014 NUT LOCK FLG .375-16 ZP GR5 8
6 06-05-0004 WSHR FLAT .375 ZP 4
7 06-10-0056 PLUG TBG RD RIB POLY 2.38 X .156W 1
8 103651 PLT PNL MT 1
DRAWN
CHECKED
ENG APPR
NAME
davidw
DATE
11/19/2014
TITLE
SIZE
D
DWG NO
File Name:05-03-1471 = MCP Stand (A5).dft
SHEET 1 OF 2
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
INCHES:
TOLERANCES:
FRACTIONS DECIMALS ANGLES
± 1/32
.XX=±.06
.XXX=±.003
±0.50°
DO NOT SCALE DRAWING
U S C, L L C.
Sabetha, Kansas 66534 USA
THIS MATERIAL IS THE CONFIDENTIAL AND PROPRIETARY PROPERTY OF
USC, LLC. AND SHALL NOT BE USED WITHOUT PERMISSION.
05-03-1471
Printed 11/19/14 at 16:55
A
Rev
ASSY PNL FRM 4PUMP SAP
REVISION HISTORY
REV DESCRIPTION DATE BY
A INITIAL DRAWING 1/9/2014 MLH
001 WDMT BECAME ASSAMEBLY 1/23/2014 LGH
002
REVISE 05-03-1479 & 05-03-1480, ADD 103651,
06-01-0115. REV QTY ON 06-03-0003 FROM 4 TO 8.
2/25/2014 LGH
003 DELETE 06-03-0003 NUTS, ADD 06-03-0014 NUTS 3/11/2014 LGH
004 REPLACED 05-03-1480 WITH 05-03-1545 7/15/2014 austinw
ISOMETRIC VIEW
EXPLODED
1
4
6
7
Item Number Document Number Quantity Title
1 05-03-1479 1 WDMT PNL ADJ
2 05-03-1545 1 WDMT PANEL STAND
3 06-01-0115 4 BOLT CRG .375-16 X 1.00 ZP GR5
4 06-01-0287 2 BOLT U .375-16 X 2.50 X 3.125 ZP
5 06-03-0014 8 NUT LOCK FLG .375-16 ZP GR5
6 06-05-0004 4 WSHR FLAT .375 ZP
7 06-10-0056 1 PLUG TBG RD RIB POLY 2.38 X .156W
8 103651 1 PLT PNL MT
NOTES:
PANEL HEIGHT AND ROTATION CAN BE ADJUSTED.1.
3
8
2
5
5
6
5
