Installation
03/19 FlowTimer+ Hub Set 11
6 Installation
6.1 Mounting the Hub on the Mobile phone holder

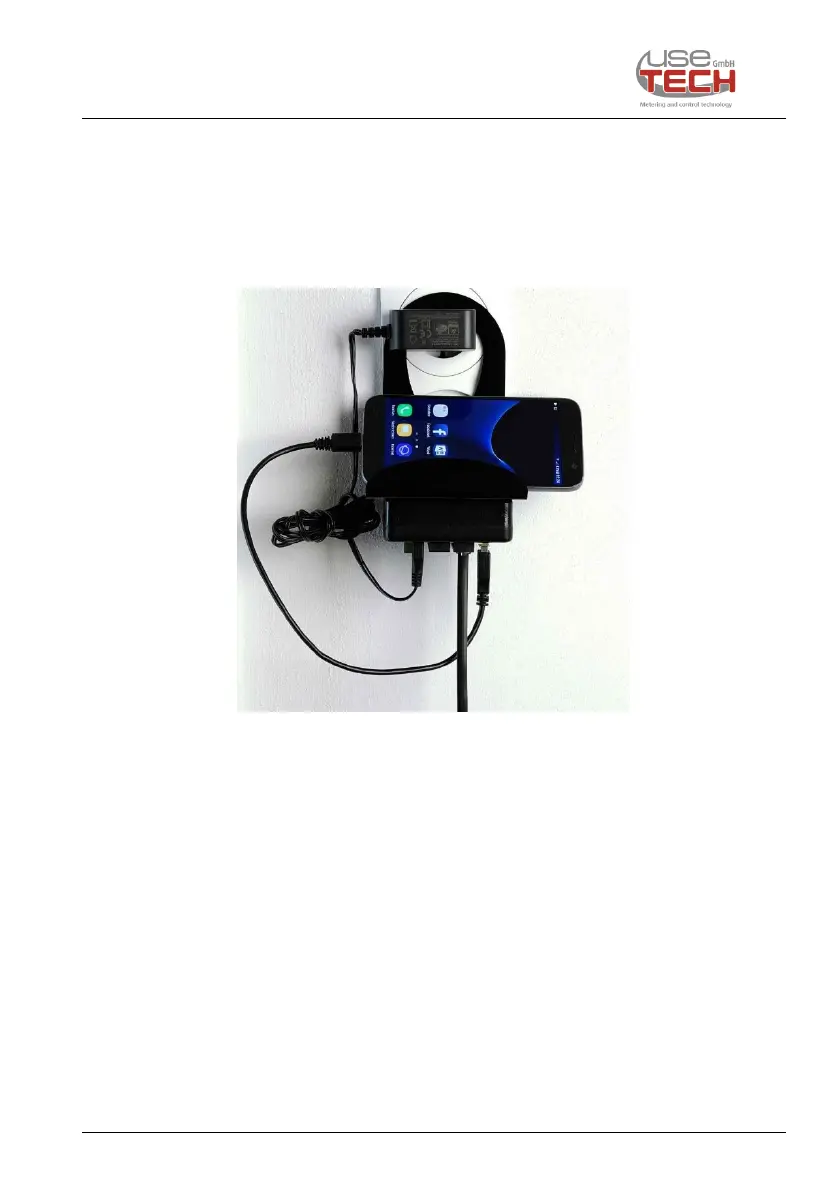

Fig. 6.1: FlowTimer+ Hub mounted on mobile holder
As shown in Figure 6.1, the FlowTimer+ Hub can be glued to the
hand holder from below using the supplied Power Strip.
The plugged-in power supply unit then holds the
Mobile phone holder with hub and if required also
the smartphone on the wall.
