Installation
03/19 FlowTimer+ Hub Set 15
6.5 Potential-free alarm output

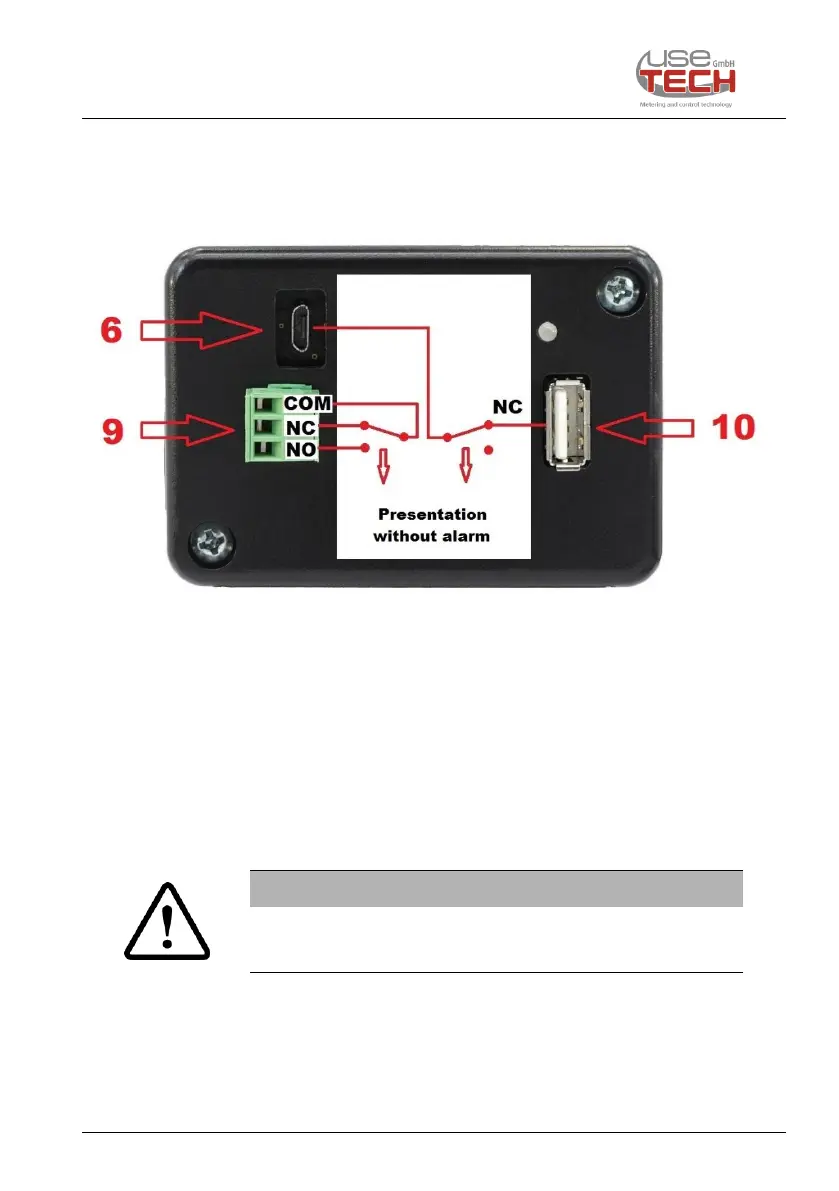

Fig. 6.3: FlowTimer+ Hub Scheme Alarm Contact
The illustration above shows the FlowTimer+ Hub at rest (without
alarm).
Without alarm COM is internally connected to NC.
In case of alarm COM is internally connected to NO.
Never connect mains voltage!
The contact load capacity is 30VDC / 2A
