Installation
03/19 FlowTimer+ Hub Set 12
6.2 Mounting the Hub on a pipeline

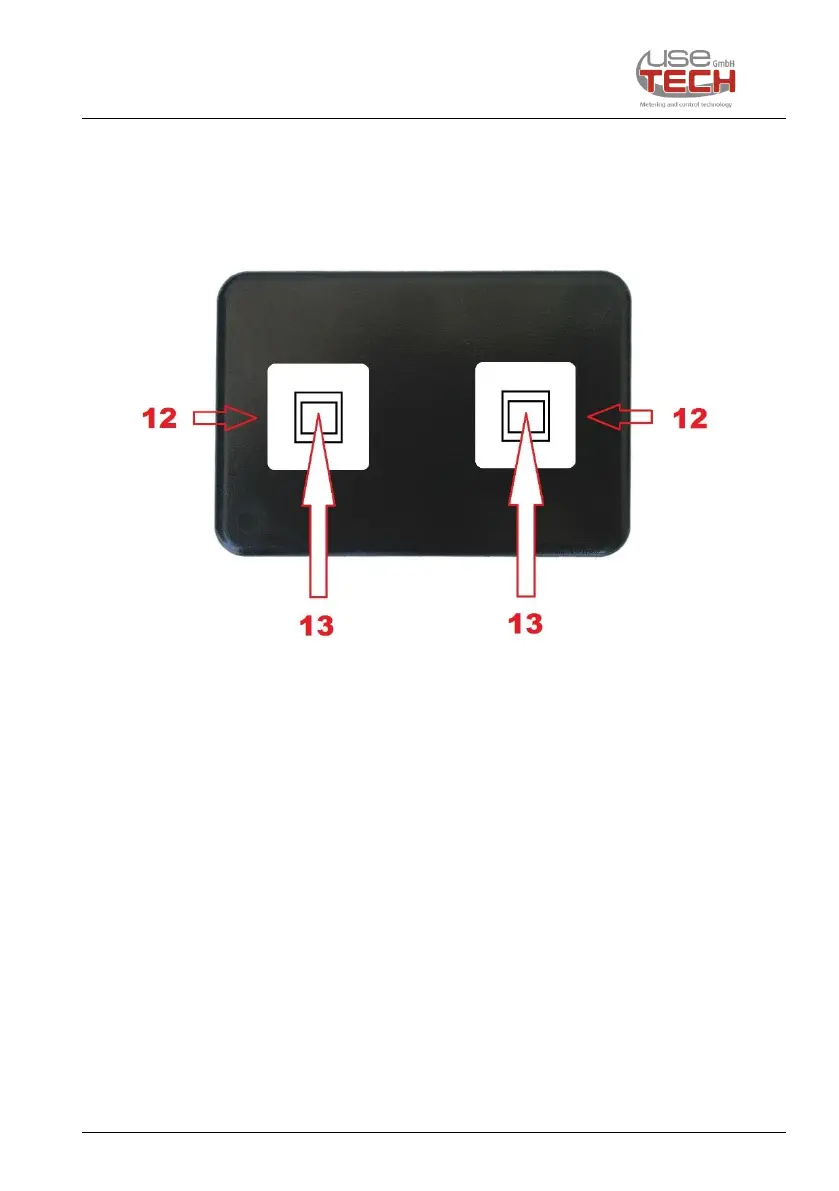

Fig. 6.2: FlowTimer+ Hub Rear view with mounting sockets
Stick the self-adhesive mounting bases (12) to the back of the
FlowTimer+ Hub as shown in Figure 6.2. Push the cable ties
(13) from below through the bases and tighten them on the
pipeline.
