IM 25.055AC UA (C/6-01)
AUTOMATIC CHLORINATOR - 3000LB/24HR
30

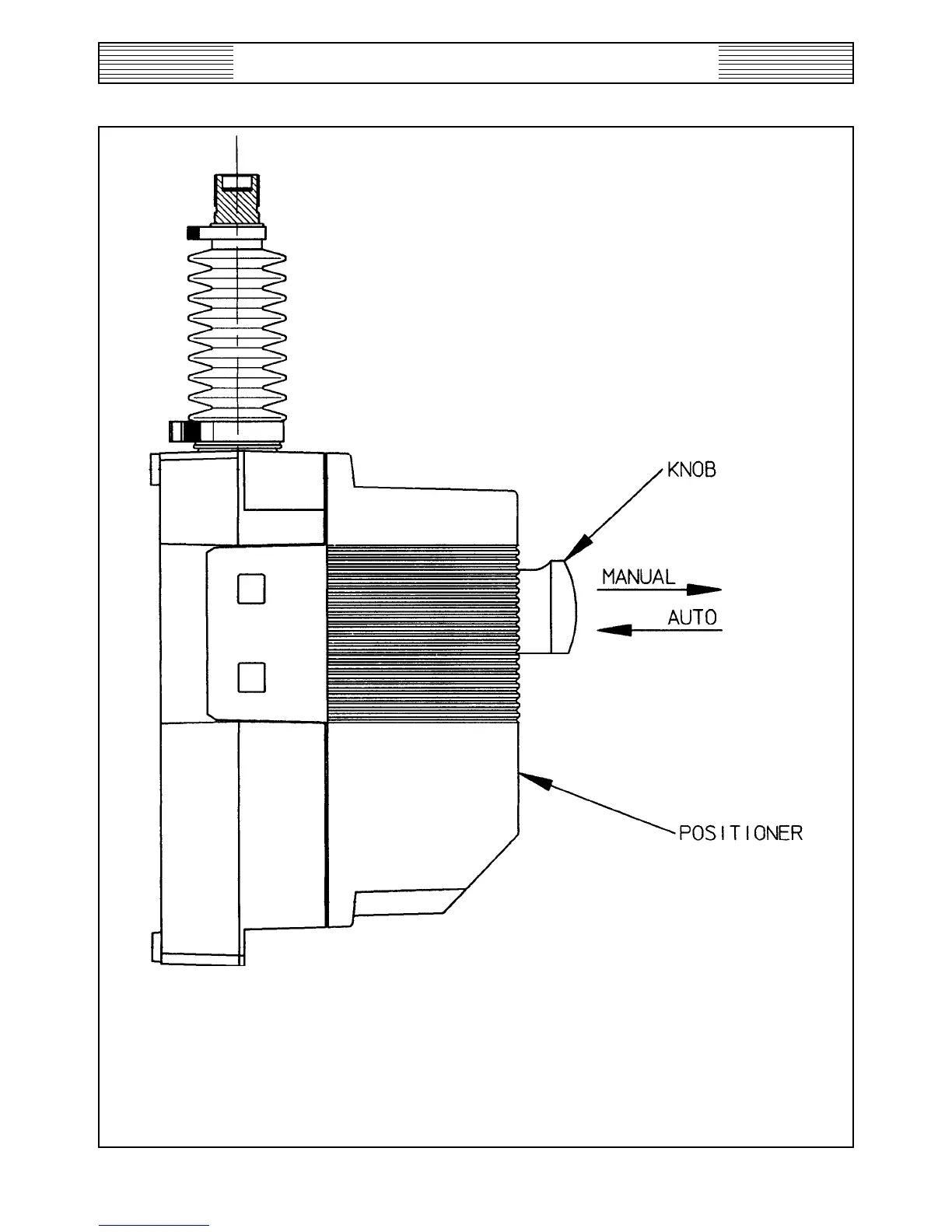

INSTRUCTIONS FOR MANUAL OPERATION - OPERATION
Positioner
40.300.170.010
ISSUE 0 10-95
A. DISENGAGE THE MOTOR BY PULLING THE KNOB OUTWARD.
B. ADJUST THE GAS FEED RATE AS DESIRED BY ROTATING THE
KNOB.
C. TO RETURN TO AUTOMATIC CONTROL, PRESS THE KNOB AND
ROTATE THE KNOB SLIGHTLY UNTIL GEAR TEETH ENGAGE.
