AUTOMATIC CHLORINATOR - 3000LB/24HR
82
WHEN ORDERING MATERIAL, ALWAYS SPECIFY MODEL AND SERIAL NUMBER OF APPARATUS.

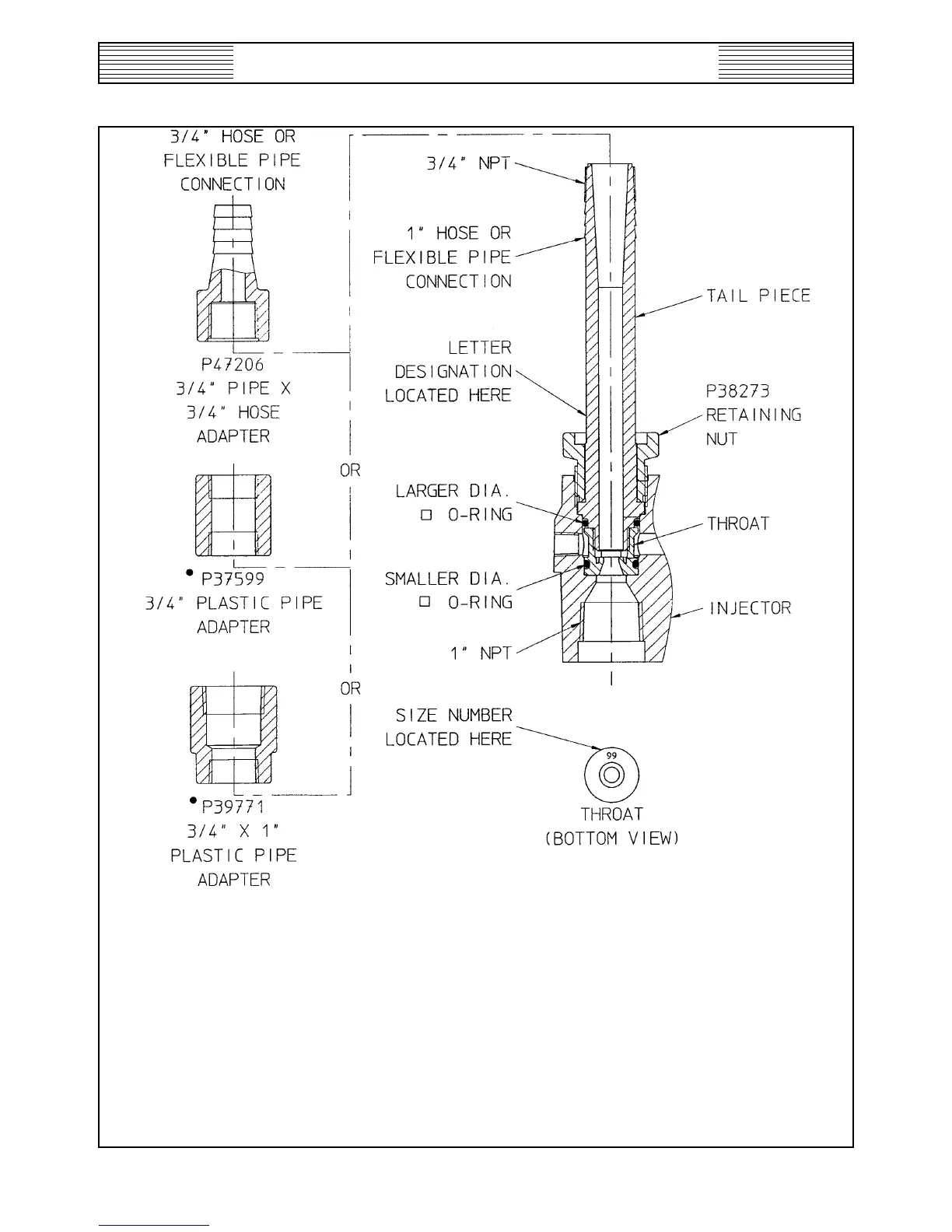

PLASTIC 1” FIXED THROAT INJECTOR AND TAILWAY DETAILS - PARTS
25.200.003.010A
ISSUE 0 10-95
● SOLUTION HOSE MAY BE CONNECTED DIRECTLY TO THE INJECTOR TAILWAY. IF RIGID PVC PIPE IS
USED, A PIECE OF STRAIGHT PIPE AT LEAST EIGHT INCHES LONG SHOULD BE COUPLED TO THE END
OF THE INJECTOR TAILWAY BEFORE ANY ELBOWS, TEES, OR SIMILAR FLOW RESTRICTIONS ARE
USED. THIS IS TO PREVENT ANY FLOW DISTURBANCES THAT COULD AFFECT THE HYDRAULIC
PERFORMANCE OF TAILWAY CONNECTIONS.
NOTE: SIZE NUMBER STAMPED ON THROAT. LETTER DESIGNATION STAMPED ON TAILPIECE.
WHEN REORDERING O-RINGS MARKED ❏ SPECIFY U21275 FOR PAIR. NOT SOLD SEPARATELY.
