IM 25.055AC UA (C/6-01)
AUTOMATIC CHLORINATOR - 3000LB/24HR
83
ASSEMBLY NOTES: ASSEMBLE THROAT, TWO O-RINGS, AND TAILPIECE AS SHOWN, BEFORE INSERTING IN
INJECTOR BODY.
ORDERING INFORMATION:
X STANDARD COMBINATION WHEN HYDRAULIC CONDITIONS PERMIT.
O NON-STANDARD COMBINATION, MAY BE USED IF REQUIRED.
IF NO SYMBOL IS INDICATED, COMBINATION CANNOT BE USED.
WHEN ORDERING MATERIAL, ALWAYS SPECIFY MODEL AND SERIAL NUMBER OF APPARATUS.

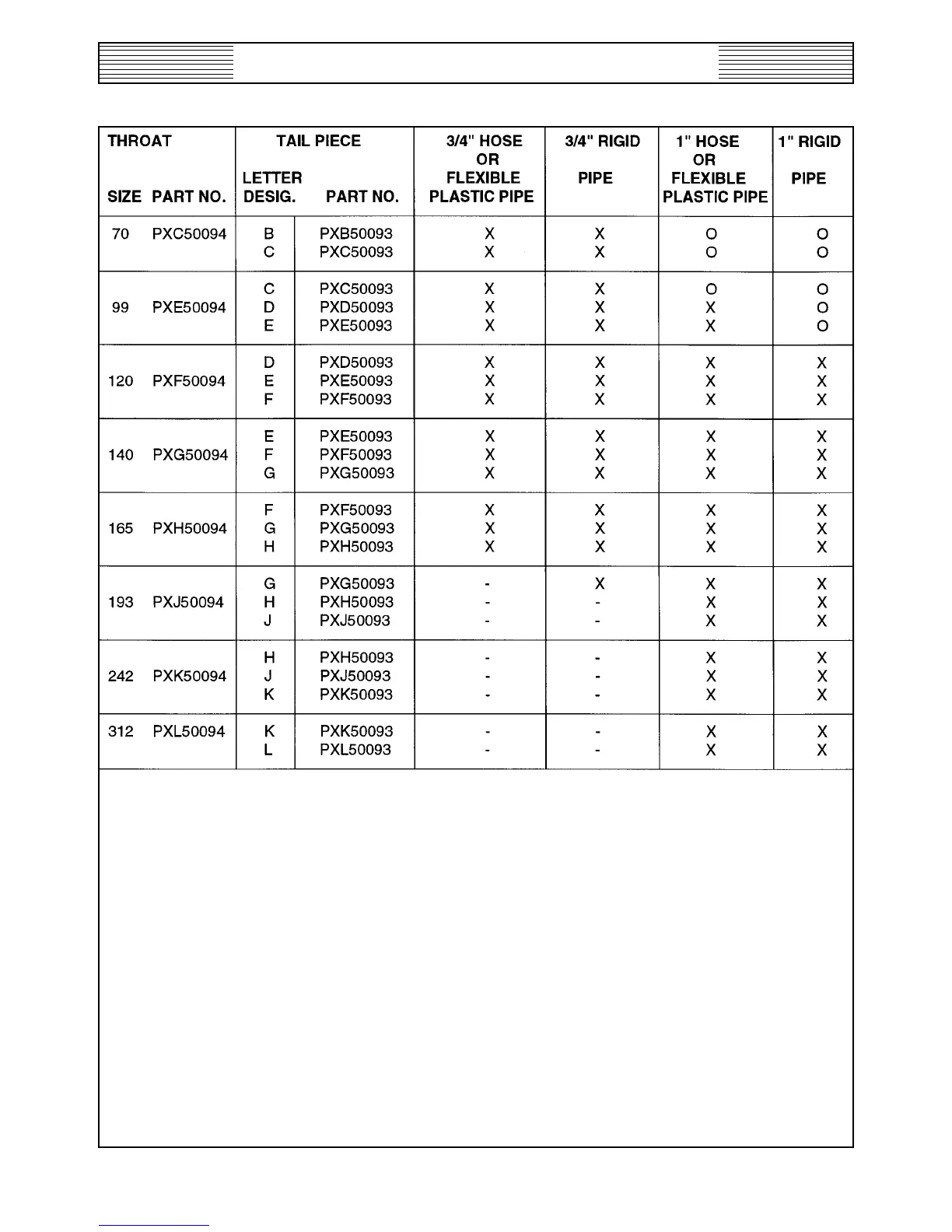

PLASTIC 1” FIXED THROAT INJECTOR AND TAILWAY DETAILS - PARTS LIST
25.200.003.010B
ISSUE 0 10-95
