USR IOT USR-N580 User Manual

USR-N580 User Manual technical support:h.usriot.com
Jinan USR IOT Technology Limited
27
www.usriot.com

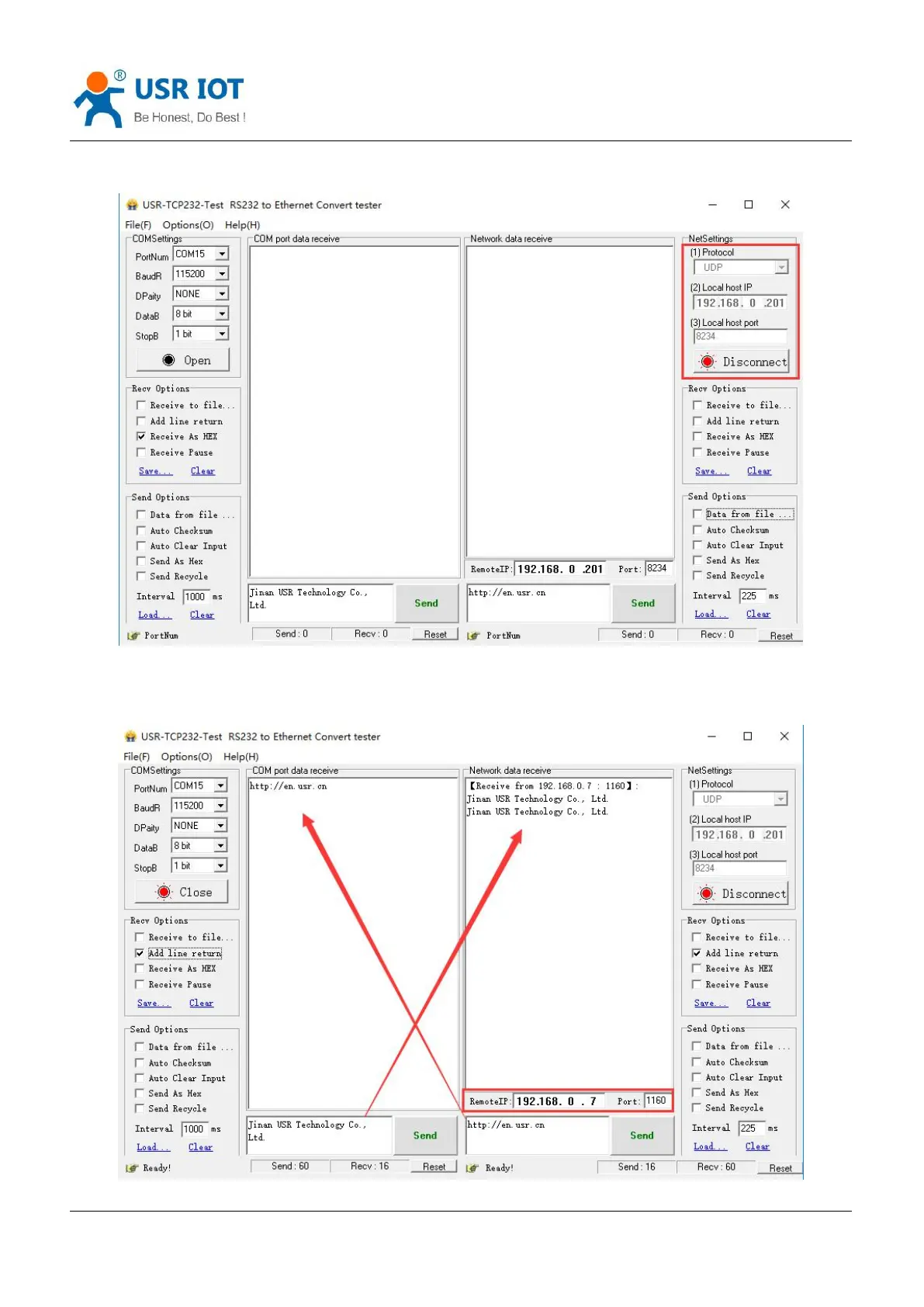

 Open USR-TCP232-Test, set it to UDP mode, Local host IP is the PC’s IP, Local host port is the Remote
port of N580 device. Click Connect.
 Click to open the serial port, first send data from the serial port. After receiving the data, the Remote IP
and Port number of the test software becomes the Local IP and Port of N580. Then can also send data
from network side to the serial port.

USR IOT USR-N580 Specifications

General

Brand	USR IOT
Model	USR-N580
Category	Server
Language	English
