USX-MOUNT XML019 - Solid Concrete Wall Installation

3/8"
(10mm)
2.5"(64mm)
CAUTION: Avoid potential personal injury or property damage!
● Mount the wall plate assembly directly onto the concrete surface
● Minimum solid concrete thickness: 8 in. (203 mm)

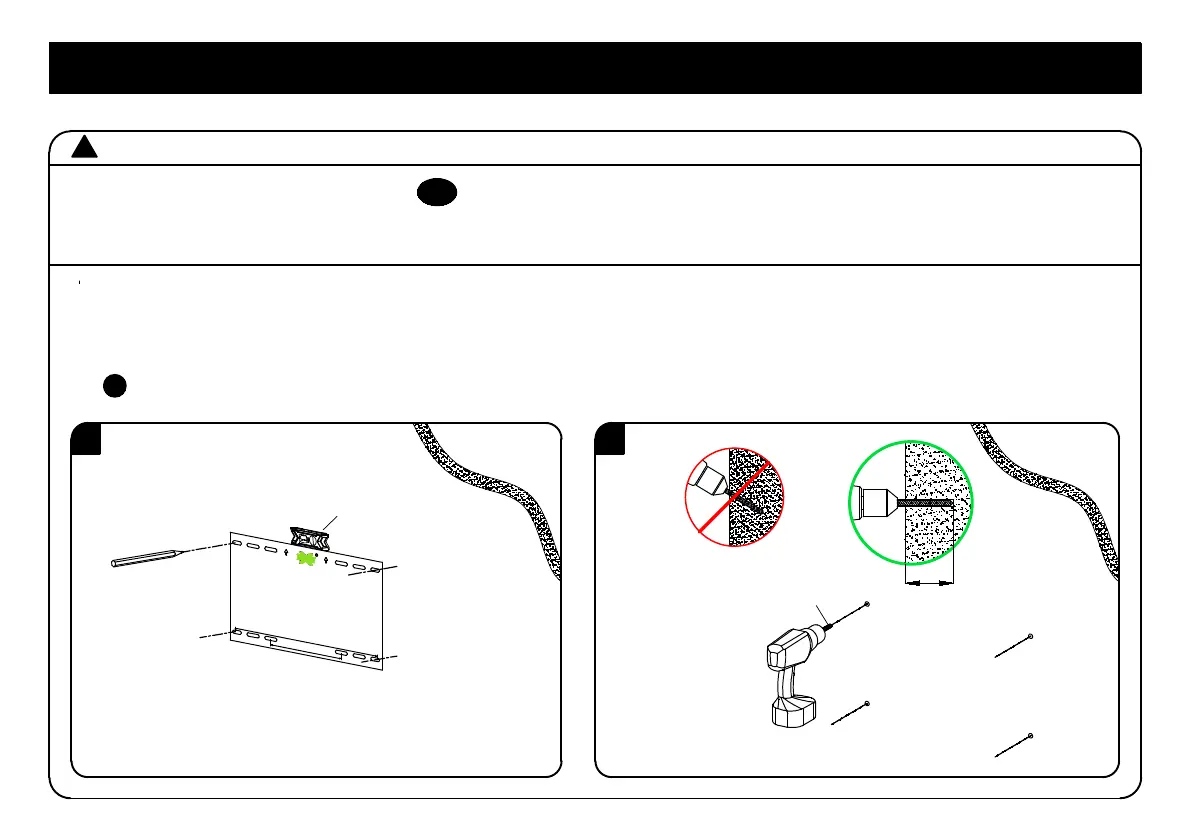

1. Position the mounting template on the wall at your desired height. Level the wall plate and mark the
hole locations.
2. Drill four pilot holes using a 3/8 in. (10 mm) diameter masonry drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2.5 in. (64 mm).
Mounting template
R
16"(406.4mm)
8"(203.2mm)
11
STEP 2B Attach Wall Plate to Solid Concrete Wall
06
!
1 2
!
Level
