USX-MOUNT XML019 - Tilting Angle Adjustment

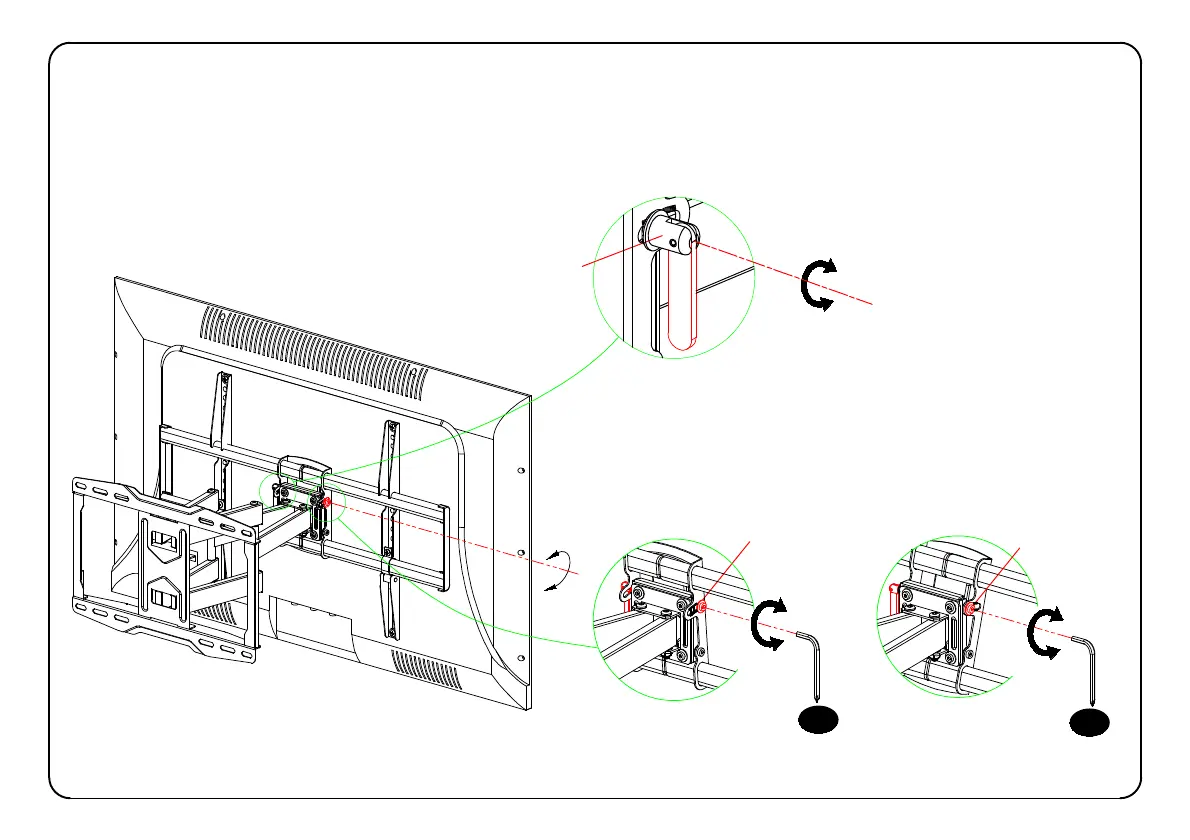

6-2 Tilting angle adjustment (+5°/-15°)：
Loosen handle and tilting bolt, adjust TV to your desired position,
then tighten handle and tilting bolt. Put the handle level when finish.
17
Tilting bolts
+5°
-15°
Tighten
Loosen
Tighten
Loosen
+5°
-15°
Tilting bolts
Handle
Tighten
Loosen
