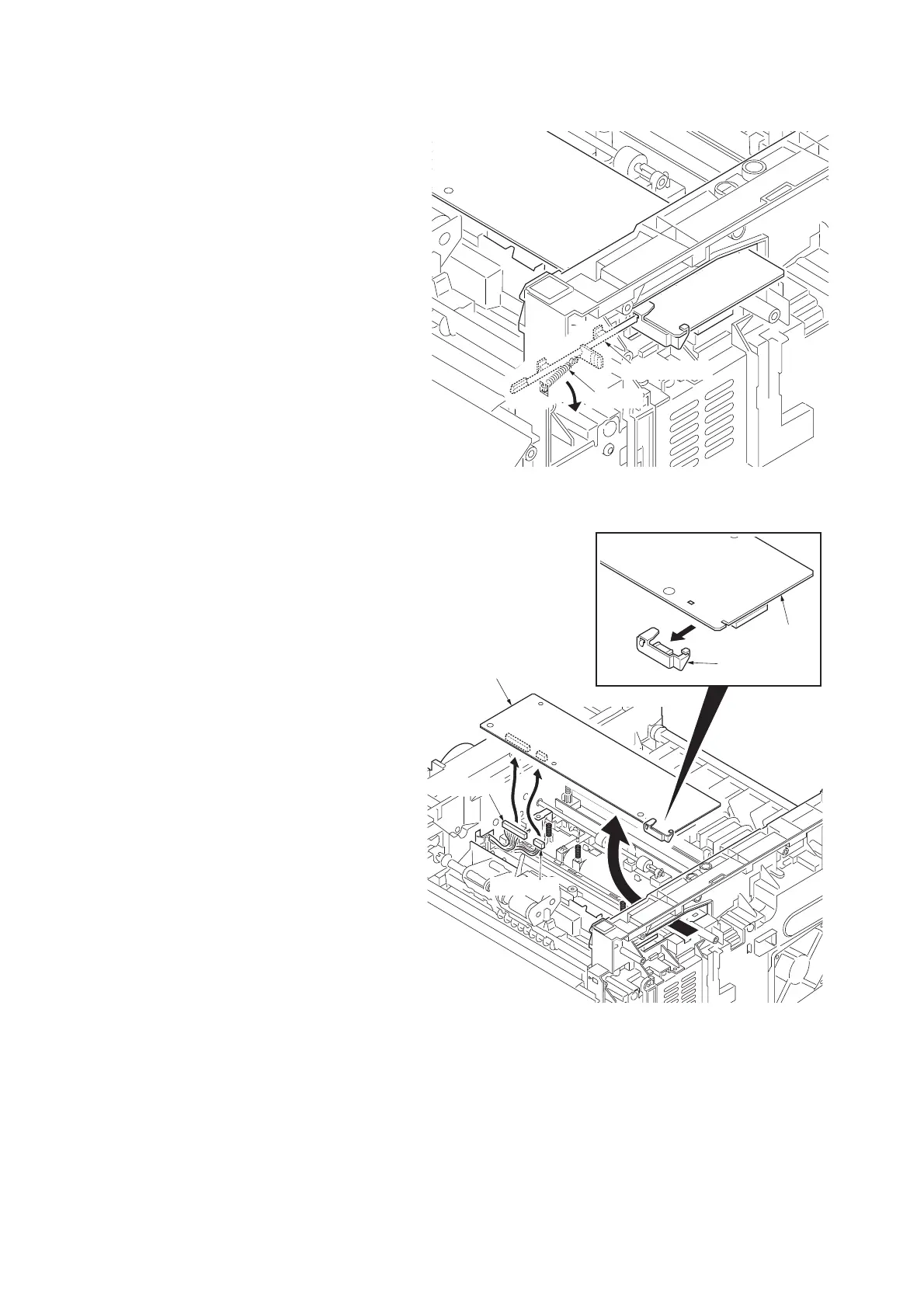

13. Remove the spring.
14. Remove the cassette pin.
Figure 1-5-36
15. Remove two connectors and then remove
the high voltage PWB.
16. Remove the cassette pin holder from the
high voltage PWB.
Figure 1-5-37
Spring
Cassette pin
Cassette pin
holder
High voltage PWB
High voltage
PWB
Connector
Connector
YC202
YC203
