Utax LP 3335 - MP Tray Paper Feed Section

2L0
2-1-2
(2) MP tray paper feed section

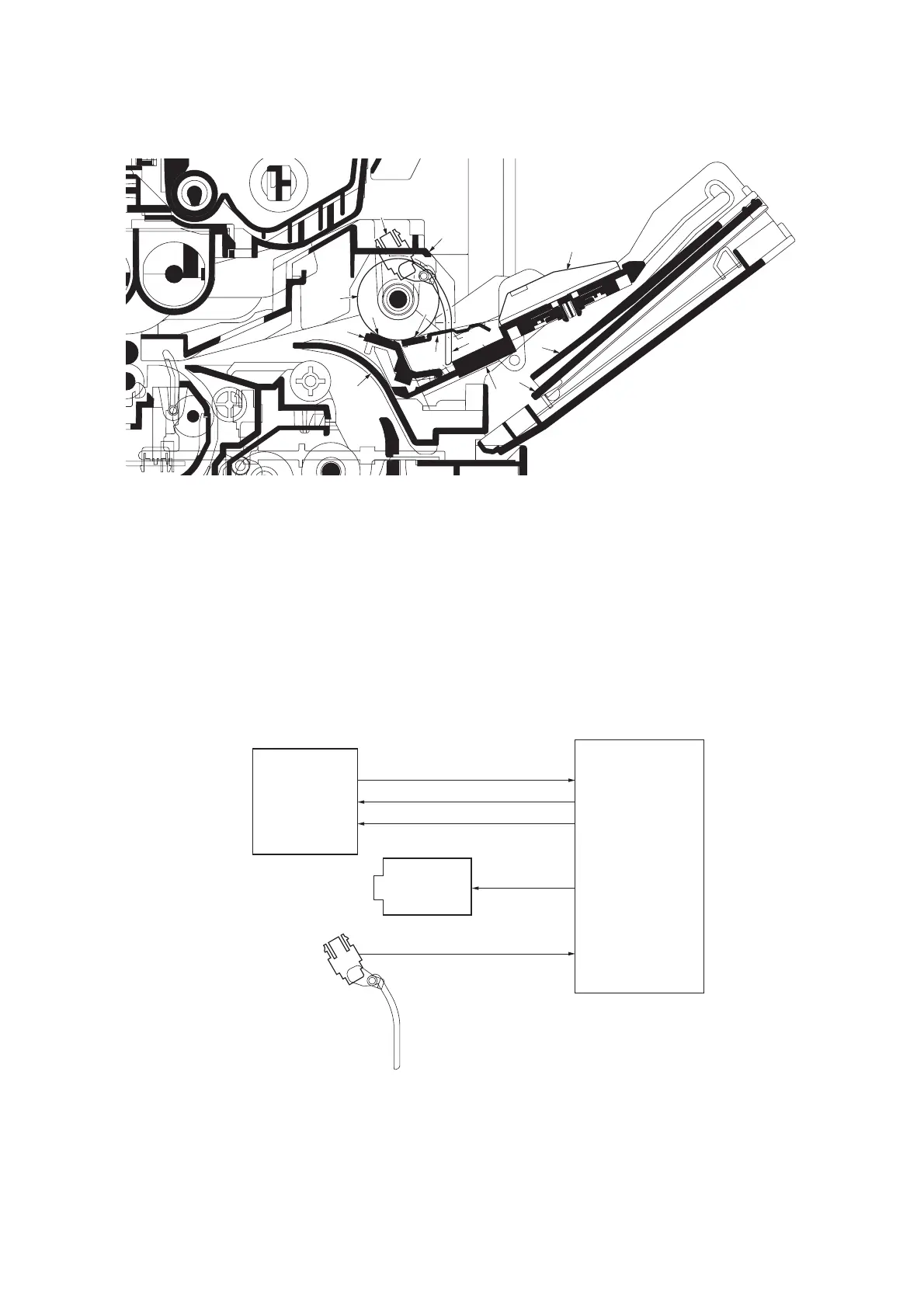

Figure 2-1-3 MP tray paper feed section
Figure 2-1-4 MP tray paper feed section block diagram
1
2
6
8
5
9
4
7
10
11
12
3
13
(1) MP paper feed roller
(2) MPF separation pad
(3) MPF separator
(4) MPF bottom plate
(5) MPF friction pad
(6) MP paper sensor
(7) Actuator (MP paper sensor)
(8) MPF frame
(9) MPF guide R/L
(10) MPF base
(11) MPF middle tray
(12) MPF upper tray
(13) MPF turn guide
MMOTRDYN
MPFDRN
MP paper sensor
MP paper
feed solenoid
Main motor
Control PWB
HANDSN
MOTCLK
REMOTEN
YC330-3
YC335-2
YC331-3
YC331-4
YC331-5
