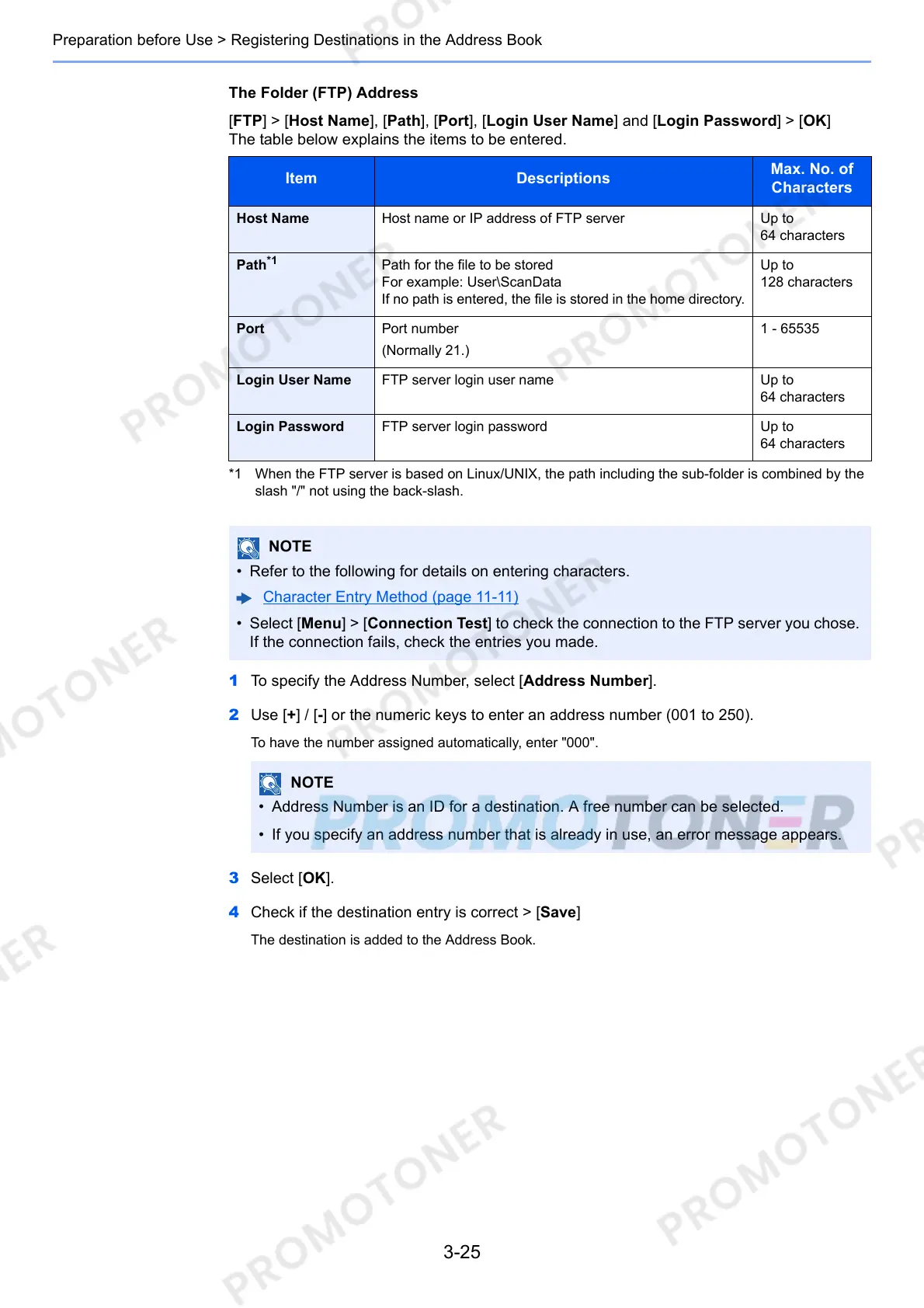

3-25
Preparation before Use > Registering Destinations in the Address Book
The Folder (FTP) Address
[FTP] > [Host Name], [Path], [Port], [Login User Name] and [Login Password] > [OK]
The table below explains the items to be entered.
1 To specify the Address Number, select [Address Number].
2 Use [+] / [-] or the numeric keys to enter an address number (001 to 250).
To have the number assigned automatically, enter "000".
3 Select [OK].
4 Check if the destination entry is correct > [Save]
The destination is added to the Address Book.
Item Descriptions
Max. No. of
Characters
Host Name Host name or IP address of FTP server Up to
64 characters
Path
*1
*1 When the FTP server is based on Linux/UNIX, the path including the sub-folder is combined by the
slash "/" not using the back-slash.
Path for the file to be stored
For example: User\ScanData
If no path is entered, the file is stored in the home directory.
Up to
128 characters
Port Port number
(Normally 21.)
1 - 65535
Login User Name FTP server login user name Up to
64 characters
Login Password FTP server login password Up to
64 characters
• Refer to the following for details on entering characters.
Character Entry Method (page 11-11)
•Select [Menu] > [Connection Test] to check the connection to the FTP server you chose.
If the connection fails, check the entries you made.
• Address Number is an ID for a destination. A free number can be selected.
• If you specify an address number that is already in use, an error message appears.
