Remote Booster Power Supply Technical Reference Manual 23

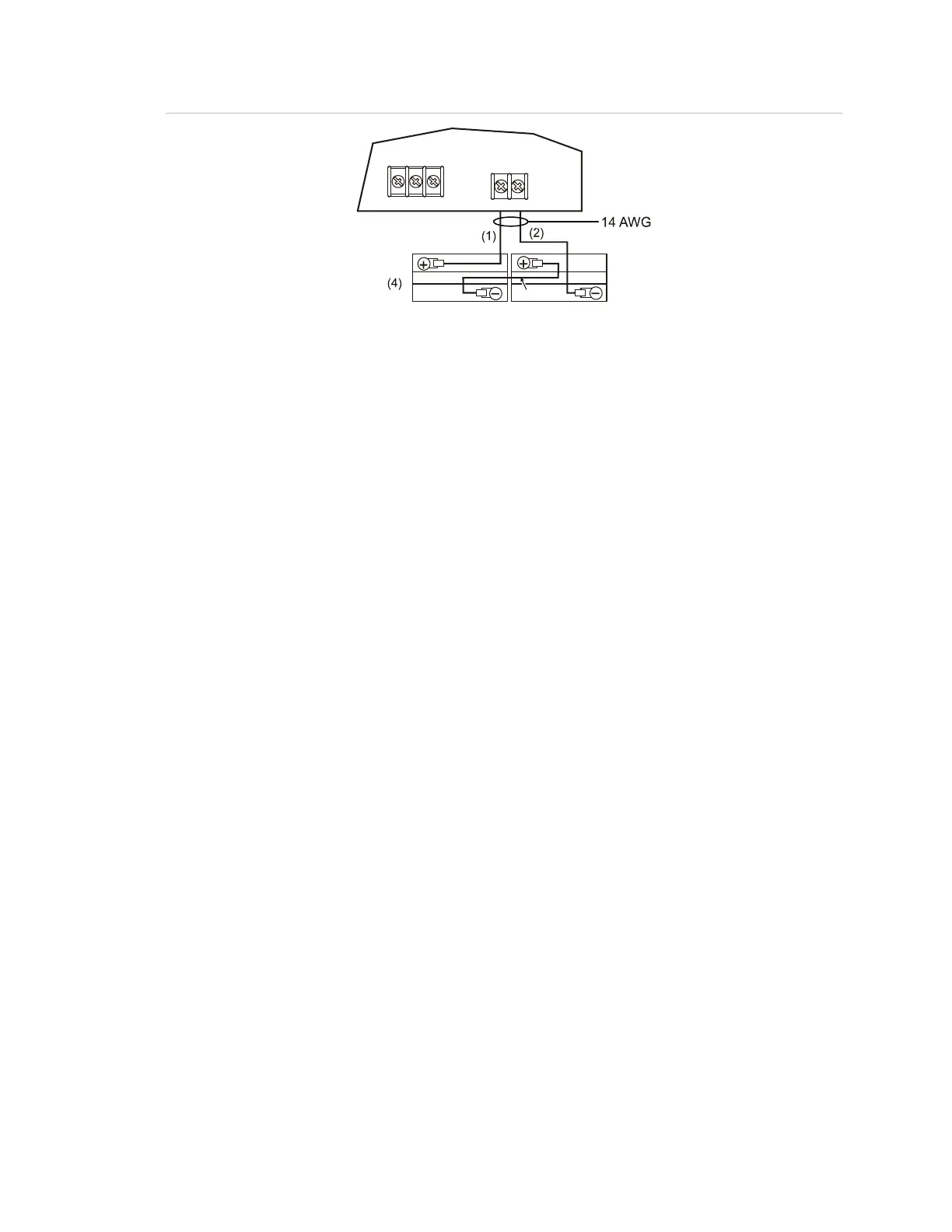

Figure 12: Battery wiring
LNG
+
-
TB3
TB4
(3)
(1) Red
(2) Black
(3) Blue
(4) Top view
