56 Remote Booster Power Supply Technical Reference Manual
CDR-3 Coder to Genesis visibles and conventional
audibles

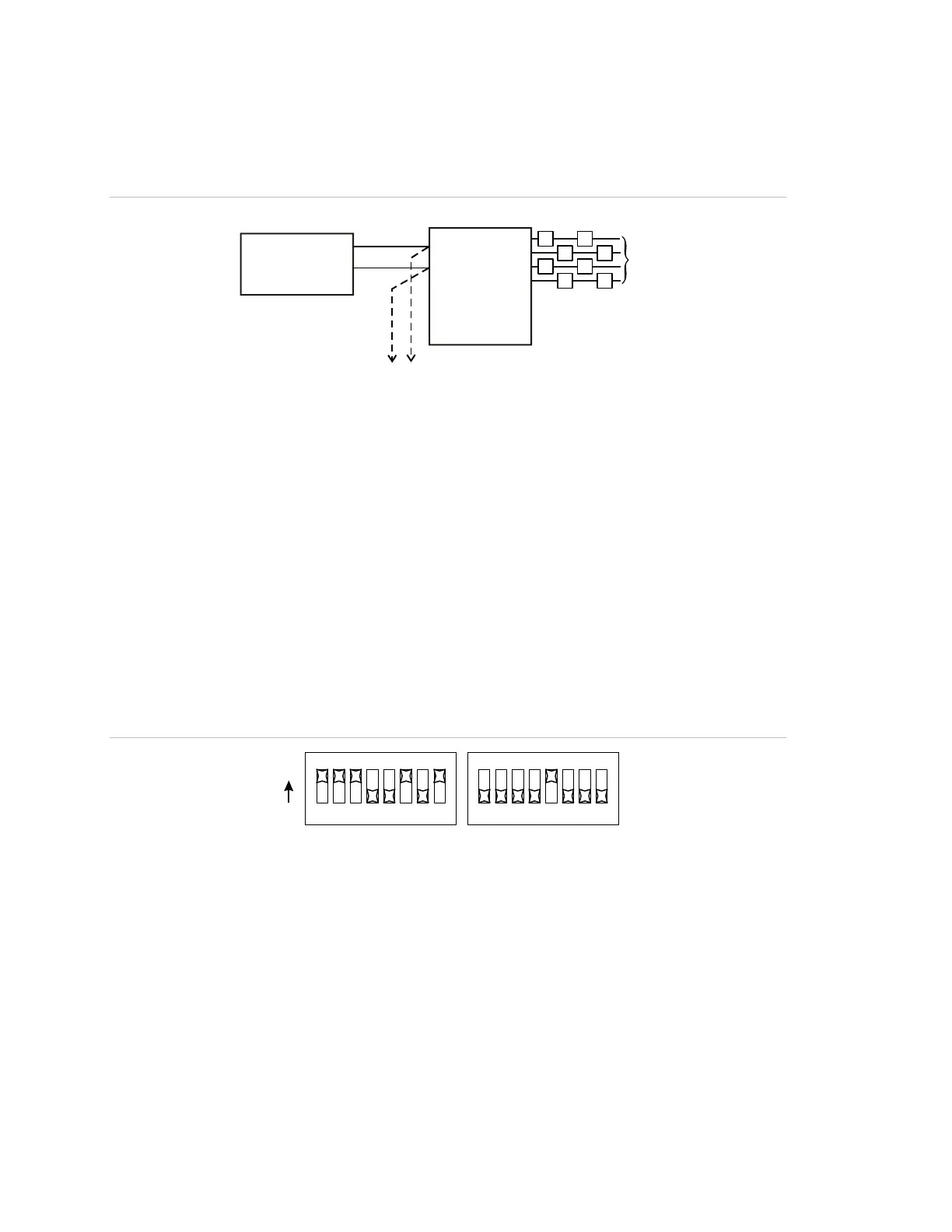

Figure 44: CDR-3 Coder to Genesis visibles and conventional audibles
G
G G
GG
A
A
AA
(11)
(1)
(2)
(3)
(4)
BPS
(7)
(8)
(9)
(10)
(5)
(6)
(12)
(1) NAC visible circuit
(2) NAC/CDR-3 audible circuit
(3) Sense 1
(4) Sense 2
(5) Mode: ND
(6) NACs: CONT, SF
(7) NAC1
(8) NAC 2
(9) NAC 3
(10) NAC 4
(11) To next BPS or EOL resistor
(12) To next device or EOL resistor
DIP switch settings for this application
BPS DIP switches can be set this way for the application to work correctly. Refer
to “Setting the DIP switches” for other options.
NAC1 and NAC2 are configured for continuous mode. NAC3 and NAC4 are
configured for sense follow mode. SW2-5 is set to generate a sync pulse on the
continuous circuits.
Figure 45: Switch settings
SW1 SW2
1234
5
6
7
8
ON
1234
5
6
7
8
Security
In this application, 24 VDC is converted to 12 VDC for use with security devices.
