SHALLOW WELL
INSTALLATION

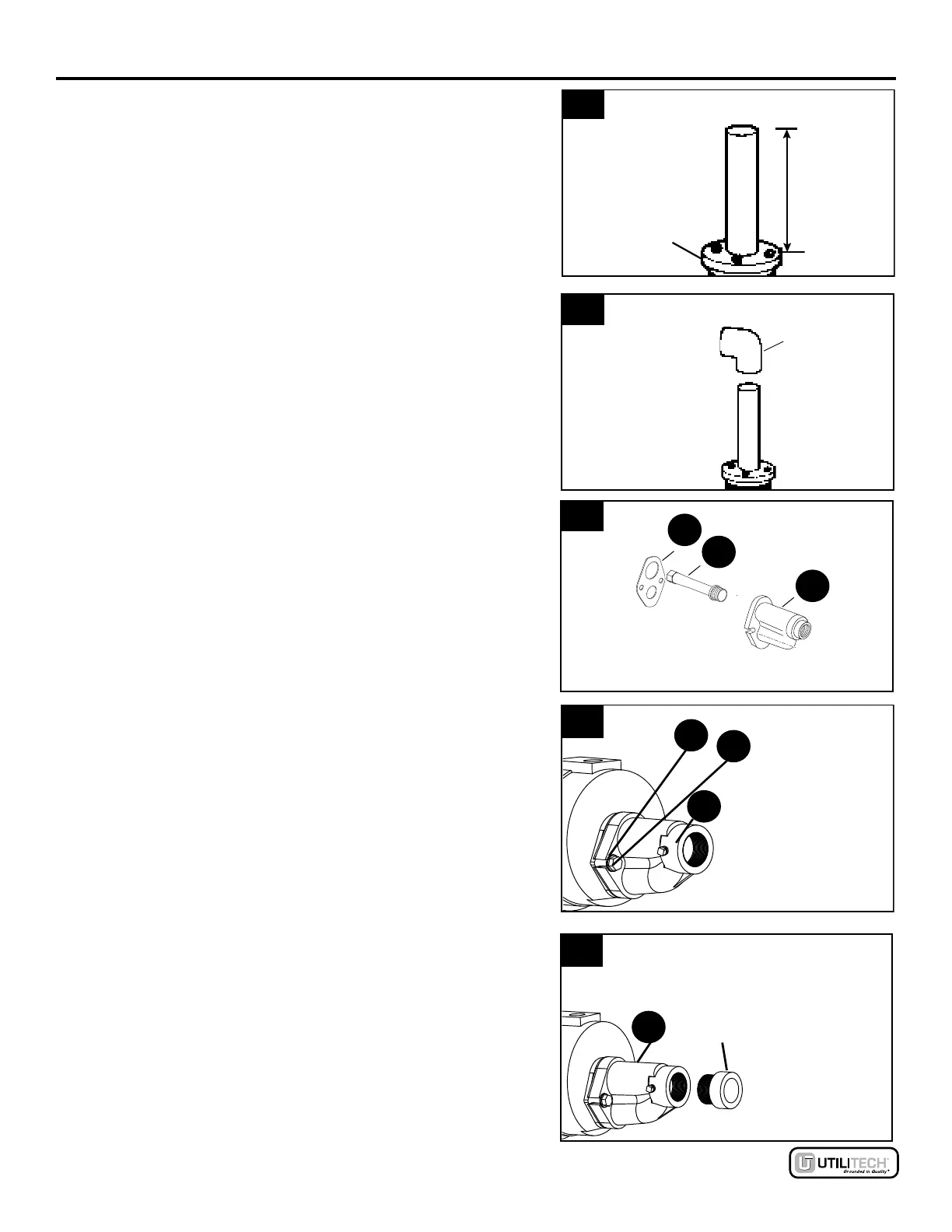

4. Remove pipe clamp and slide well seal (not included)
over rigid PVC pipe and onto well casing. Position
assembly so that 12 in. of rigid PVC pipe protrude
from well seal. Using wrench, turn bolts on well seal
clockwise until rubber gaskets are tight against well
casing and rigid PVC pipe.
5. Using a 2-step PVC system, attach a 1 in. PVC
elbow (not included) onto the rigid PVC pipe extending
from the well seal.
4
5
6. Open ejector kit.
Thread shorter venturi tube (C) into
ejector (B) until snug. Place gasket (F) over venturi
tube so that openings in gasket line up with openings
in ejector.
6
8. W
rap thread tape (not included) around the threads of
a 1-1/4 in. male PVC adapter (not included). Thread
the adapter into the front of ejector (B).
6
Lowes.com
Approx.
12 in.
W
ell
Seal
PVC Elbow
1-1/4 in.
Male
PVC Adapter
8
B
C
F
B
7.
Slide bolts (G) through at washers (H), then through
the bolt openings on either
through the gasket (F) and bolt
pump. Tighten bolts securely.
side of the ejector (B),
ejector to front of the
7
B
G
H
