Water Source
Outlet Inlet
Vertical
STOP
4
115 V GFCI
protected
receptacle
Outlet Hose
Water
Discharge
Water
Reinforced
inlet hose must
be 6 ft. or less
3
Outlet Inlet
Water Source
2

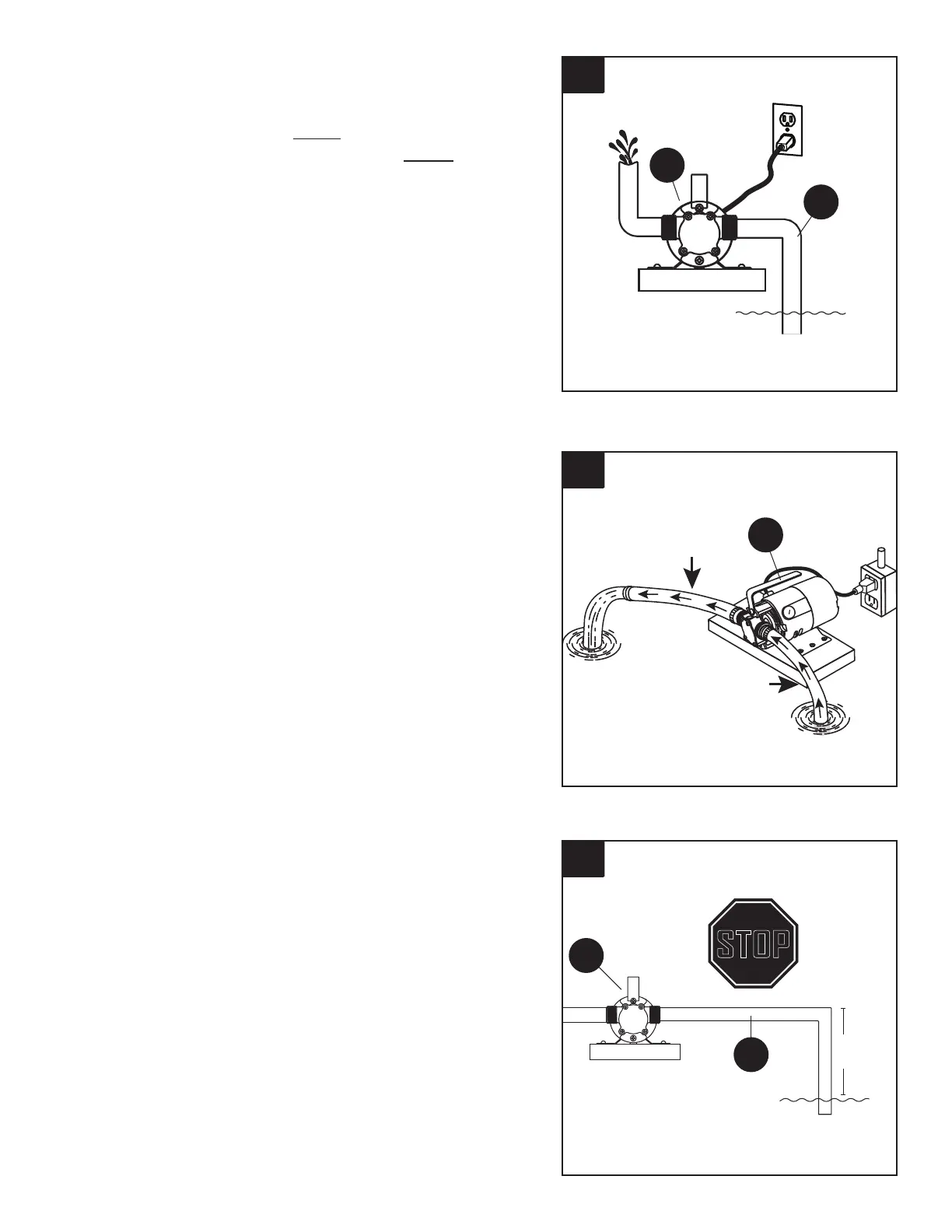

3. Turn on pump (A) by plugging the cord into a 115 volt,
60 Hz grounded A/C outlet protected by a ground-fault
circuit-interruptor (GFCI). If the outlet hose is restricted
or raised, pump (A) will deliver less water.
A
4. If pump (A) does not start to pump water within 30
seconds, unplug and re-check the installation and
plumbing as follows.
- Check to be sure pump (A) is located so that the water
source is within reach of 6 ft. inlet hose (B).
- Check to be sure all inlet connections are air and water-
tight and inlet hose (B) is as short as possible.
- Check to be sure inlet hose (B) is below the surface of
the water source.
- Check to be sure the outlet hose is less than 25 ft. in
length and is above the surface of the outlet water.
- Then repeat steps 1 through 3.
A
B
2. Install a 5/8 in. outlet hose (not included) on the outlet
side of pump (A). Outlet hose should be as short as
possible and no longer than 25 ft.
Inlet hose (B) must reach below the surface of the
water and the outlet hose must be kept above water.
A
B
