NEW CONSTRUCTION INSTALLATION INSTRUCTIONS (Continued)

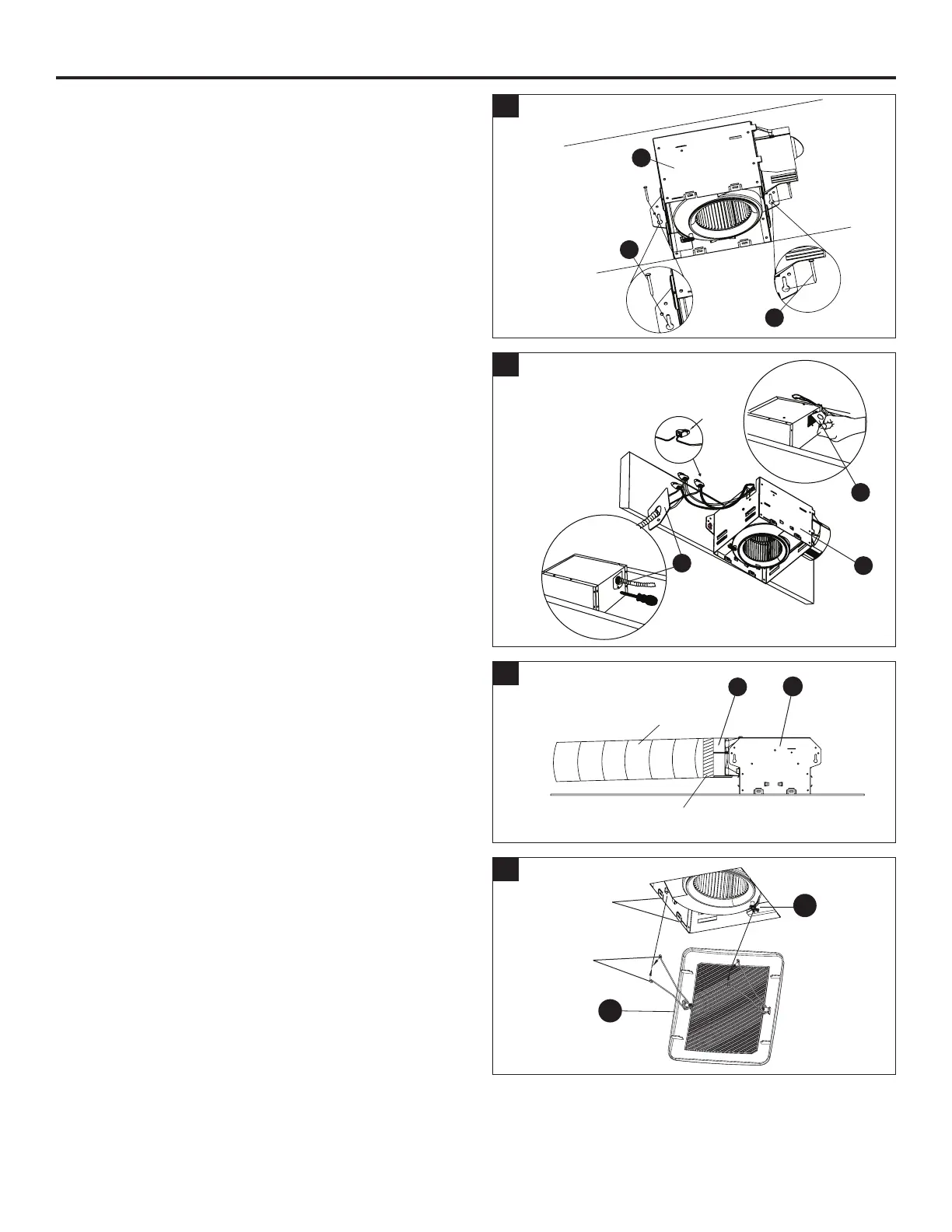

4. Mount the fan housing (A) to the joist or stud by insert-
ing wood screws (4.1) (not included) into the holes
indicated on the metal tabs of the fan housing (A).
Tighten the wood screws (4.1) until the fan housing (A)
is rmly secured to the joist.
4
A
4.1
4.1
5. Pull the house wires through the hole in the wiring box
cover (5.1). Using the quick connectors, connect the
house wiring from the wall switch to the fan housing (A).
14 AWG is the smallest conductor that should be used
for branch-circuit wiring. Please refer to the wiring
diagrams on page 4 to ensure proper wire connections
are made.
Carefully push the wire connections back into the wiring
box housing and reattach the wiring box cover (5.1).
CAUTION: If your electrical wires do not match the colors
listed, consult a licensed electrician to determine what
each house wire represents before connecting the fan.
5
Quick
connector
5.1
6. Connect a 4 in. circular duct to the duct connector (C) on
the fan housing (A), securing it with duct tape or a clamp.
Vent the duct to the outside.
Finish ceiling or wall work. The hole in the ceiling or
wall board should be aligned with the edge of the fan
housing (A).
6
4 in. Duc
t
Duct tape
or clamp
A
7. Attach the grille (B) by pinching the mounting springs and
inserting them into the narrow rectangular slots in the fan
housing (A).
Turn on the power source. Test the unit.
7
A
B
5.1
Ceiling or wall
5.1
Housing
slots
Mounting
springs
A
C
